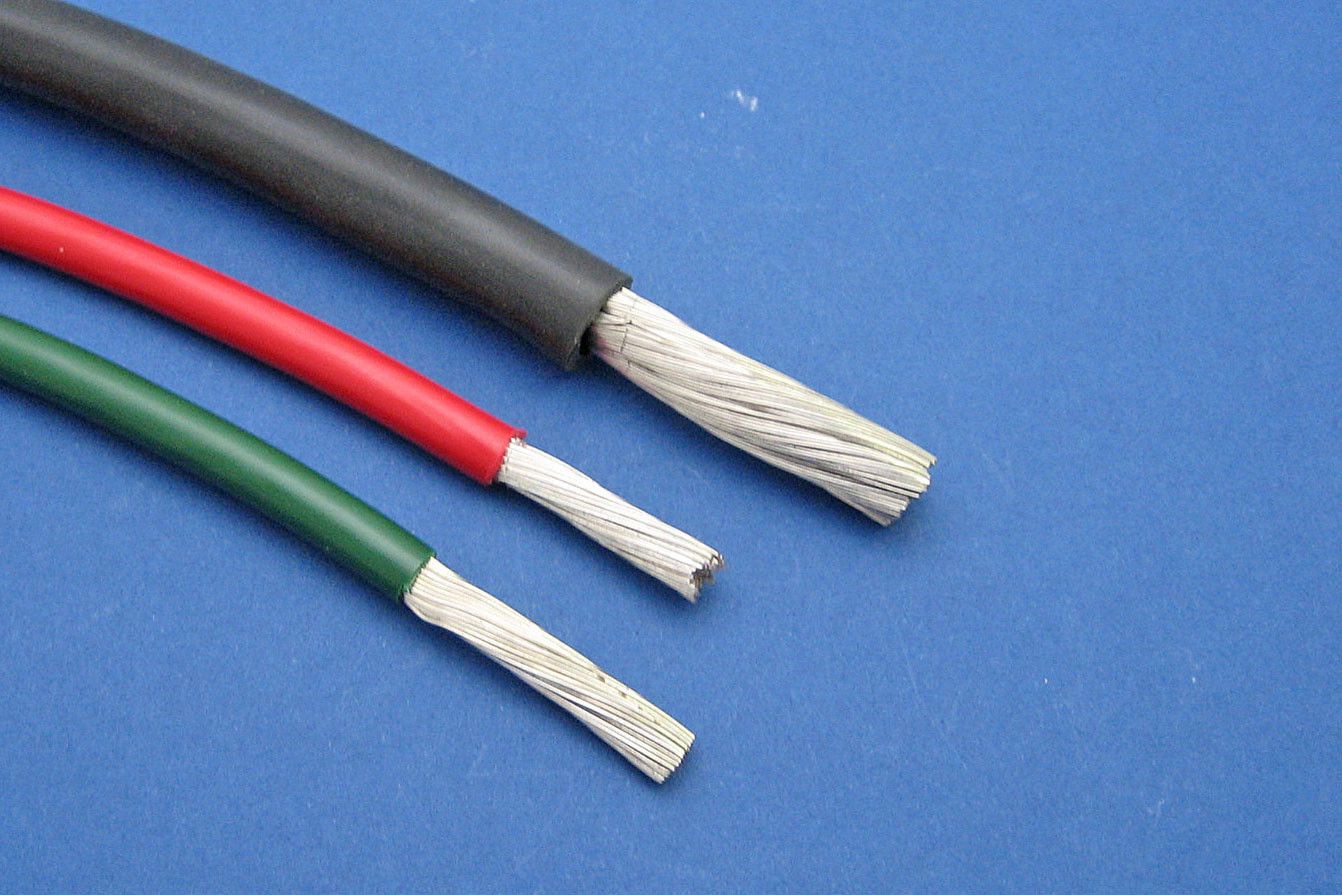

Tinned Copper Thin Wall Cable
This cable is as per standard thin wall cable except the copper conductors are tin plated, making them more suitable for marine and other corrosive environments. Cable details are given in the blue boxes below. For example 010901 has 21 strands of 0.3mm diameter tinned copper wire (21/0.3), has a conductor cross sectional area of 1.5mm², has a capacity of 21 Amps and its diameter including the insulation is 2.4mm.
Click on the link below for full cable data.
- Tinned copper conductors - PVC insulated
- Hard grade PVC insulation offers good resistance to abrasion and cut through
- For use at temperatures between -40 to 105 degC, with excursions to 120 degC
- Reduced insulation thickness gives savings in weight and volume
- Good resistance to petrol, diesel, oil and diluted acid
- Suitable for 12V and 24V systems (60V max)
- Manufactured in accordance with ISO6722:2006 (class B)
Downloads
Options
Product
Size
Price
In Stock
Qty
21/0.30, 1.5mm², 21A, cable OD 2.4mm
Product No: 010901
per metre
£0.63
exc VAT
In Stock
50m reel
£24.97
exc VAT
In Stock
35/0.30, 2.5mm², 29A, cable OD 3.0mm
Product No: 010902
per metre
£0.91
exc VAT
In Stock
50m reel
£36.61
exc VAT
In Stock
56/0.30, 4.0mm², 39A, cable OD 3.7mm
Product No: 010903
per metre
£1.37
exc VAT
In Stock
30m roll
£35.39
exc VAT
In Stock
84/0.30, 6.0mm², 50A, cable OD 4.3mm
Product No: 010904
per metre
£1.83
exc VAT
In Stock
30m reel
£49.06
exc VAT
In Stock
80/0.40, 10.0mm², 70A, cable OD 6.0mm
Product No: 010905
per metre
£2.96
exc VAT
In Stock
30m reel
£83.10
exc VAT
In Stock
