Cable Eyelets

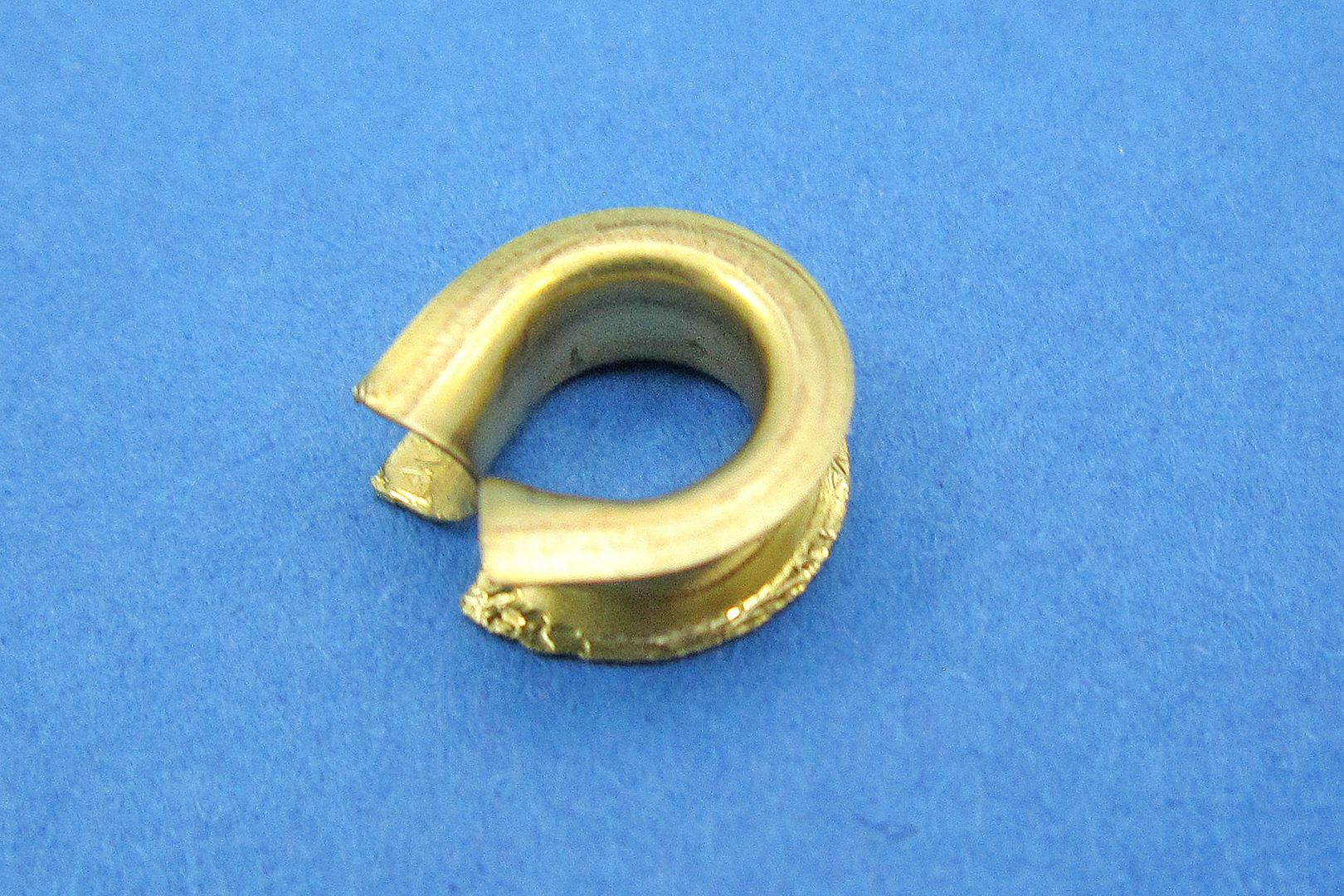

Cable eyelets that can be used to create an old style ring connector. Similar to Ross Courtney connectors that were used on Rolls Royces and Bentleys.
The process to fit them is:

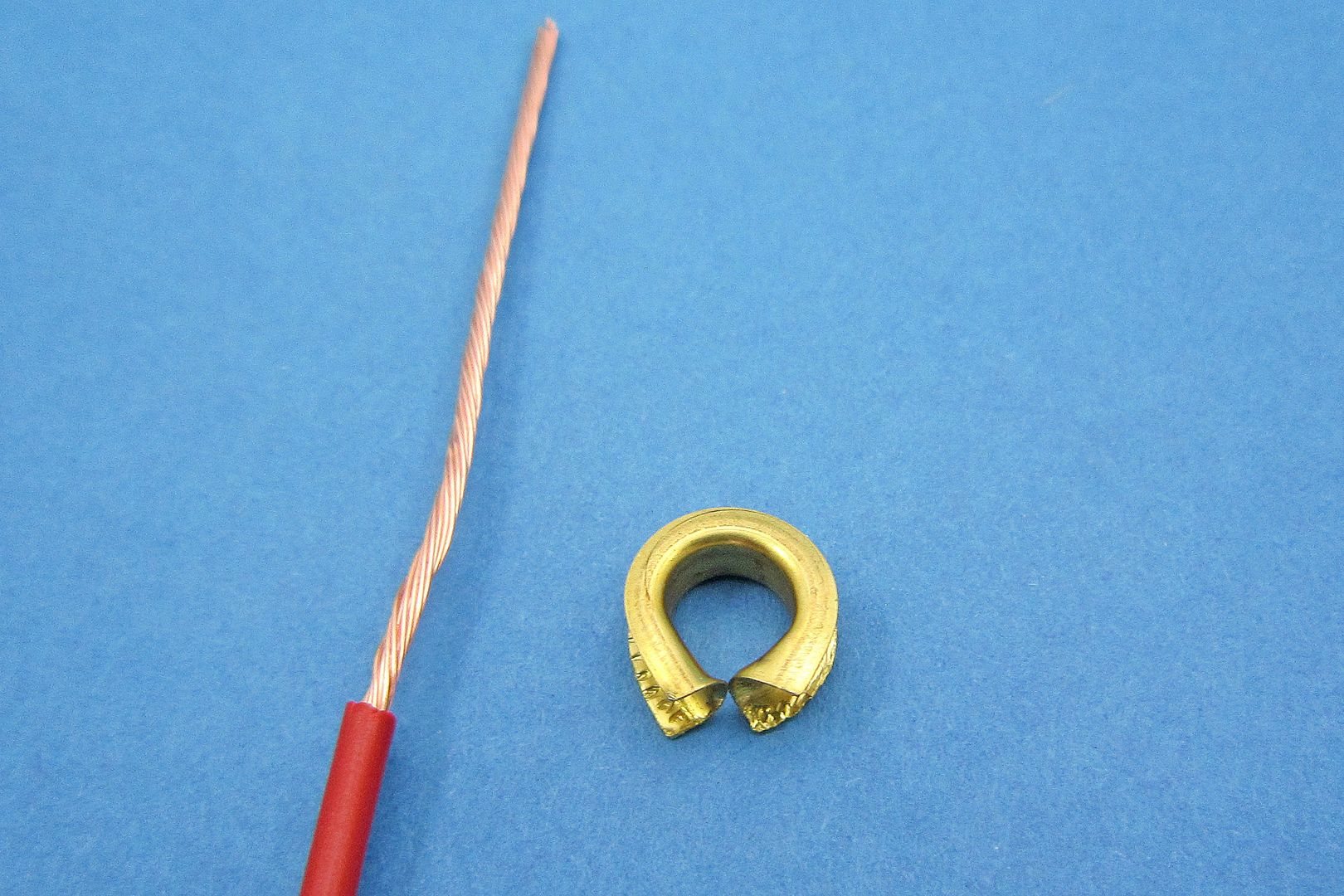

- Strip off plenty of insulation from the cable

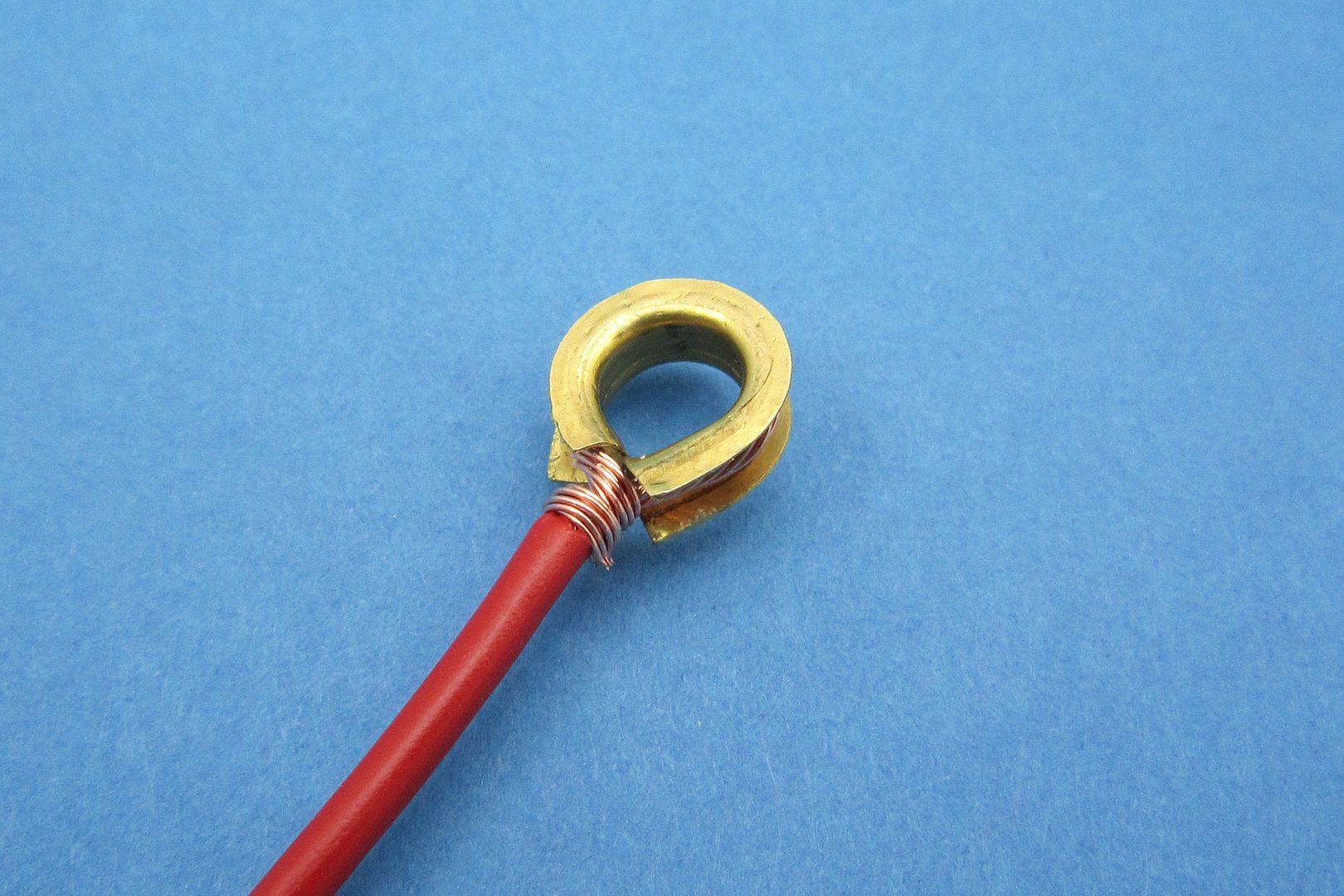

- Wrap cable around eyelet

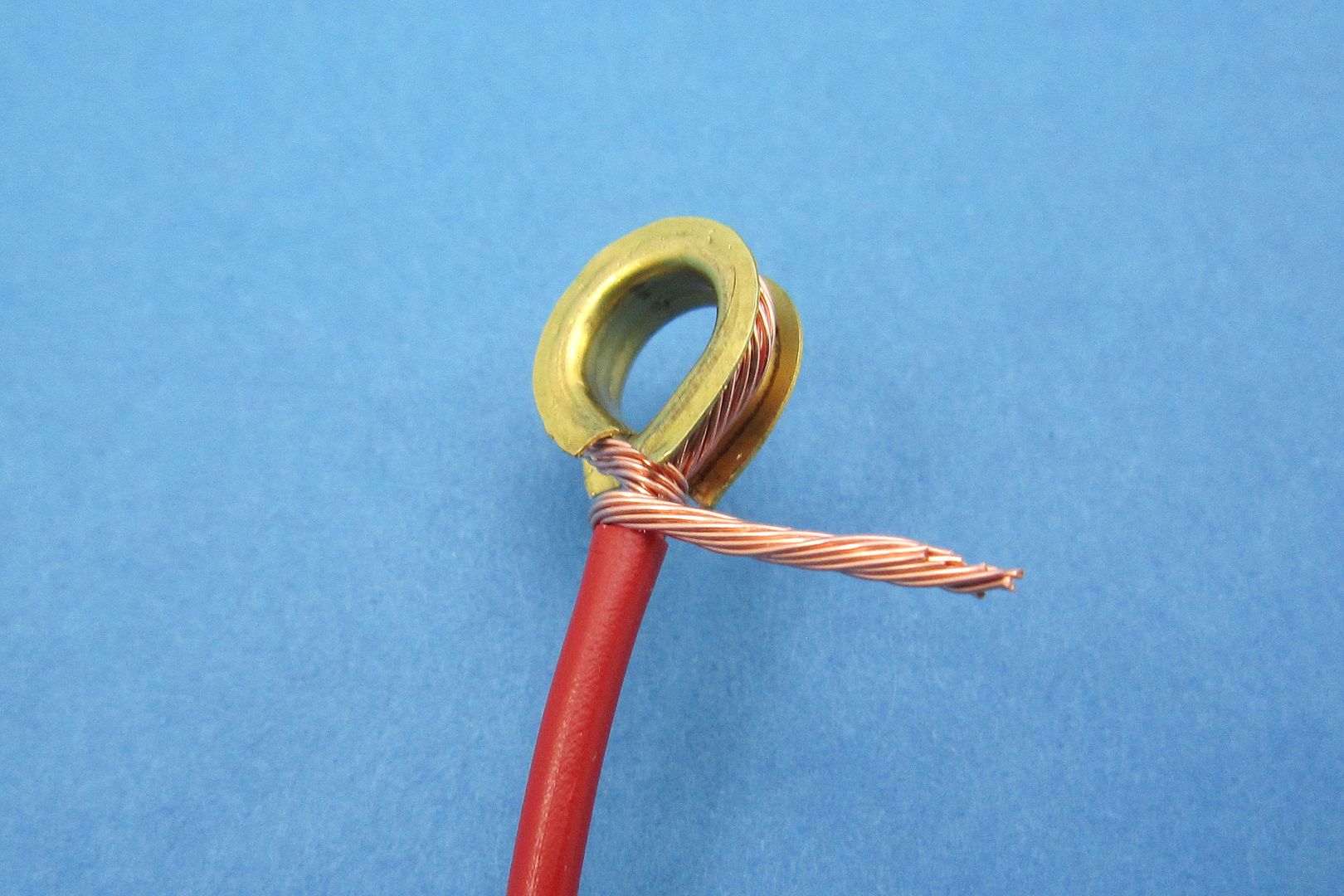

- Twist cable around incoming cable
- Cut off excess cable after twisting

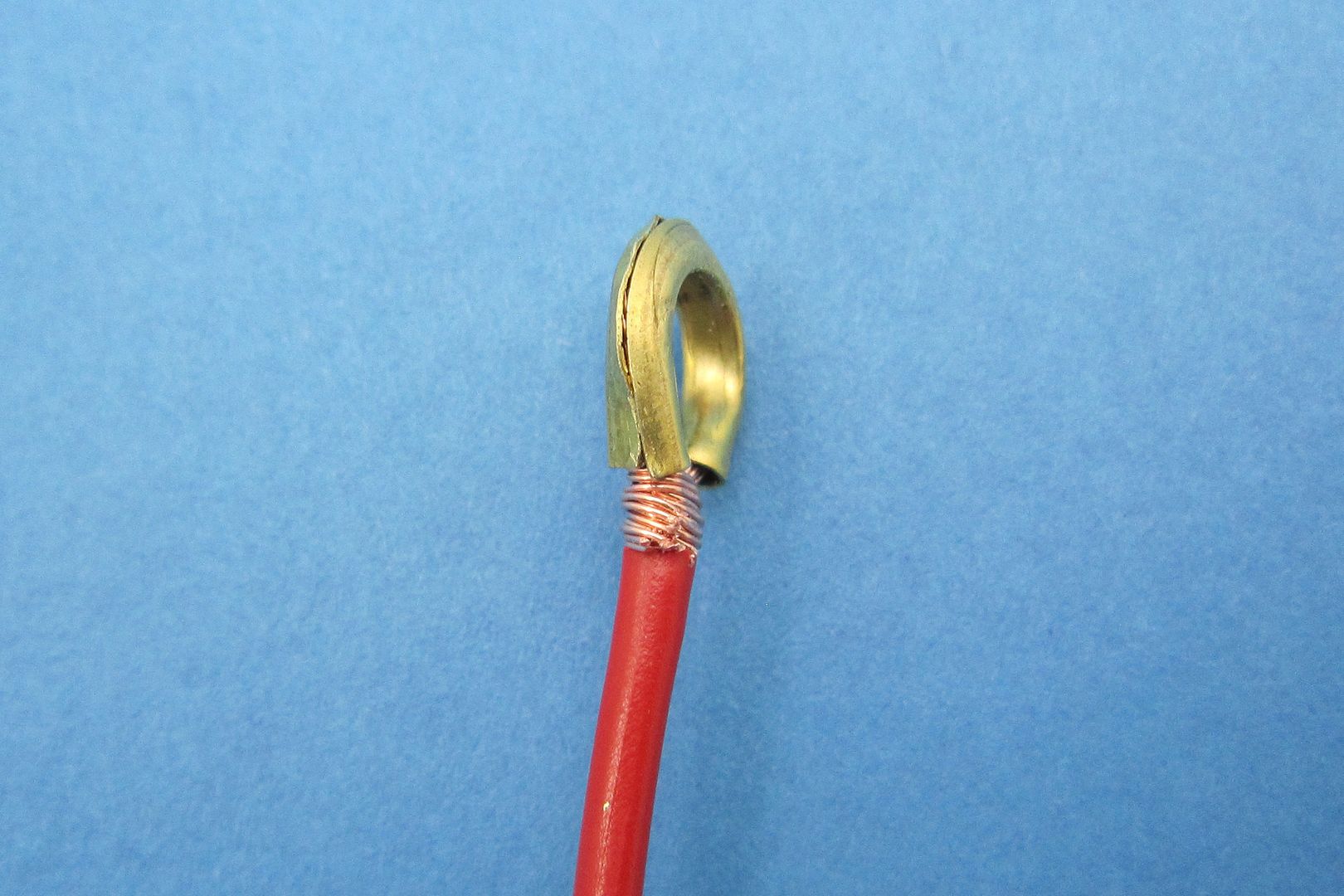

- Squash crimp terminal to trap cable

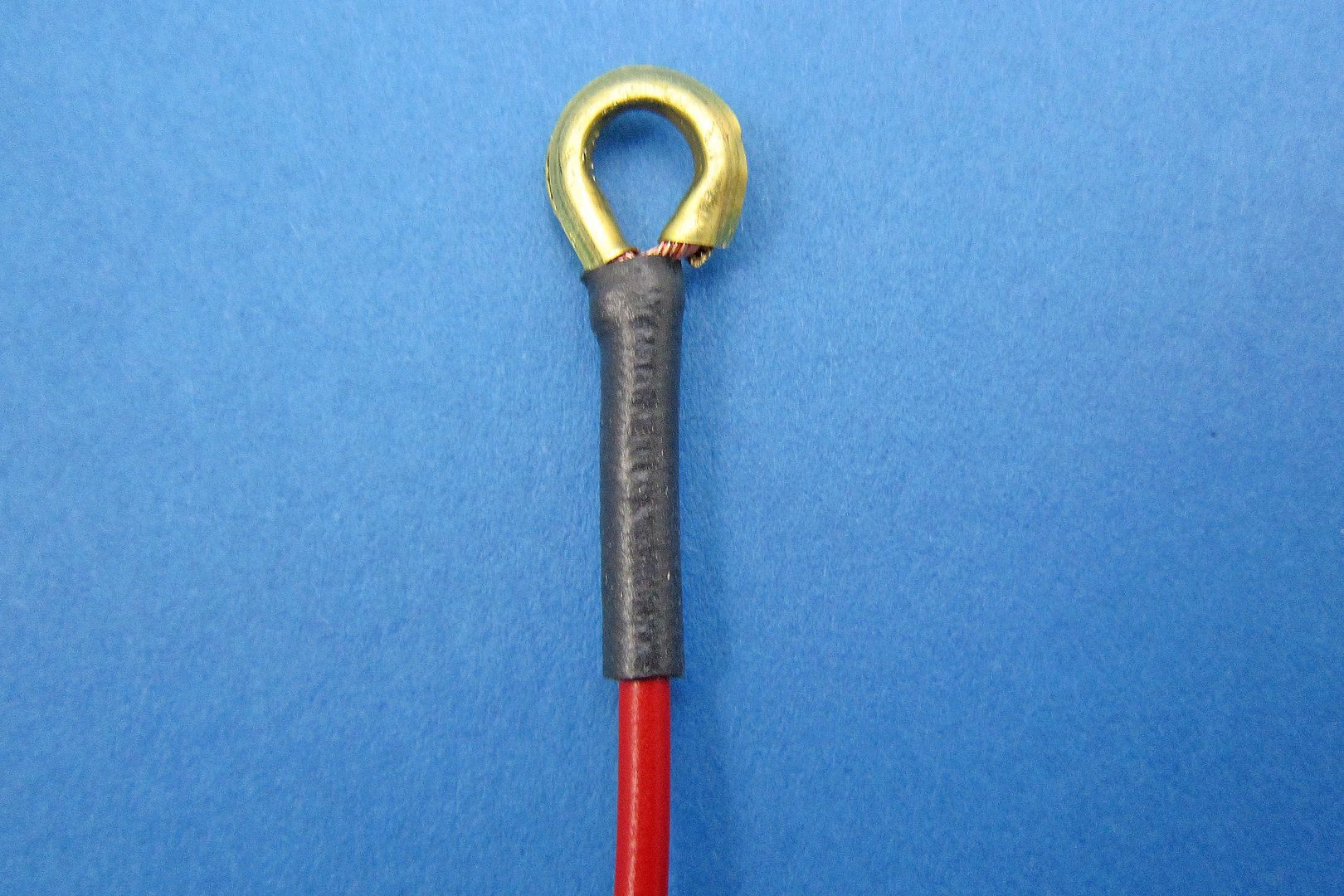

- Use heatshrink or neoprene sleeves to tidy finished eyelet
Downloads
Options
Product
Size
Price
In Stock
Qty
Cable Eyelet - 4mm hole, max cable 2mm2.
Product No: 031501
Pack of 10
£1.84
exc VAT
In Stock
Pack of 50
£8.28
exc VAT
In Stock
Cable Eyelet - 5mm hole, max cable 3mm2.
Product No: 031502
Pack of 10
£1.84
exc VAT
In Stock
Pack of 50
£8.28
exc VAT
In Stock
Cable Eyelet - 6mm hole, max cable 2mm2.
Product No: 031503
Pack of 10
£1.84
exc VAT
In Stock
Pack of 50
£8.28
exc VAT
In Stock
Cable Eyelet - 8mm hole, max cable 2mm2.
Product No: 031504
Pack of 10
£2.02
exc VAT
In Stock
Pack of 50
£9.05
exc VAT
In Stock
