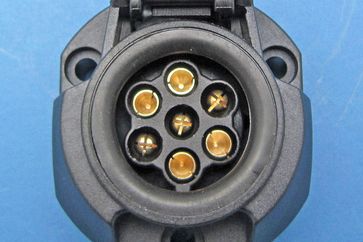

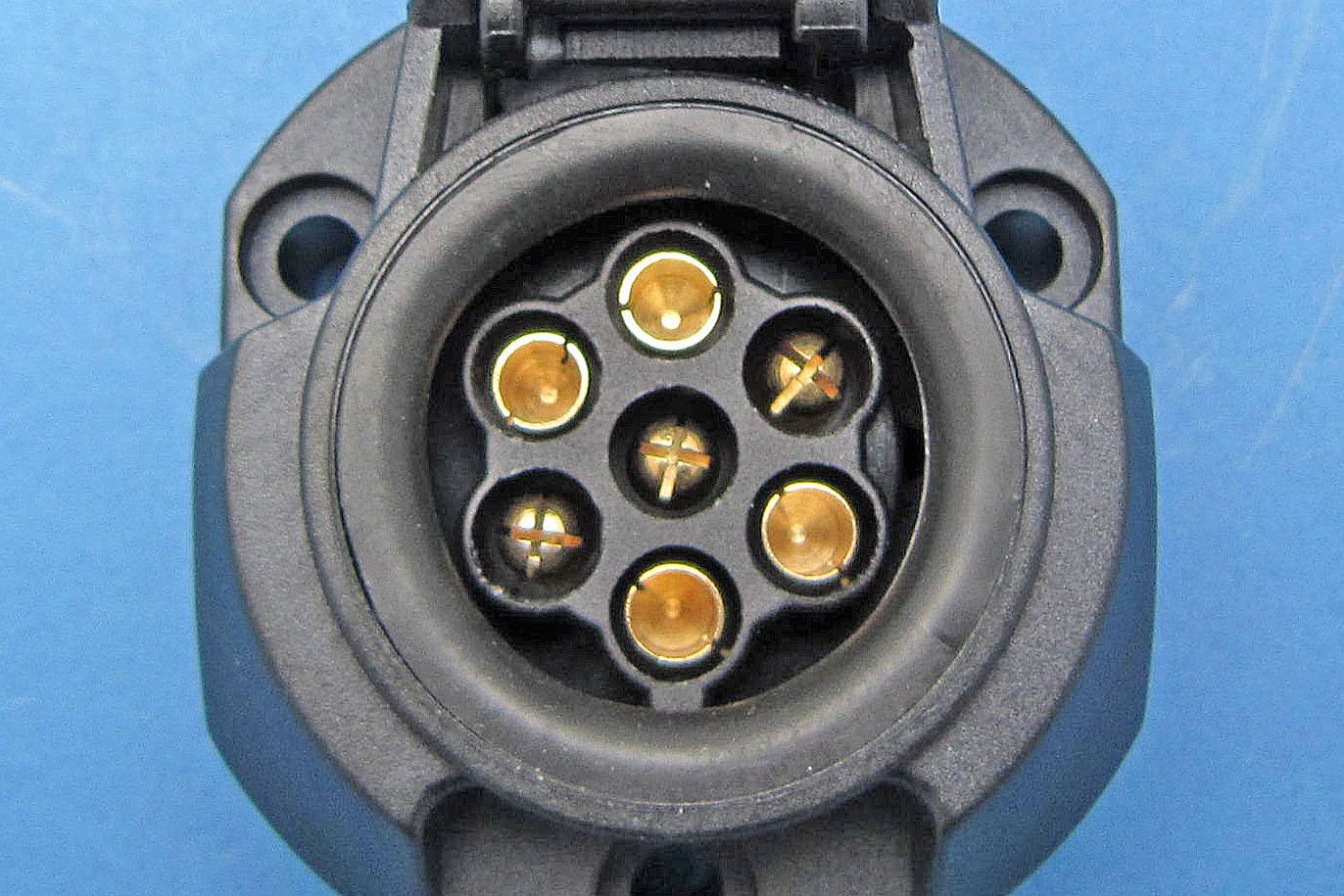

12N Plastic Socket

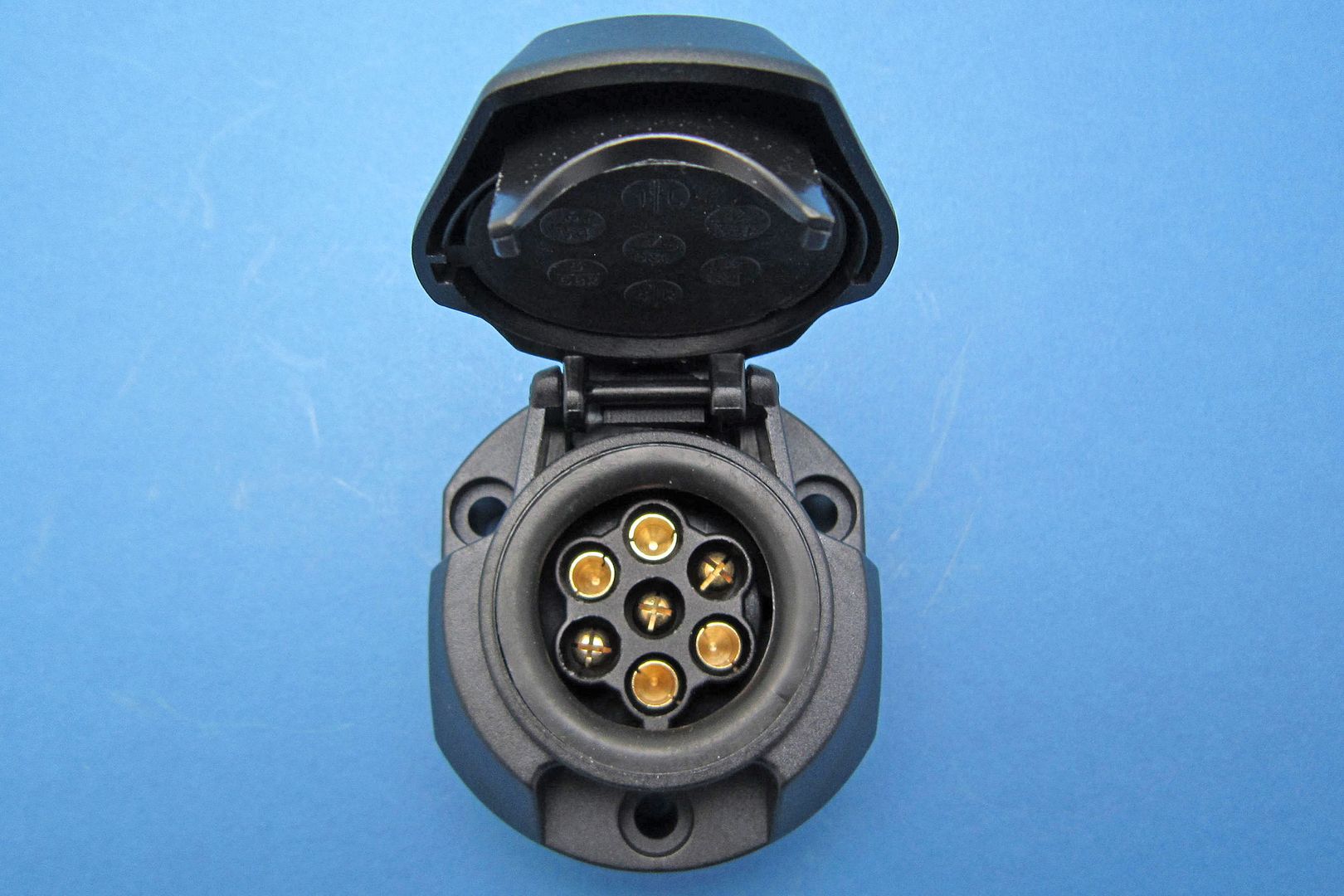

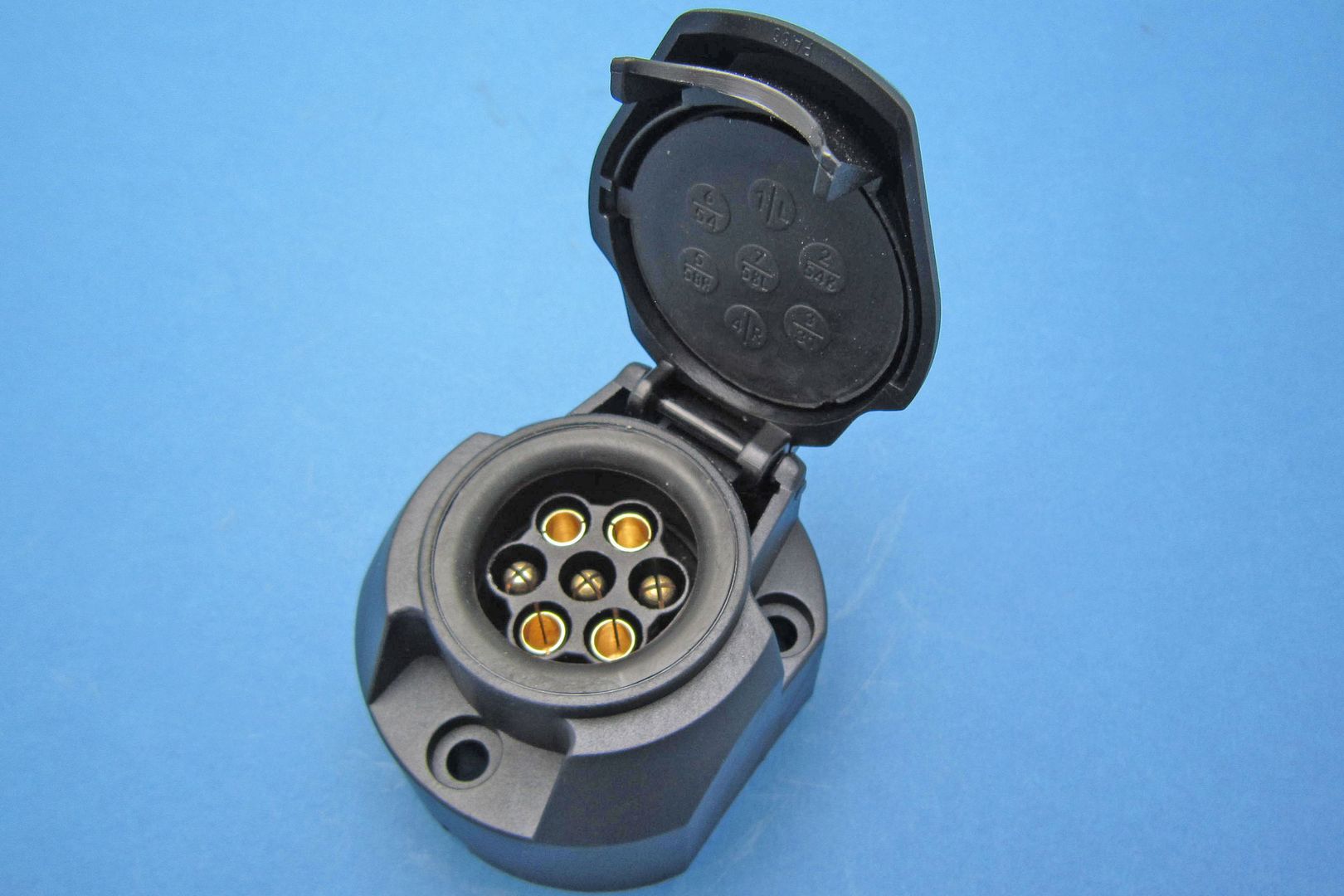

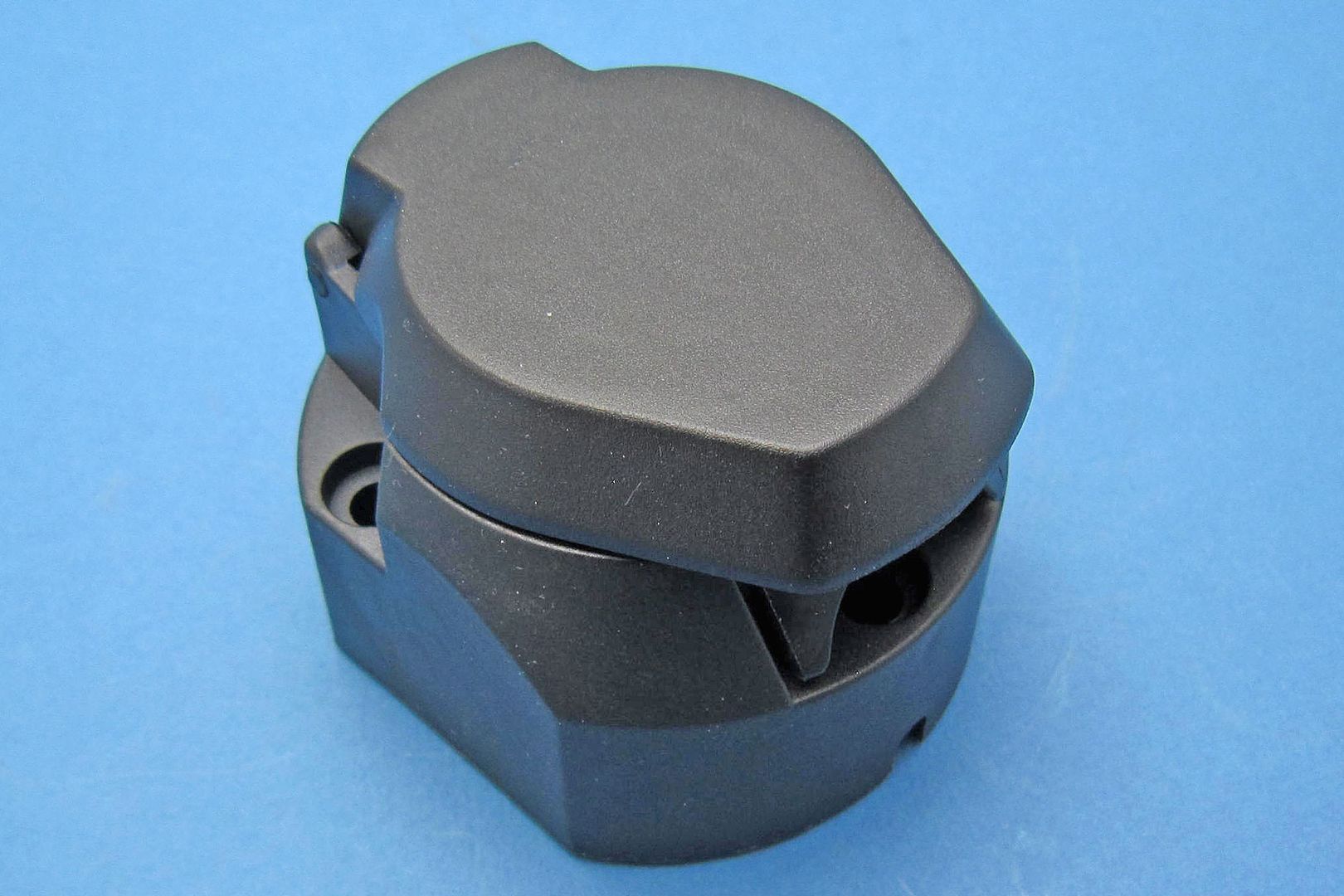

12N plastic socket with spring loaded cap, that covers connectors once trailer plug has been removed. Cap has rubber gasket incorporated to help seal out moisture. 12N plugs and sockets are the normal type for trailer lights etc.

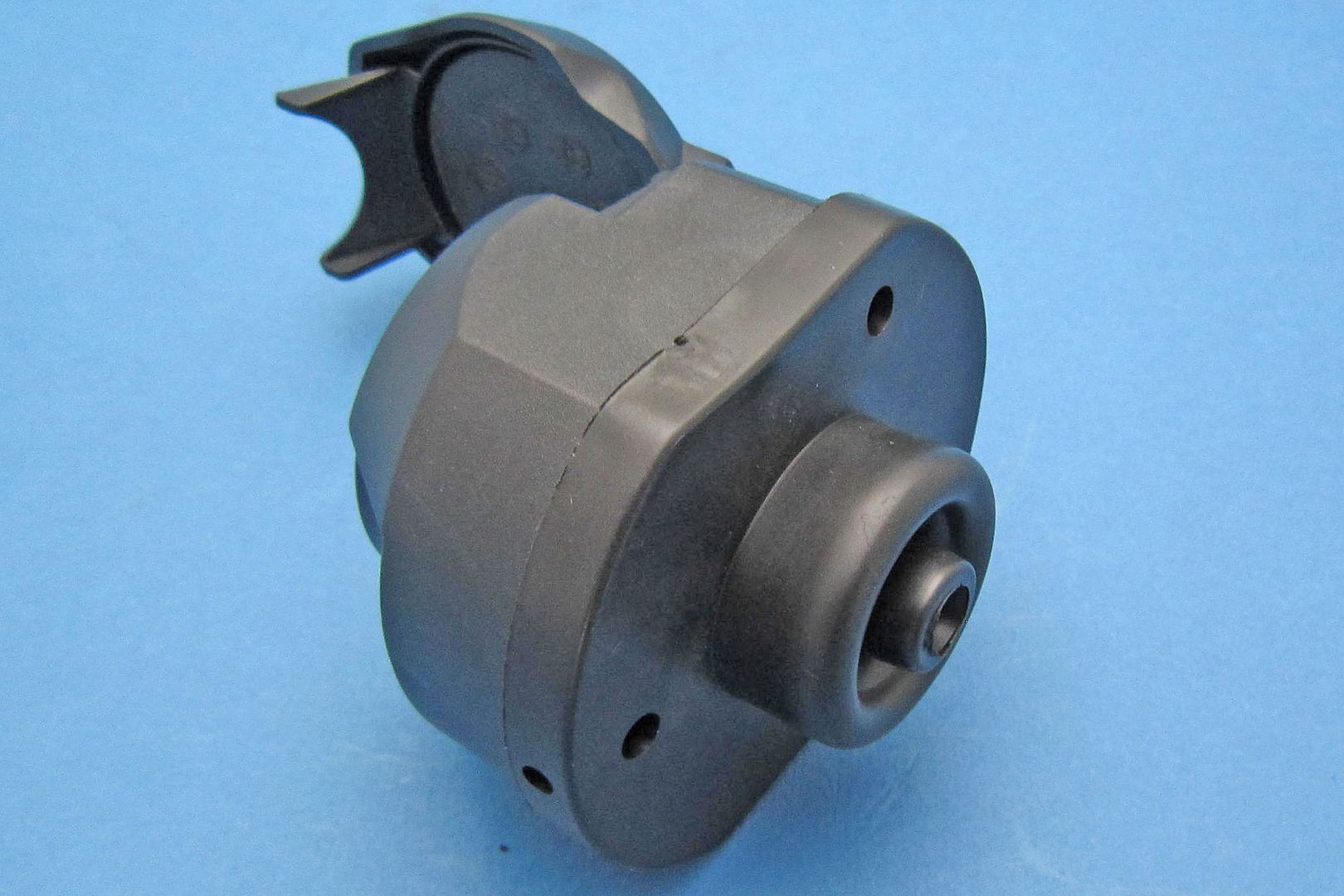

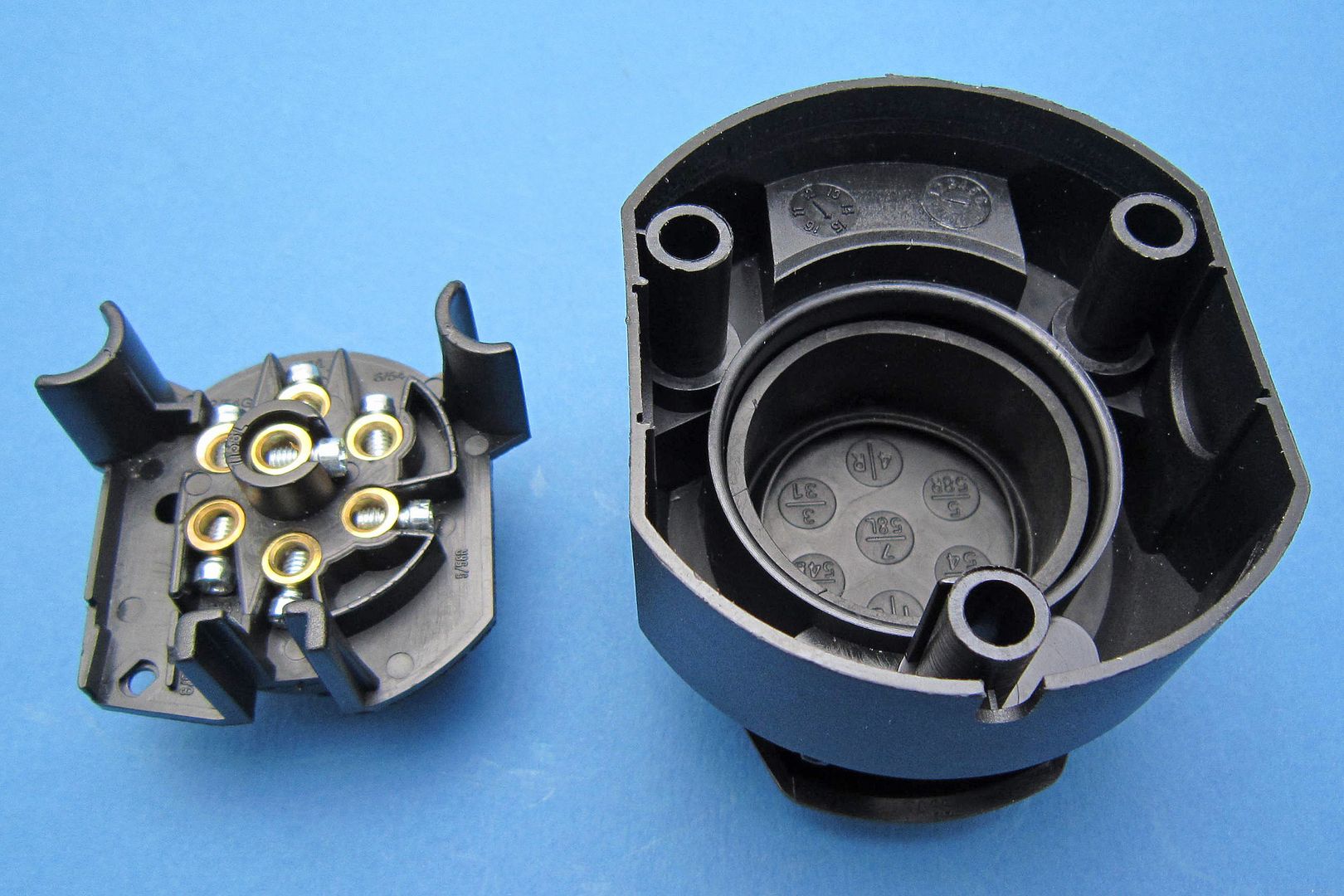

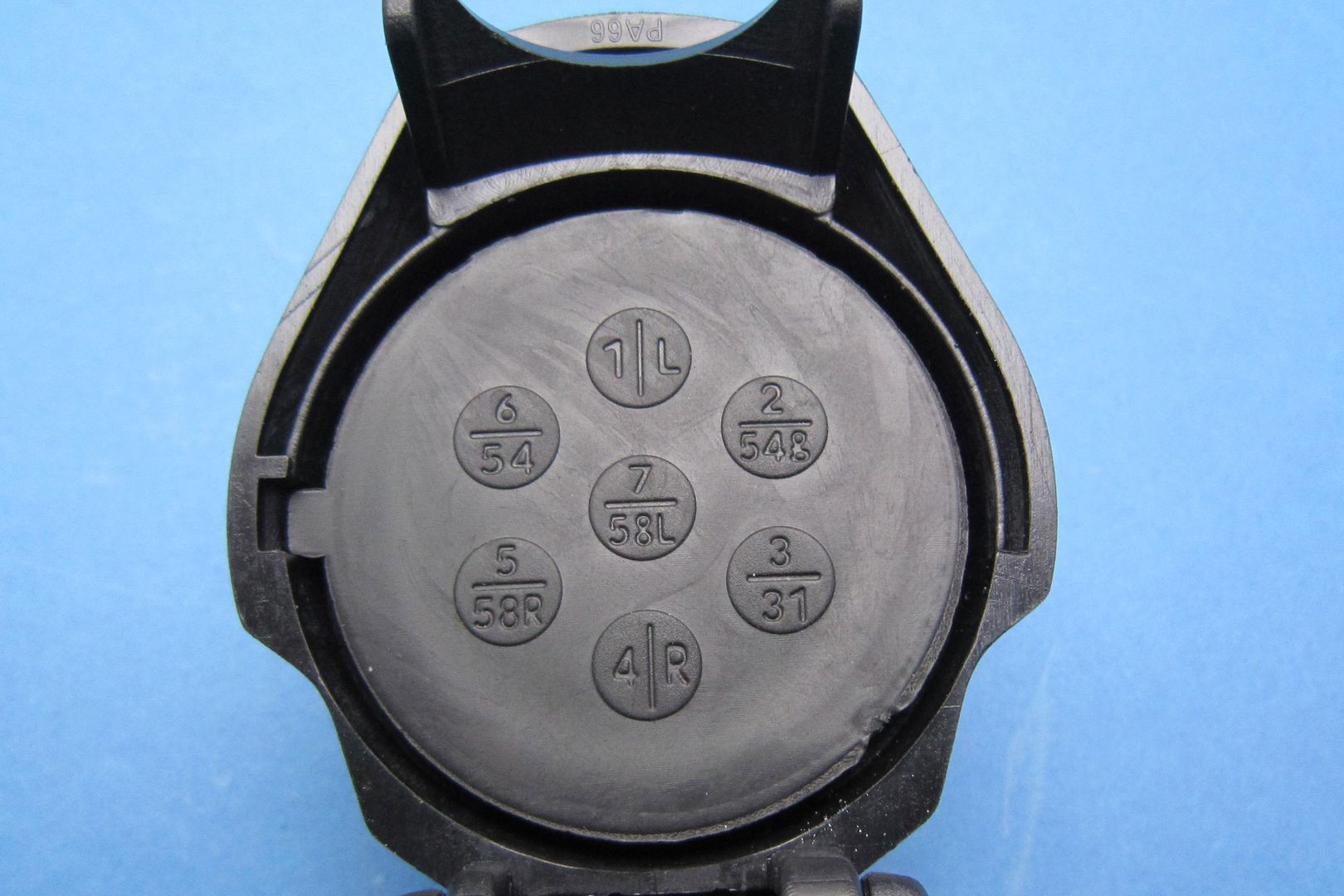

Socket disassembles to aid wiring with pin numbers shown on cap gasket. Use gasket 230303 to seal rear face of socket to vehicle (Needs to be purchased separately). The last photo shows the gasket fitted on the socket.

Terminals connect as follows:

1. LH indicator lamp
2. Rear fog lamp
3. Earth
4. RH indicator lamp
5. RH tail/number plate lamp
6. Brake lights
7. LH tail/number plate lamp
