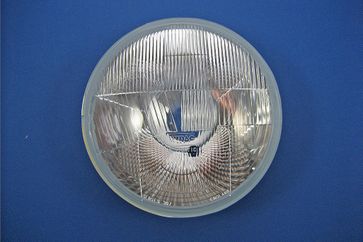

Wipac Quadoptic Light units

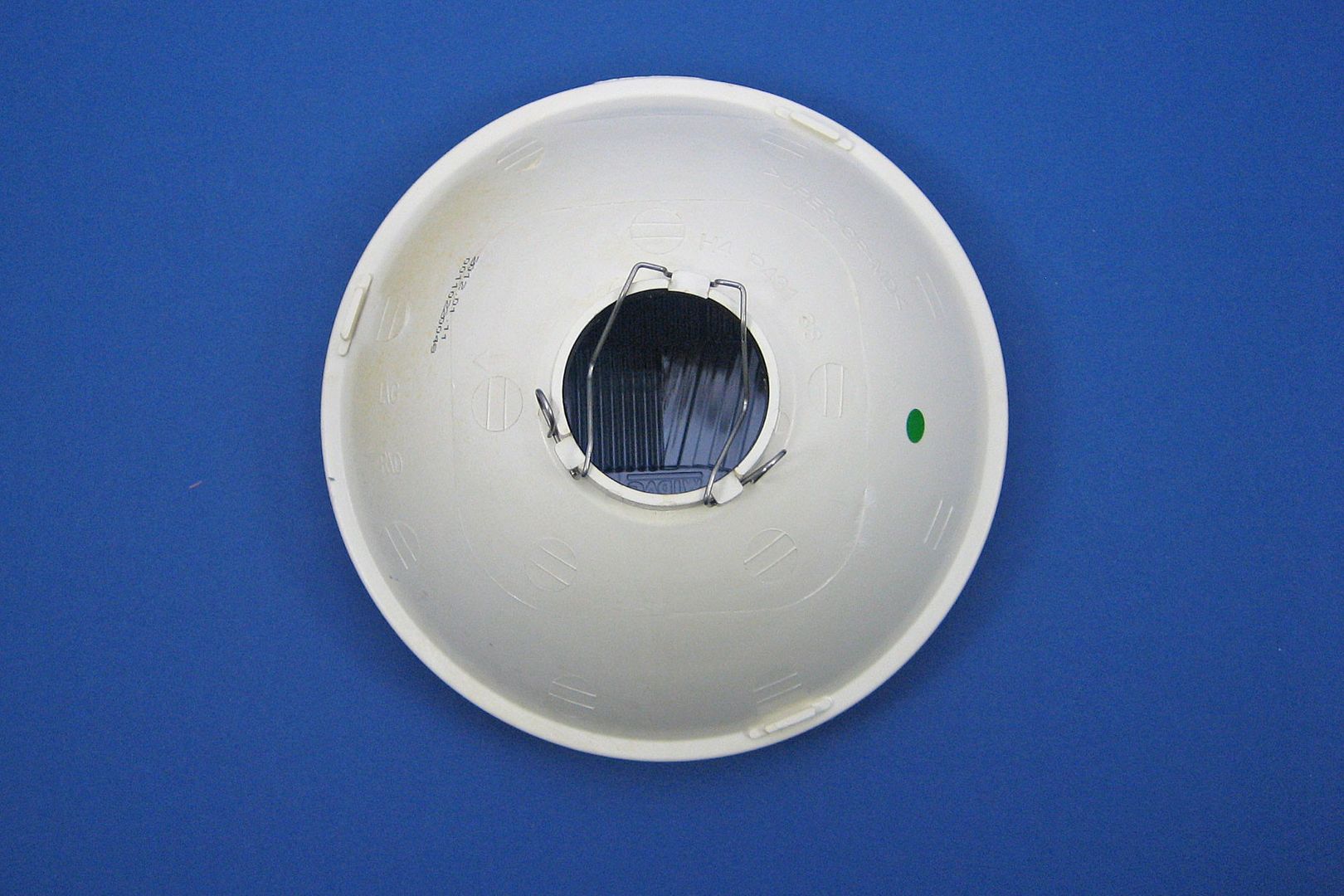

Without Pilot Hole

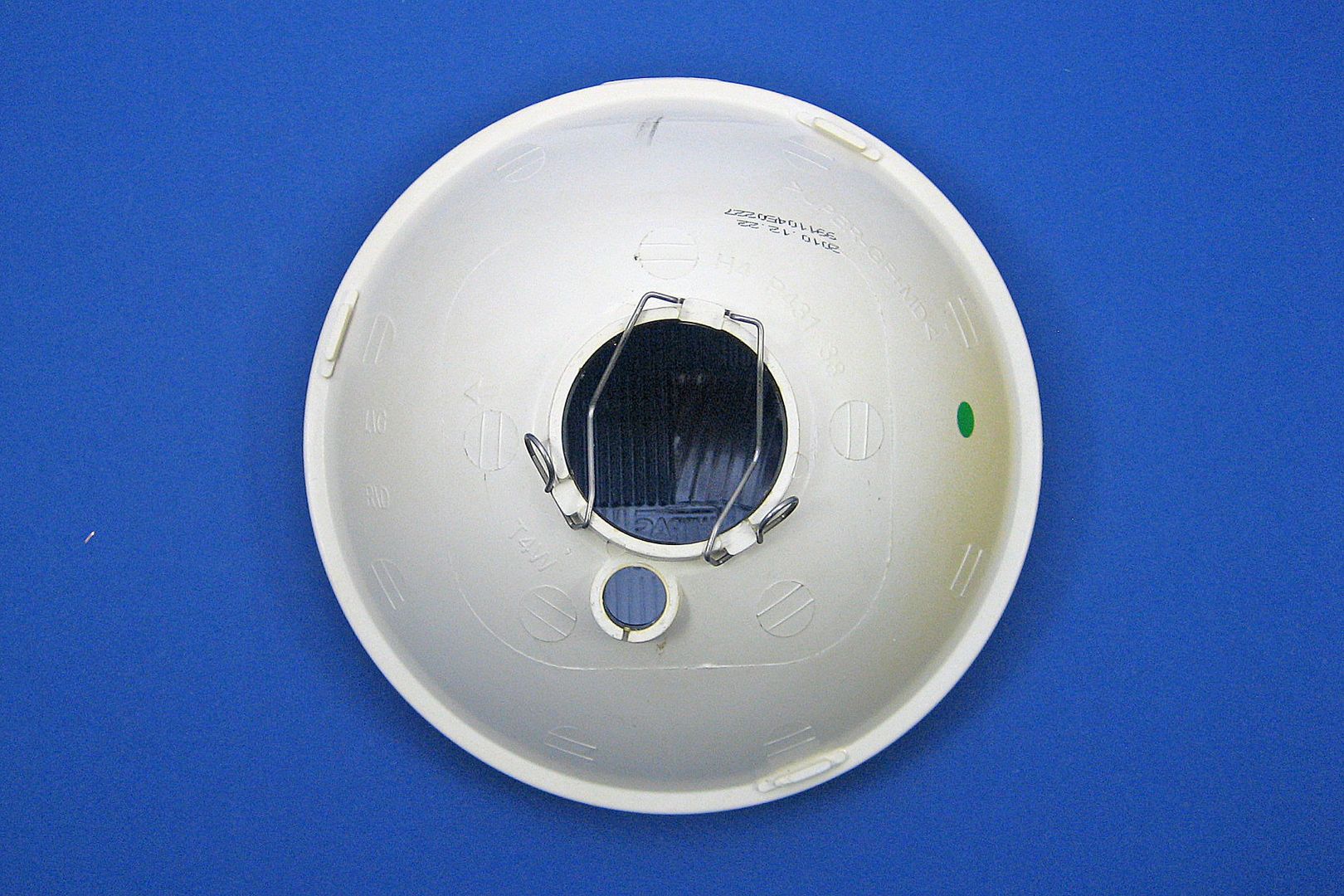

With Pilot Hole
Description

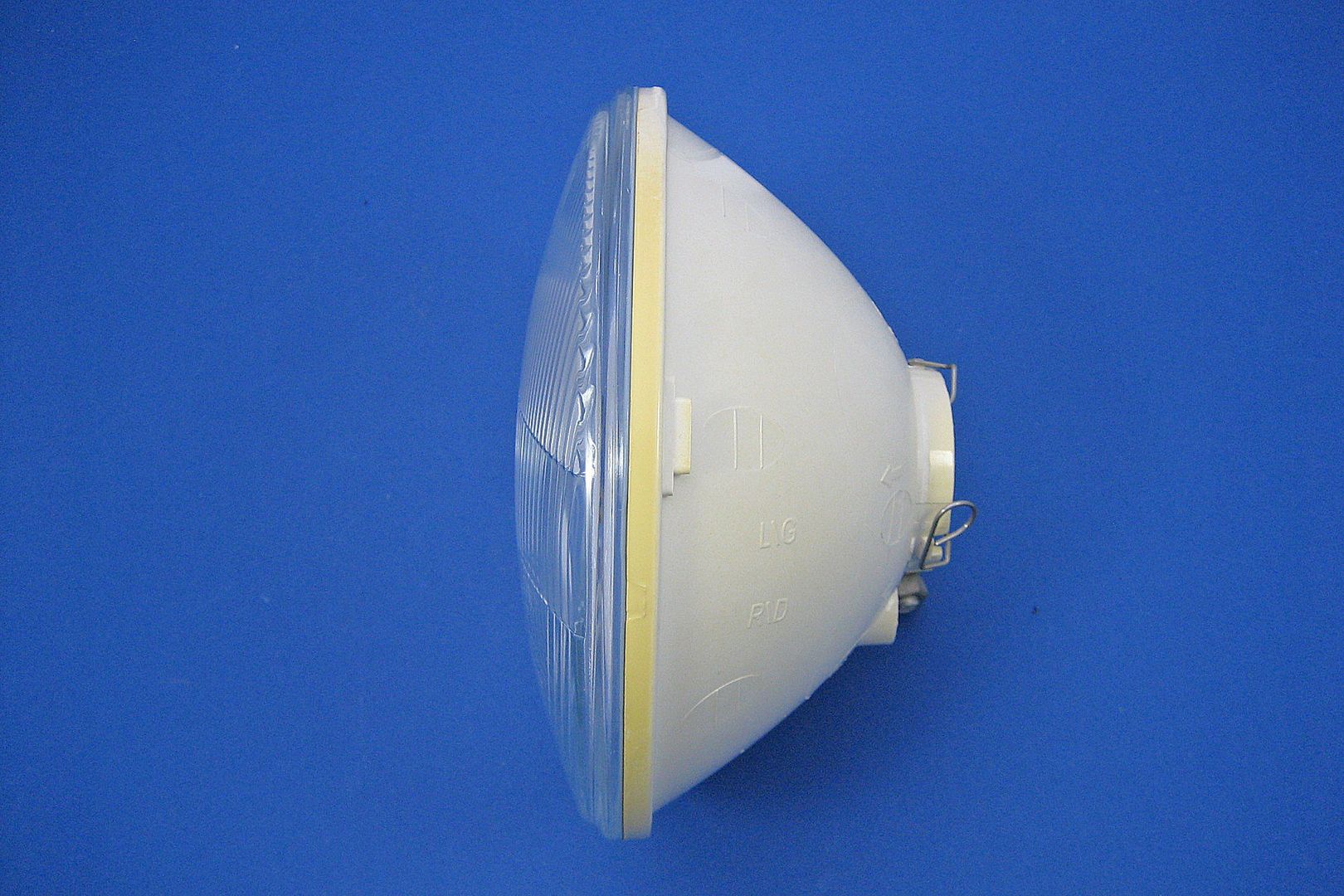

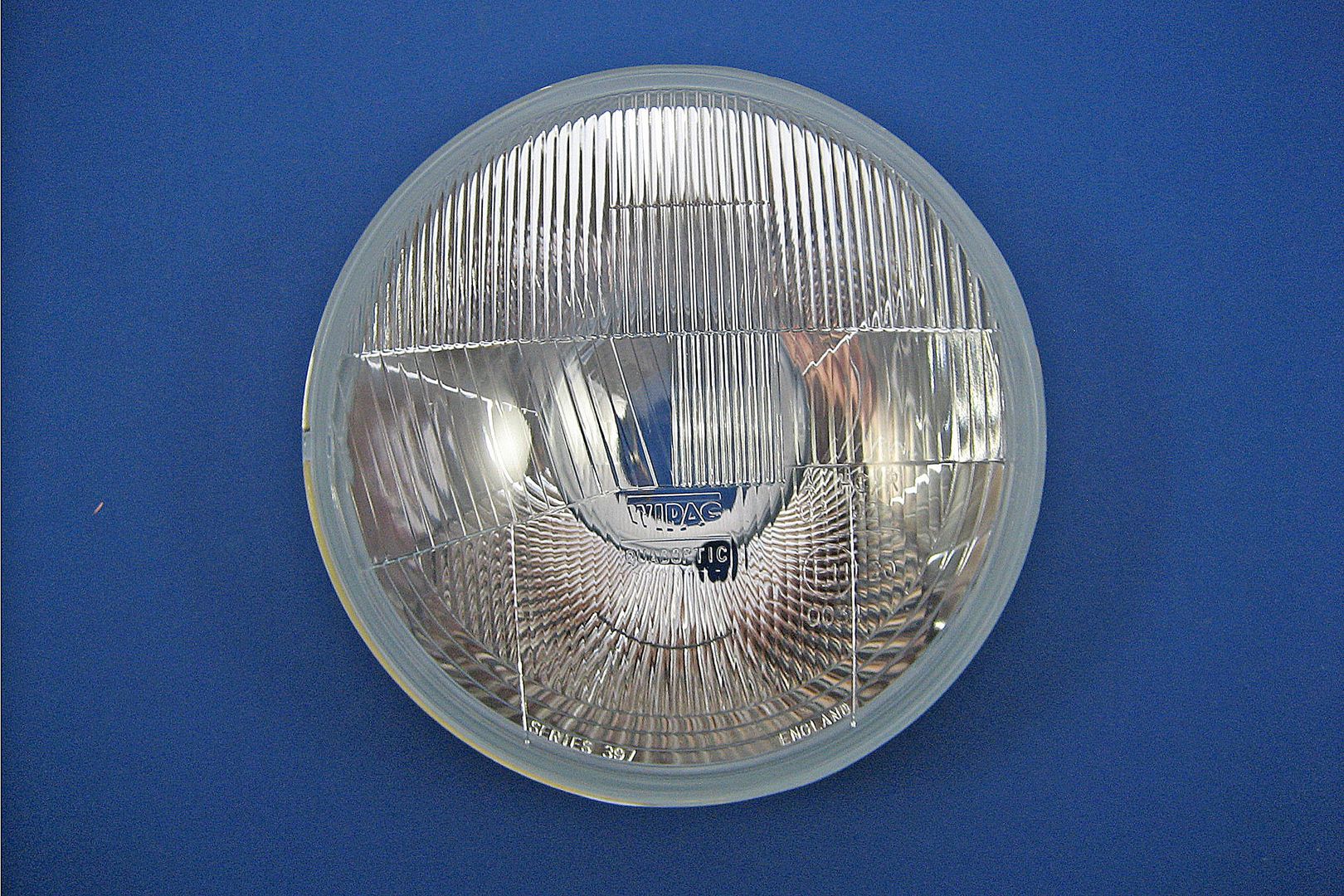

Wipac Quadoptic light units. A slightly cheaper range than the Lucas lamp units which consist of glass lenses with plastic reflectors available with or without hole (12mm diameter) for pilot light bulb holder. These units take a H4 P43T bulb (Not supplied). Available for UK use (dipping to the left) and for European use (dipping to the right). All units are E marked.
The required pilot light bulb holder is our part 132018 which requires a capless W2.1 x 9.5d type bulb and is connected via 2 x 6.3mm blade terminals.
Suitable connecting harness for units without pilot - 170201
Suitable connecting harness for units with pilot - 170204
