Willys Jeep

Description

12V Dynator to fit the Willys Jeep. It has an output of 65A compared to 20A of the original. Negative earth. Body diameter 4.5" (114.3mm), body length 210mm. Supplied fitted with 3.5" (89mm) pulley suitable for 16mm wide belt.

The distance between the front and rear lug is 184.5mm.

Two versions are available, depending upon which side of the vehicle the unit is fitted. (Both are also available in 6V)

  • Left hand side (when sitting in vehicle) or nearside  - LMDWIL001
  • Right hand side (when sitting in vehicle) or offside - LMDWIL002

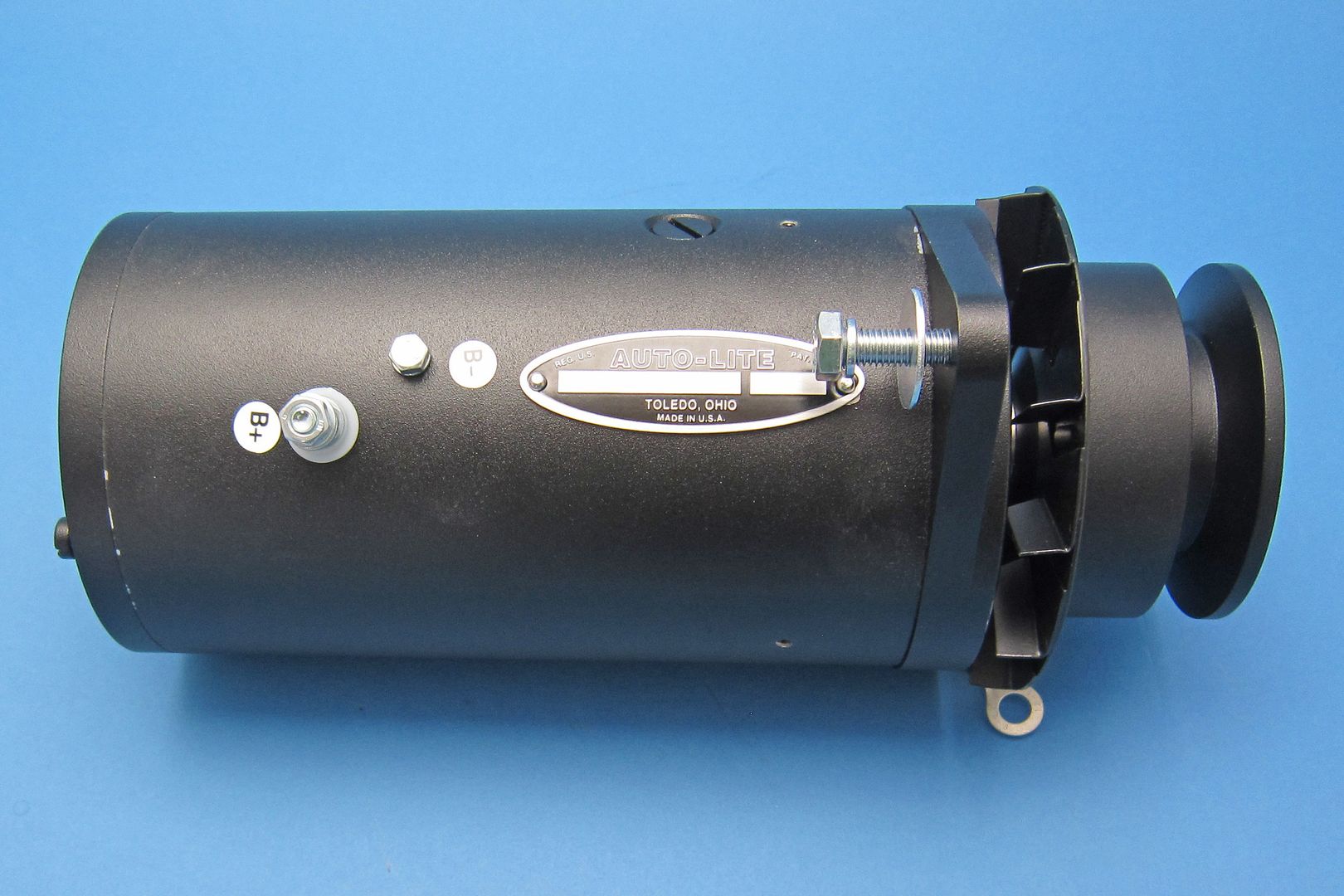

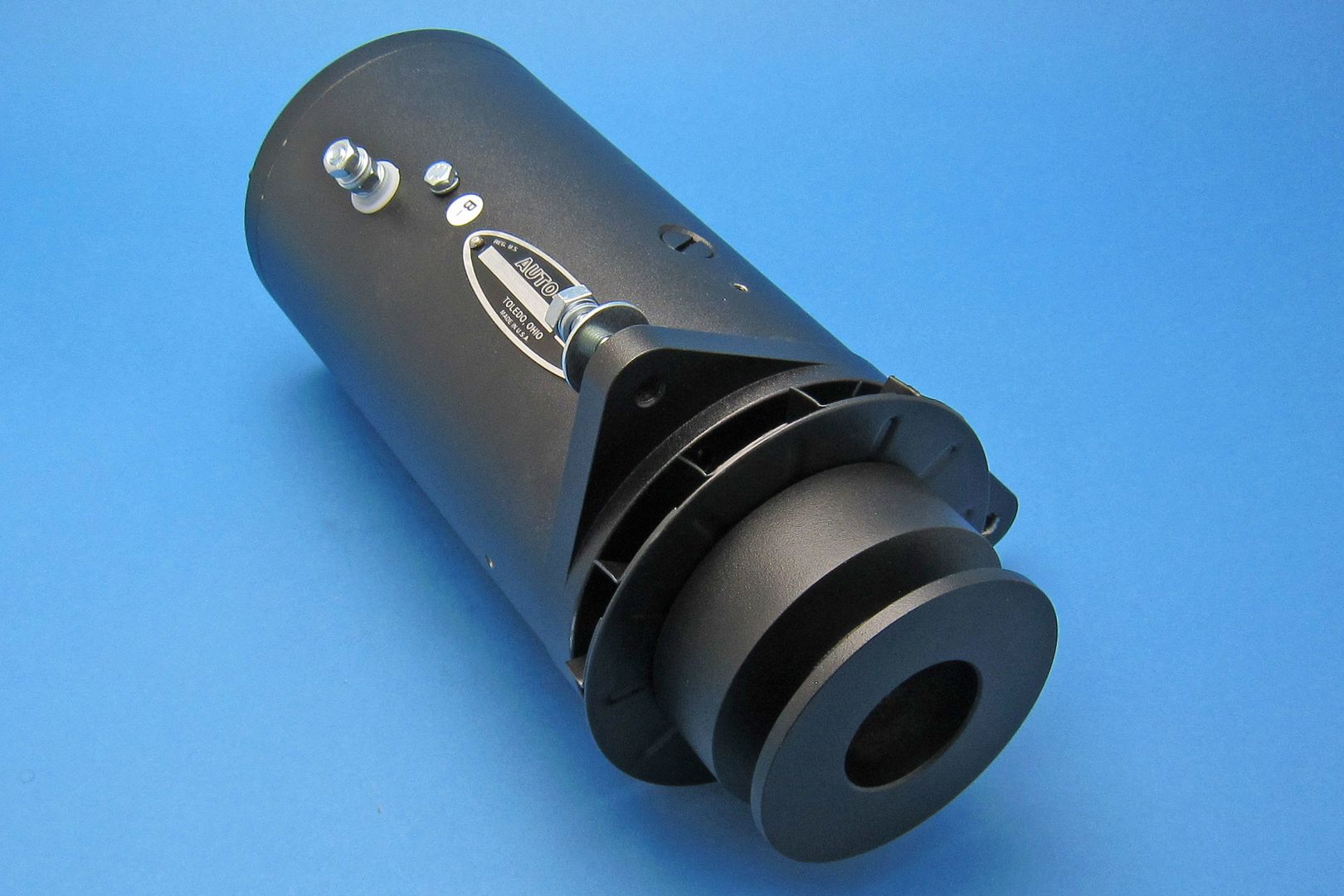

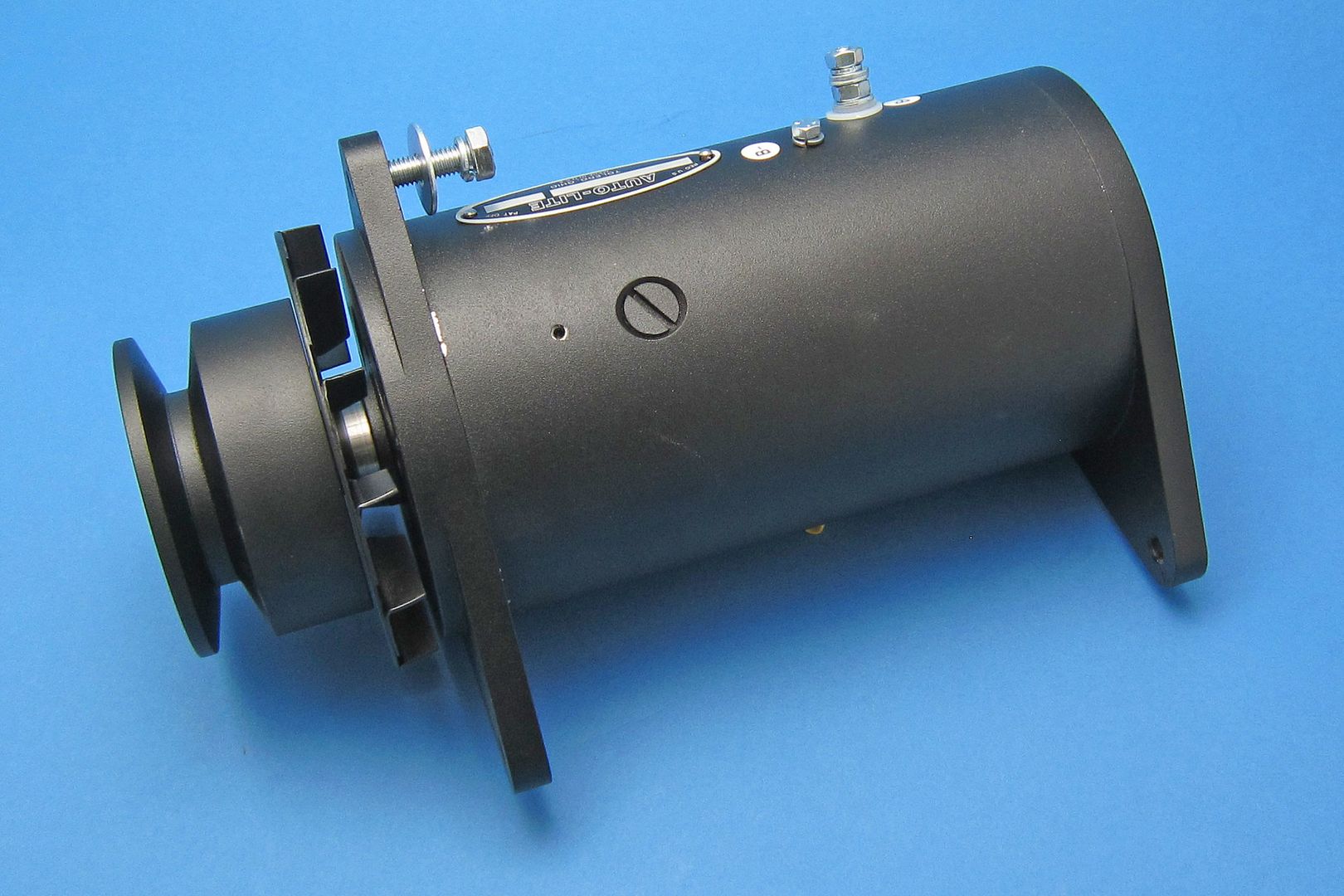

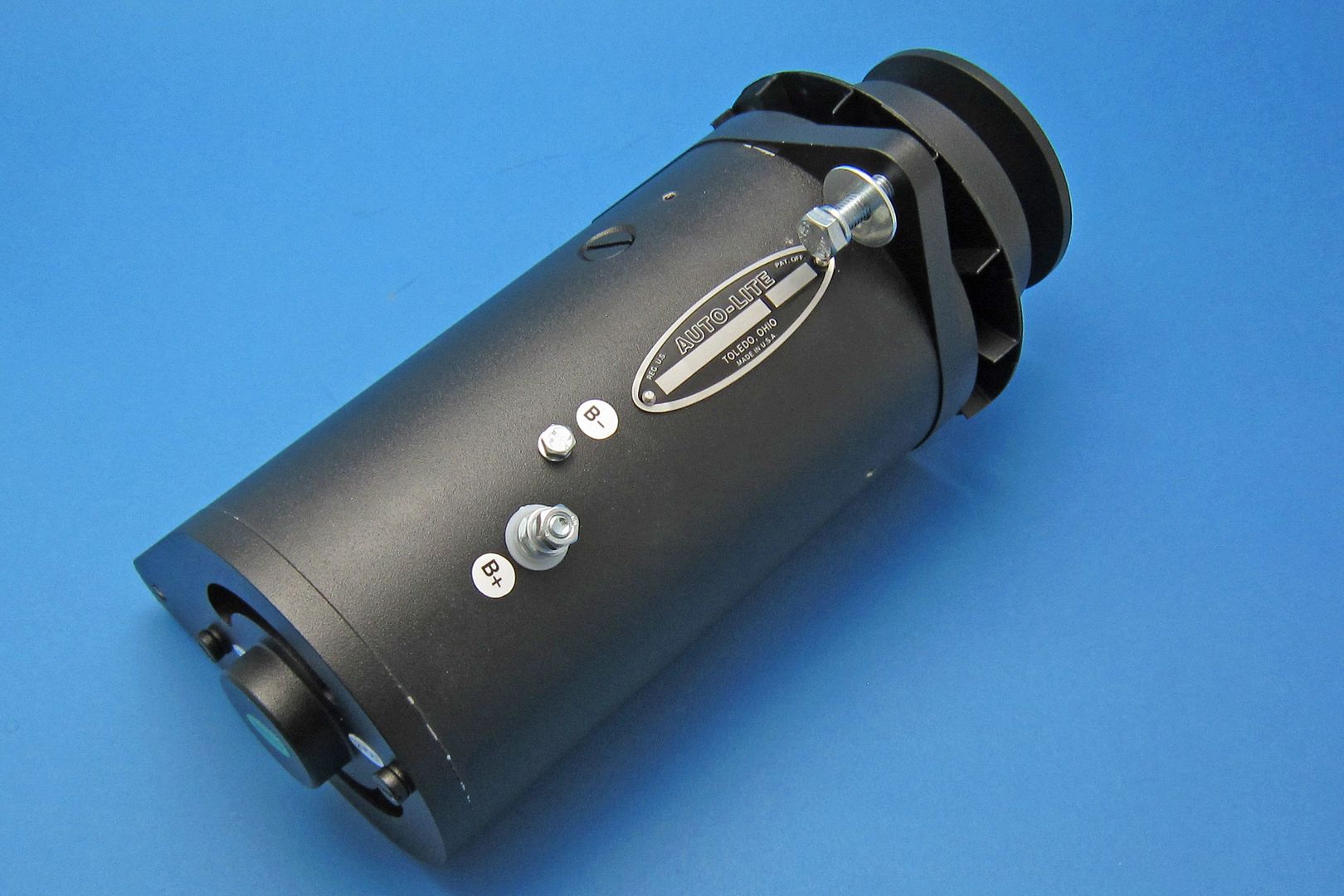

Pictures above show LMDWIL001. LMDWIL002 is the mirror image of this.

Electrical connection to the vehicle is easy and straight forward. Fitting instructions are given in the downloads section below.



Options


Willys Jeep Dynator - LH mounting (6V)
Stockcode: LMDWIL001-6V
£730.00
exc VAT
(each)
Willys Jeep Dynator - LH mounting (12V)
Stockcode: LMDWIL001
£650.00
exc VAT
(each)
Willys Jeep Dynator - RH mounting (12V)
Stockcode: LMDWIL002
£650.00
exc VAT
(each)
Willys Jeep Dynator - RH mounting (6V)
Stockcode: LMDWIL002-6V
£730.00
exc VAT
(each)
