'W' Pulleys
Description

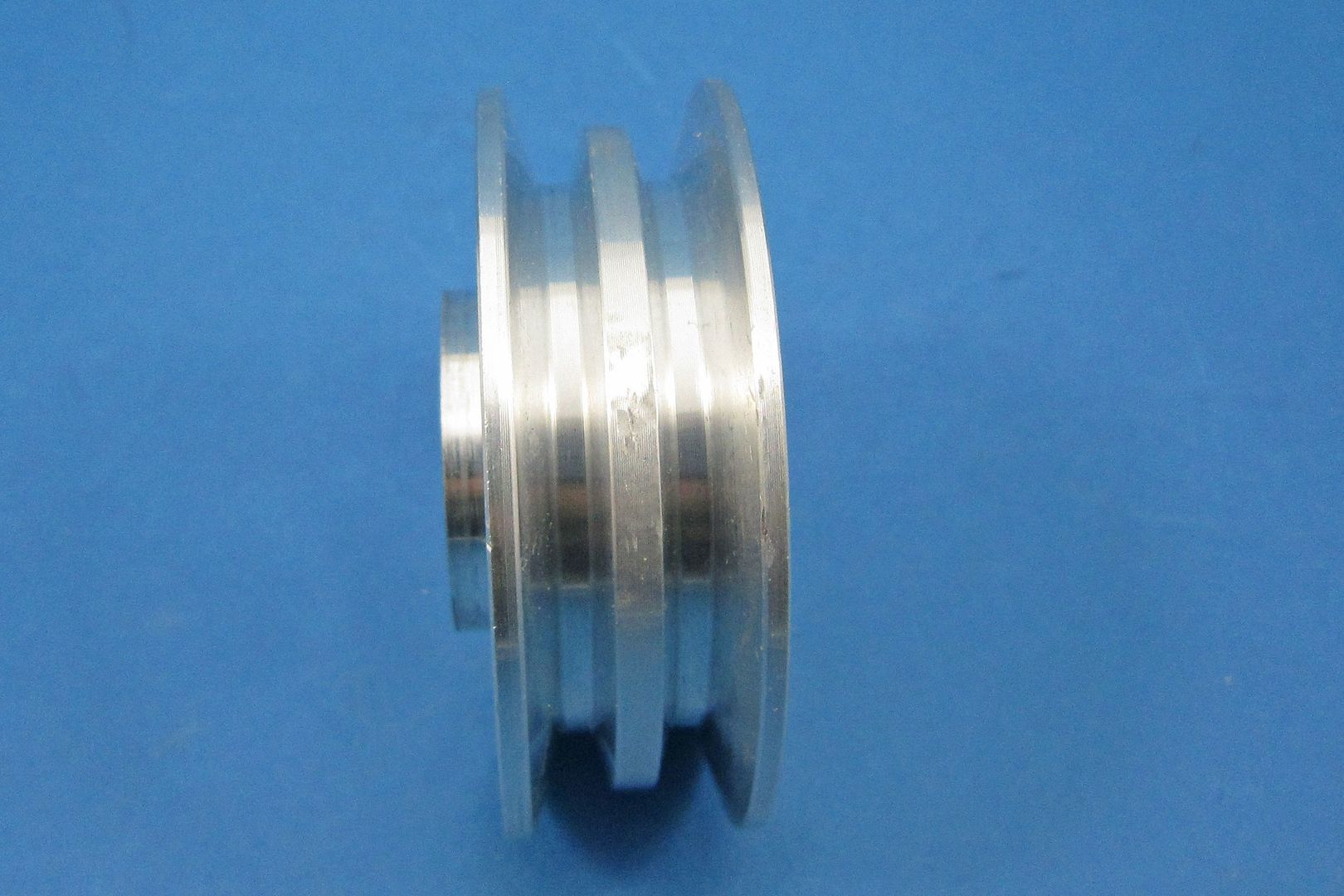

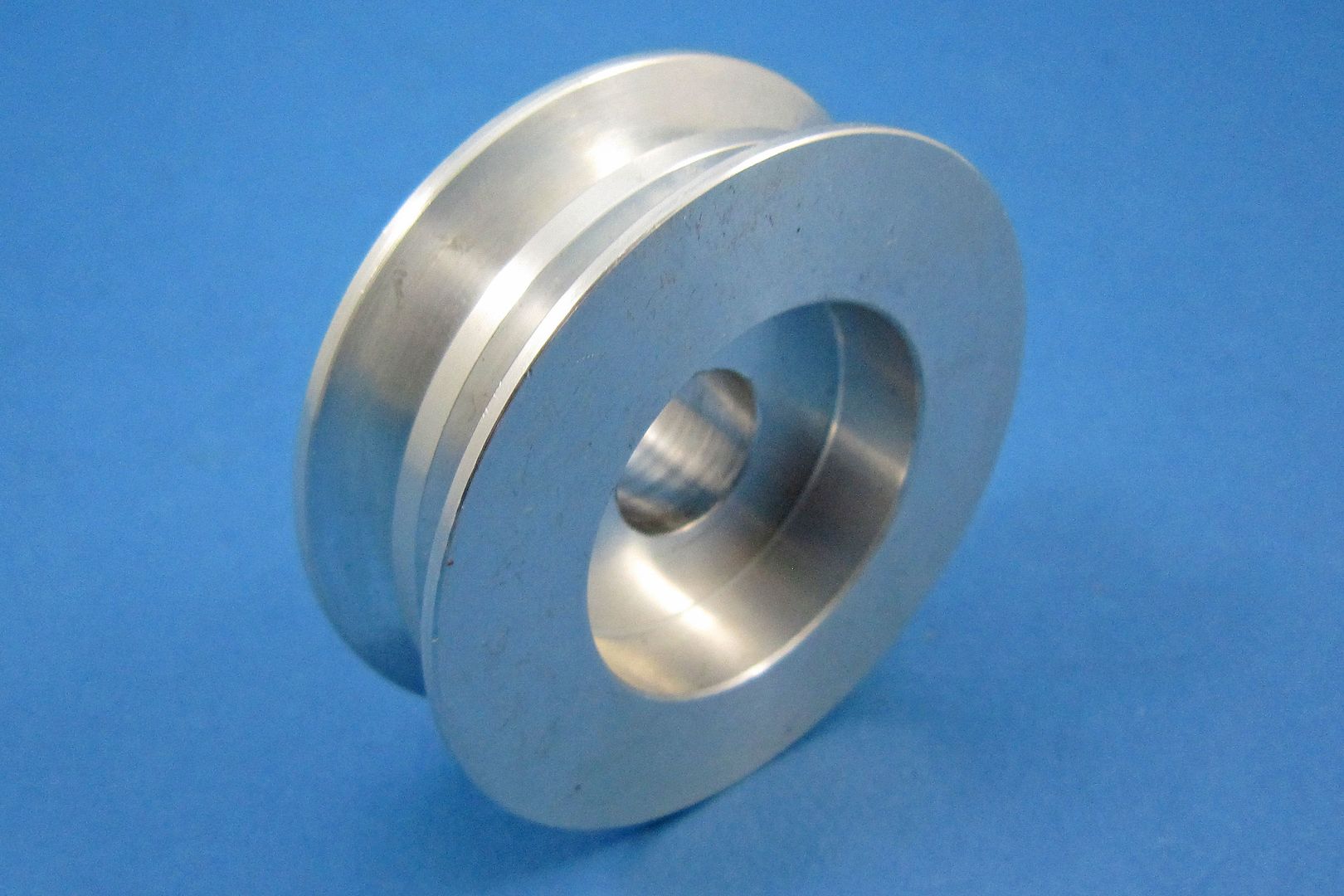

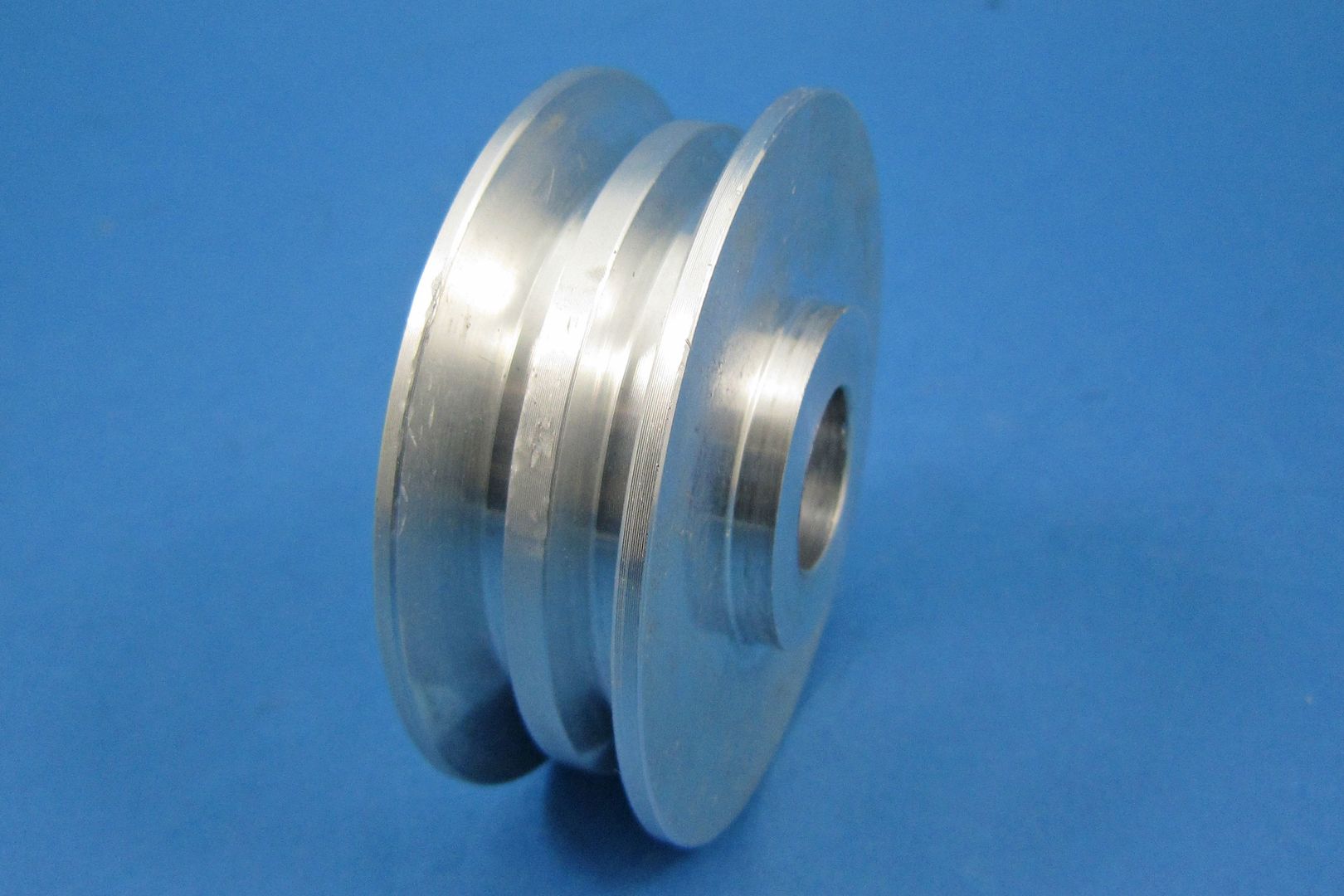

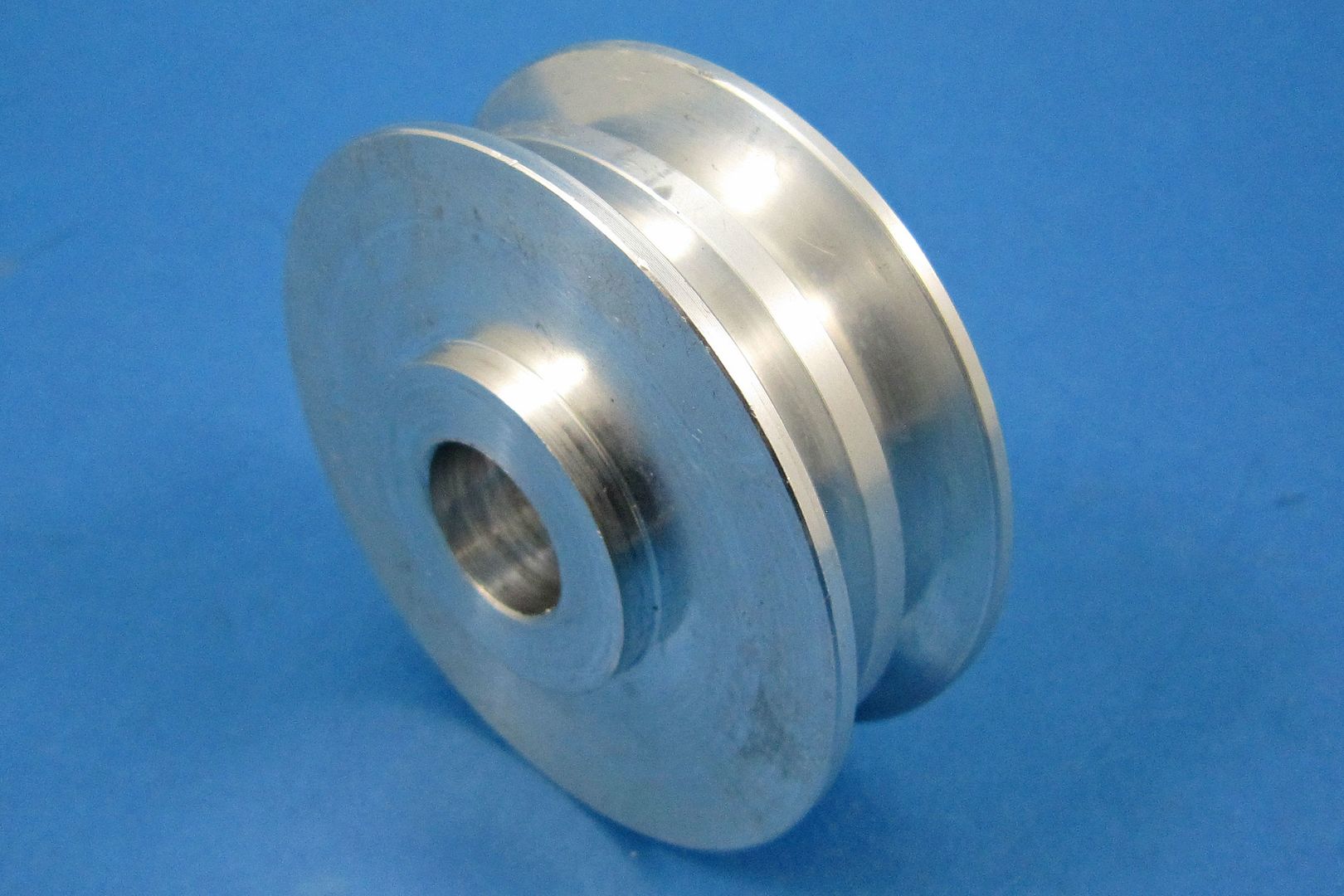

Duplex Double V pulleys.
These pulleys were commonly used on Jaguars (particularly the E-type), with a single wide belt having two ridges. The standard pulley had a diameter of 80mm. We also sell a smaller version (60mm diameter) which is useful if the speed of rotation of the dynamo or alternator needs to be increased.
Both are machined from aluminium and can be specified with either a 15 or 17mm bore.
LMP024 is to suit 11AC Alternators
LMP072 to suit C42 Dynamos
