VW Type 2 (T3) Petrol/Man

Description

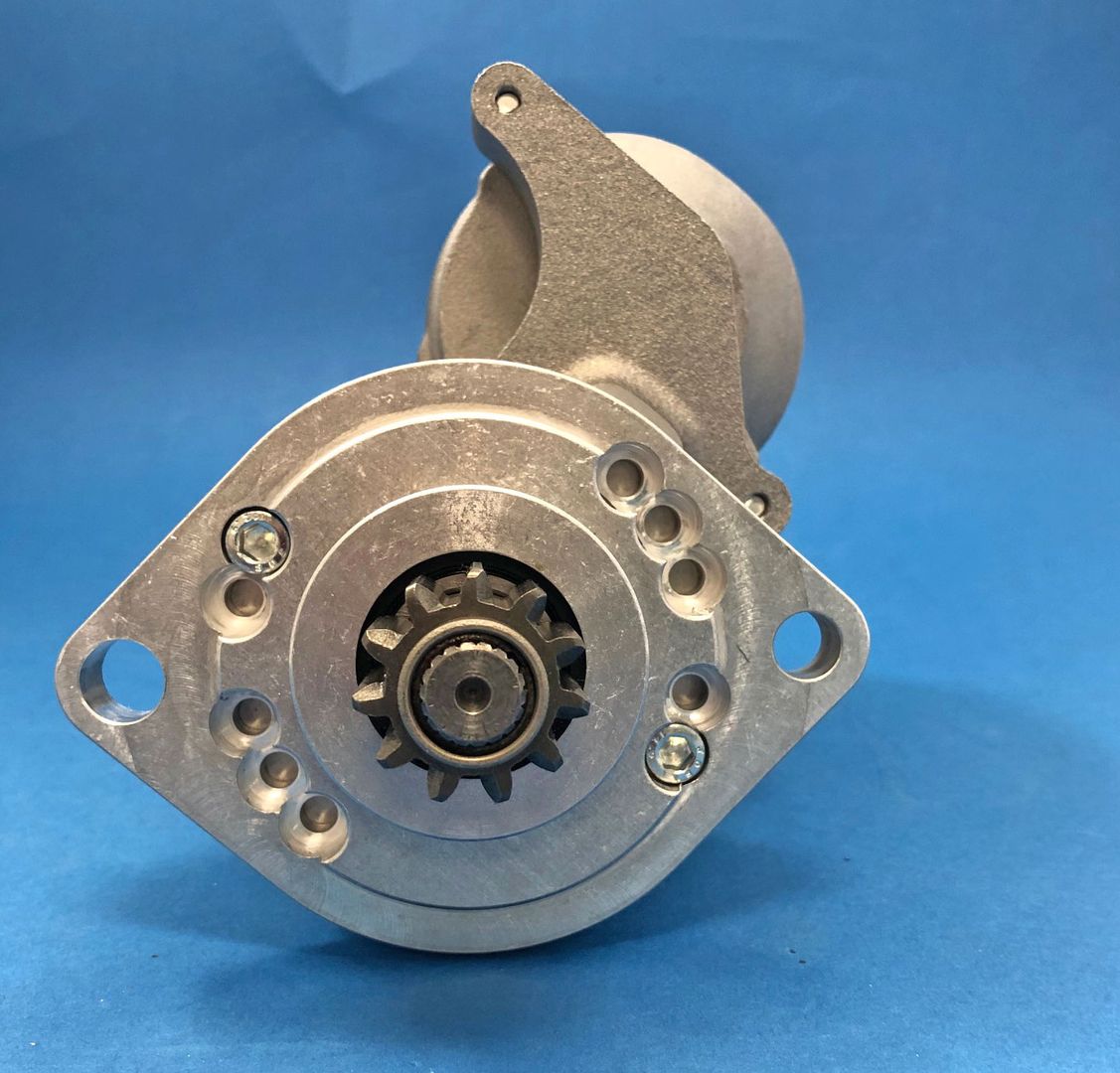

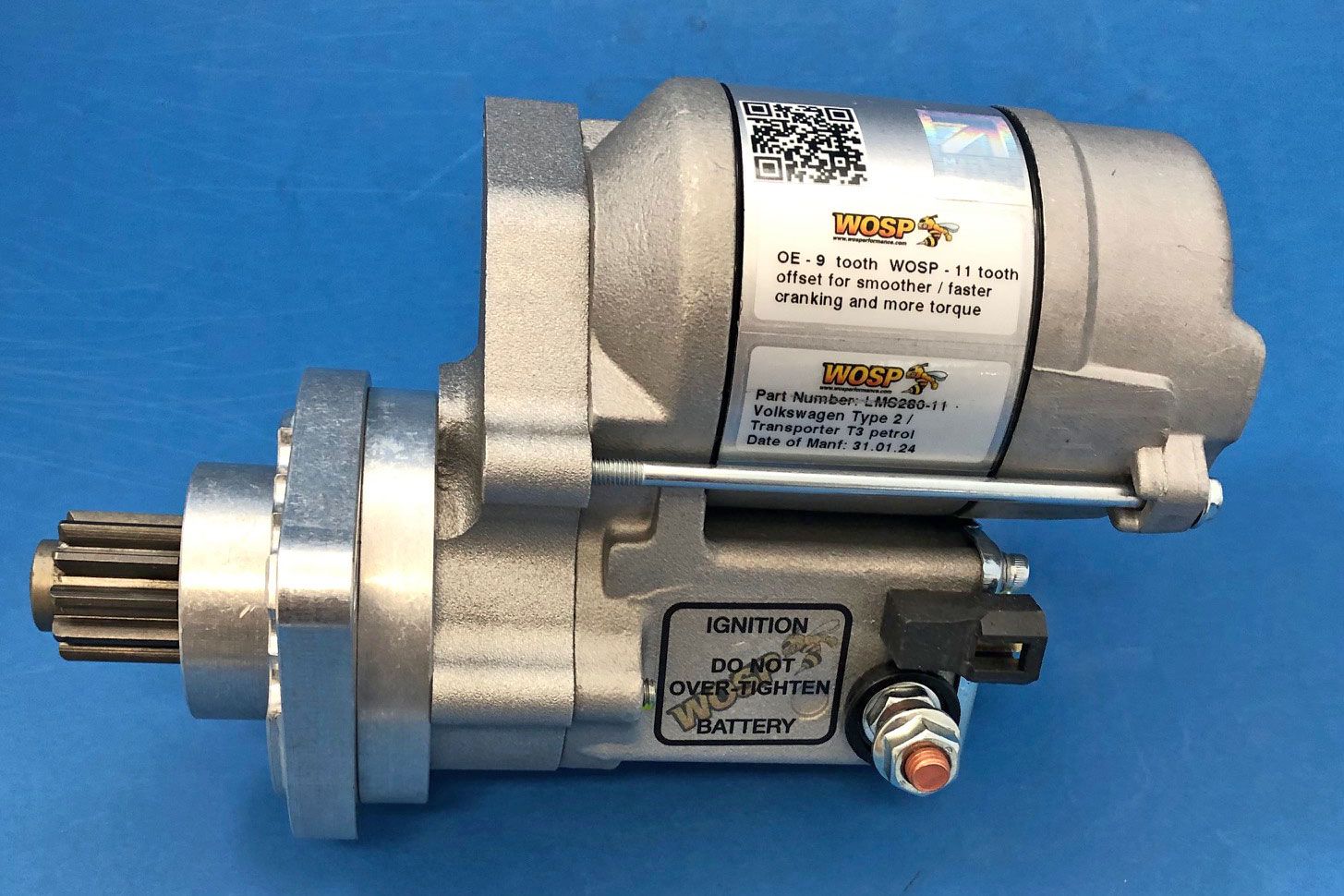

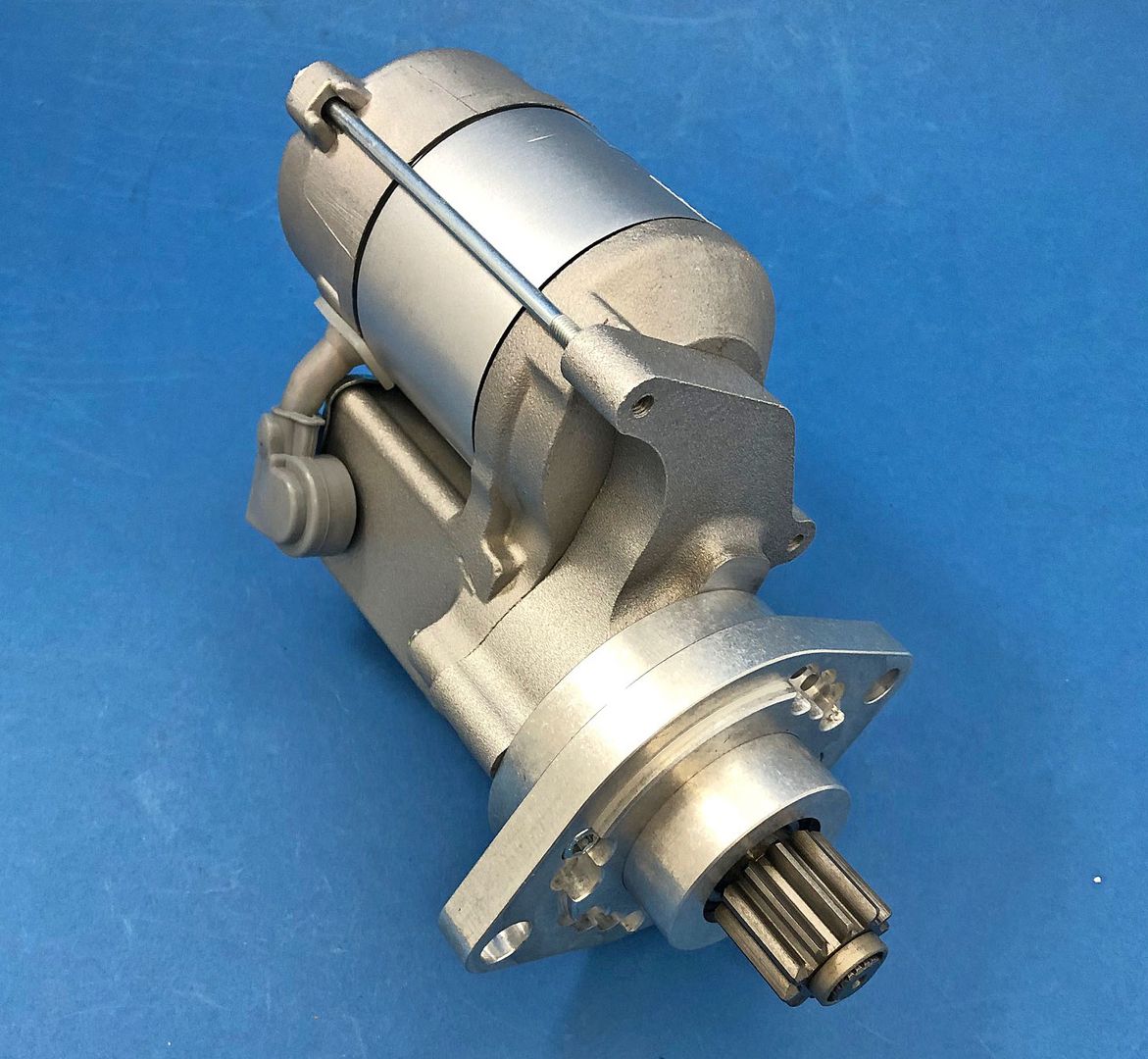

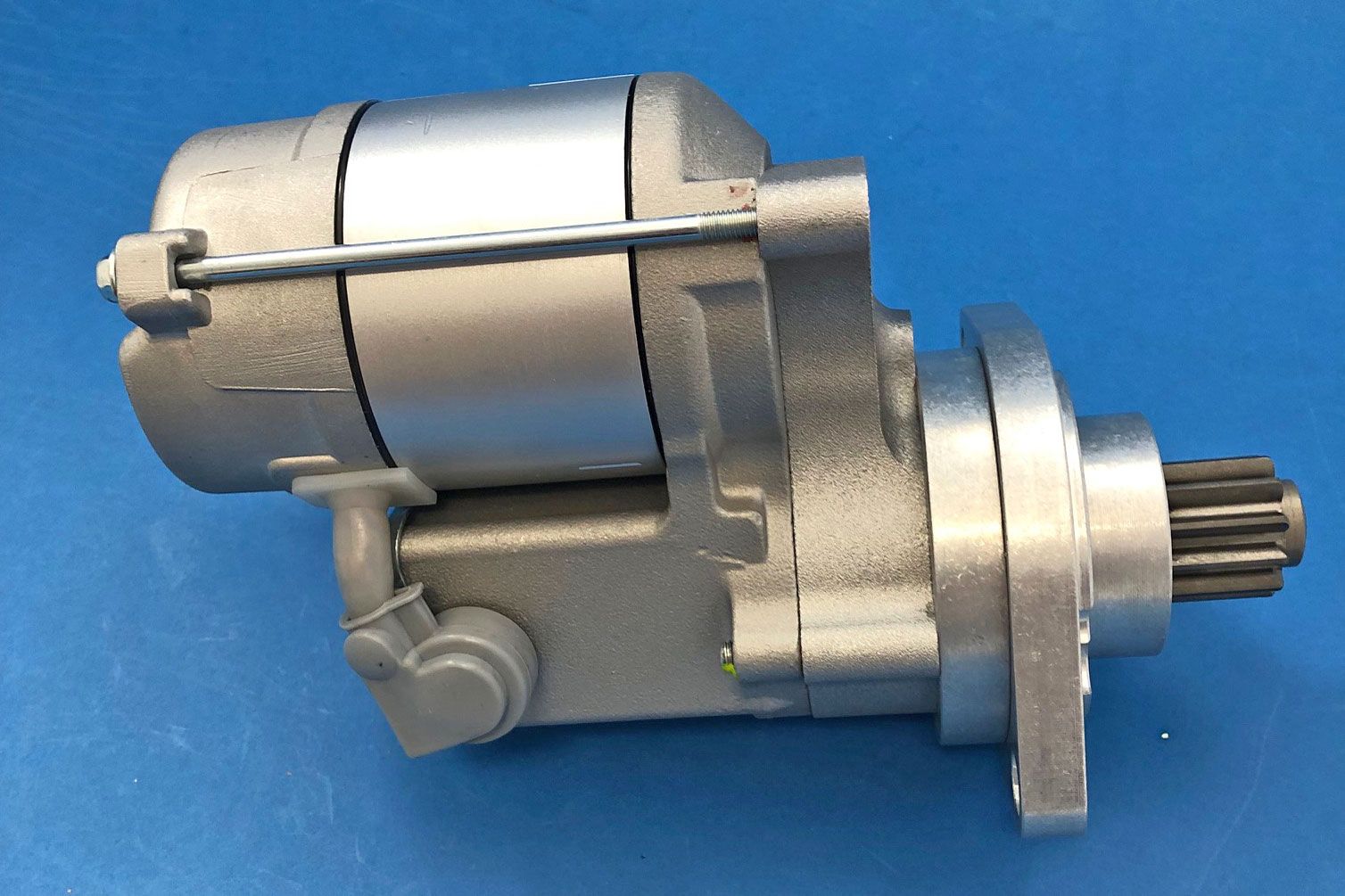

High torque starter motor to fit Petrol VW Type 2 (T3) Transporter / Caravelle / Microbus / Vanagon / T25. Supplied with indexable mounting flange to offer orientation choices. For vehicles with manual transmission only. Fits models shown in lists below. Replaces Lucas LRS00790/599/370.

Originally the VW starter had a 9 tooth 25mm pinion. These starters have an 11 tooth 29mm pinion, offset slightly. The net effect is an even faster cranking speed, on top of that provided by the high torque starter motor.

  • Power 1.4kW
  • Starter Weight 3.8kg
  • 11 tooth/ 29mm pinion (replaces 9 teeth/25mm diameter pinion)
  • 76mm spigot diameter, 105mm bolt hole centre distance
  • Works on both negative and positive earth vehicles
  • Manufactured by WOSP Performance

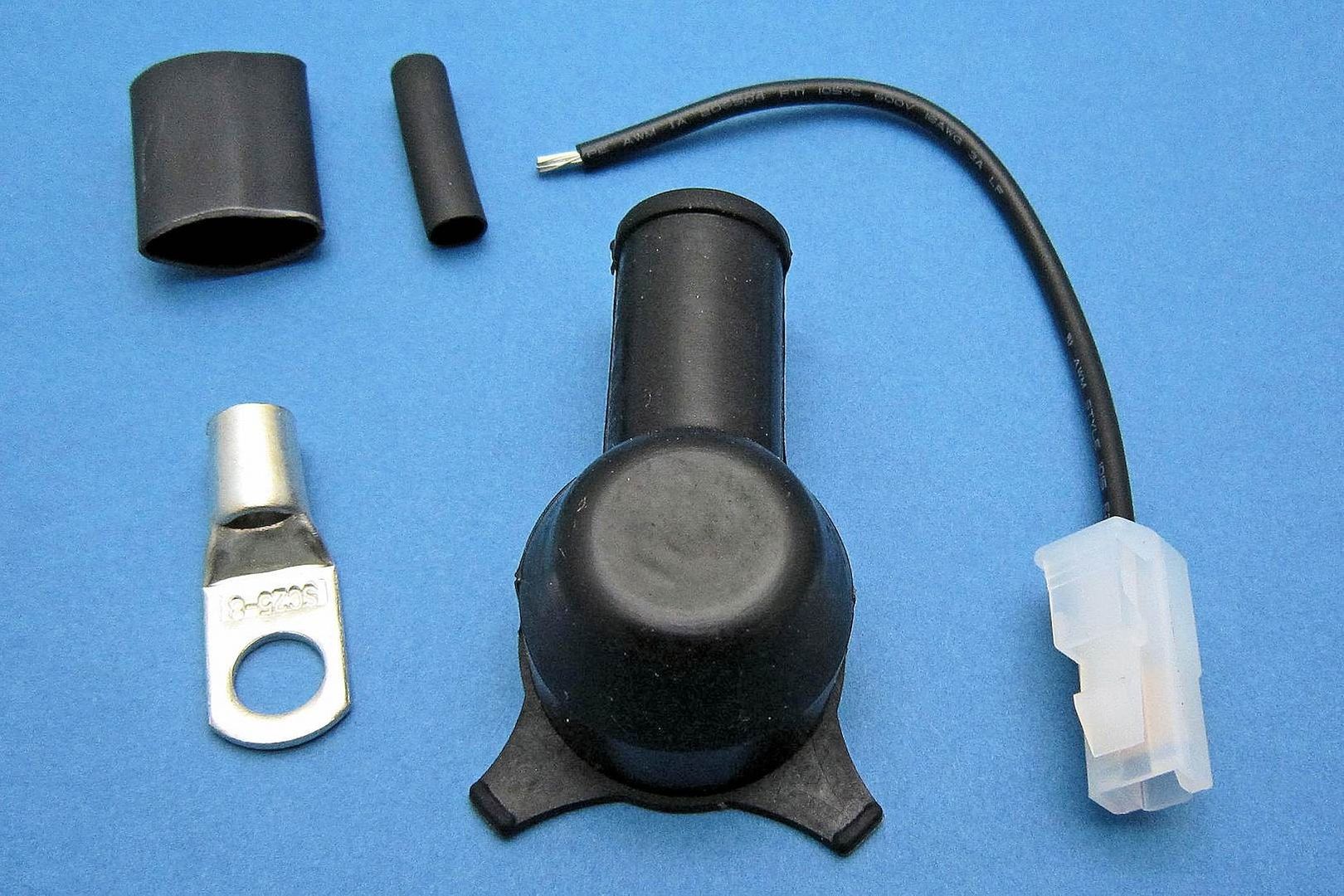

  • Supplied with terminal fitting kit
  • Three year guarantee
  • Free UK mainland carriage

LRS00790

Manufacturer Car Model Version Year Engine Technical info
VW VOLKSWAGEN Transporter T3 1.9   1986-1992 1913ccm DF DG 0.95KW
VW VOLKSWAGEN Transporter T3 1.9 syncro   1986-1992 1913ccm DG 0.95KW
VW VOLKSWAGEN Transporter T3 2.1   1985-1992 2109ccm DJ MV SR SS 0.95KW
VW VOLKSWAGEN Transporter T3 2.1 syncro   1985-1992 2109ccm DJ MV SR 0.95KW



LRS00599

Manufacturer Car Model Version Year Engine Technical info
VW VOLKSWAGEN Transporter T3 1.6   1981-1982 1585ccm CT CZ 0.8KW
VW VOLKSWAGEN Transporter T3 1.9   1982-1986 1913ccm DF DG 0.8KW
VW VOLKSWAGEN Transporter T3 1.9 syncro   1982-1986 1913ccm DG 0.8KW
VW VOLKSWAGEN Transporter T3 2.0   1981-1982 1971ccm CU CV 0.8KW



LRS00370

Manufacturer Car Model Version Year Engine Technical info
VW VOLKSWAGEN Transporter T3 1.6   1975-1981 1584ccm 0.7KW
VW VOLKSWAGEN Transporter T3 2.0   1979-1981 1971ccm CU CV 0.7KW

VW Transporter Starter Motor
Stockcode: LMS280-11
£235.00
exc VAT
(each)
