V8 Small/Big Block (153 & 168T ring gear)

Description

High torque starter motors to fit the small and big block Chevrolet V8 engine fitted with a 153 & 168 tooth ring gear.

Three units available, one based on a Hitachi PMGR unit (negative earth only!) and two others on a Denso starter (suitable for both negative and positive earth vehicles). All three starter motors replace starter motors having 25mm diameter pinions with 9 teeth.

In normal applications select the 1.4kW Denso unit (LMS875), but if space and weight are critical select the Hitachi (LMS273). If more power is needed, select the 2kW Denso unit (LMS877)

  • Power 1.4kW
  • Starter Weight 3.8kg (Hitachi), 4.2/5.0kg (Denso)
  • 10 teeth/28mm diameter pinion (Hitachi Unit)
  • 11 teeth/29mm diameter pinion (Denso Units)
  • Manufactured by WOSP Performance

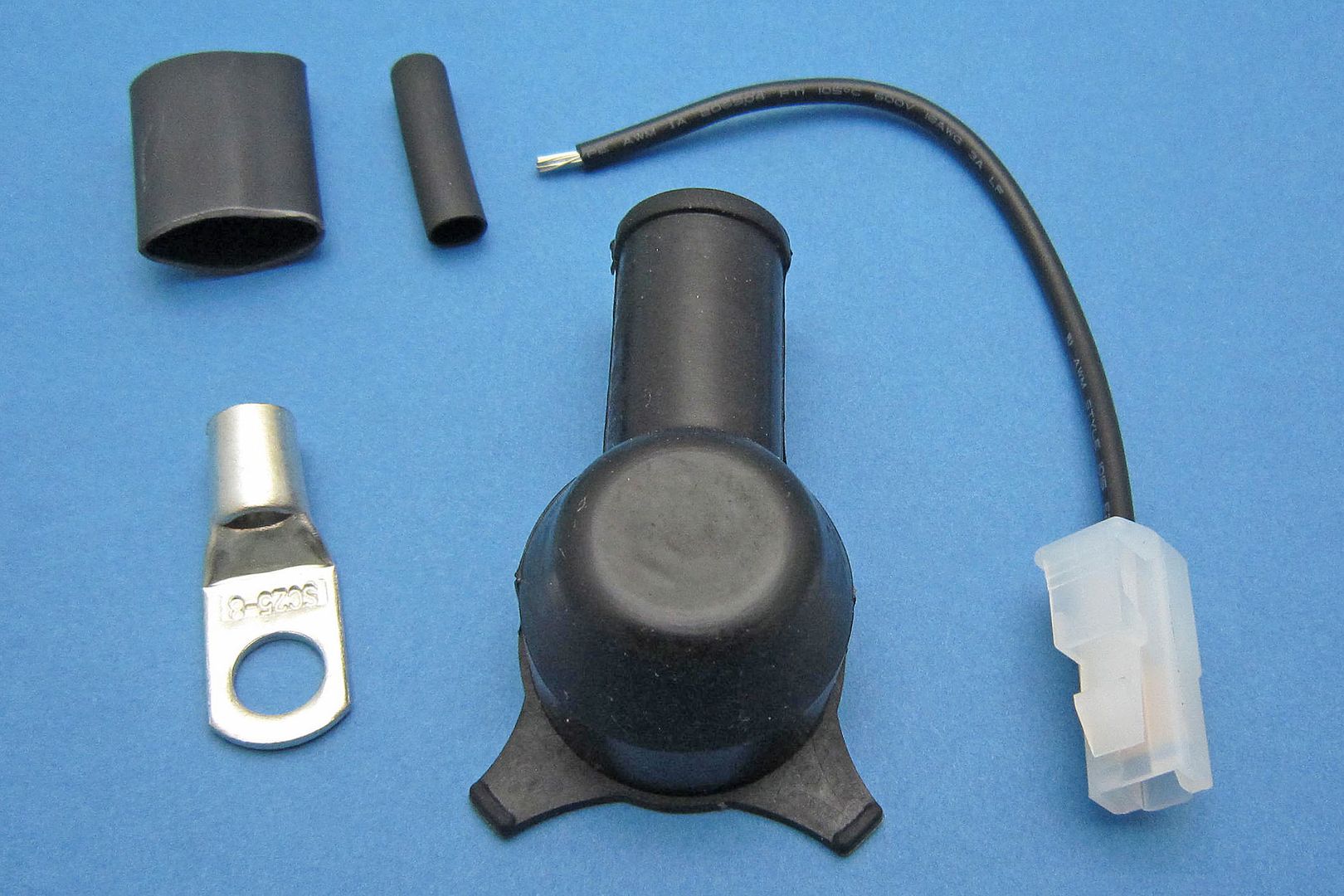

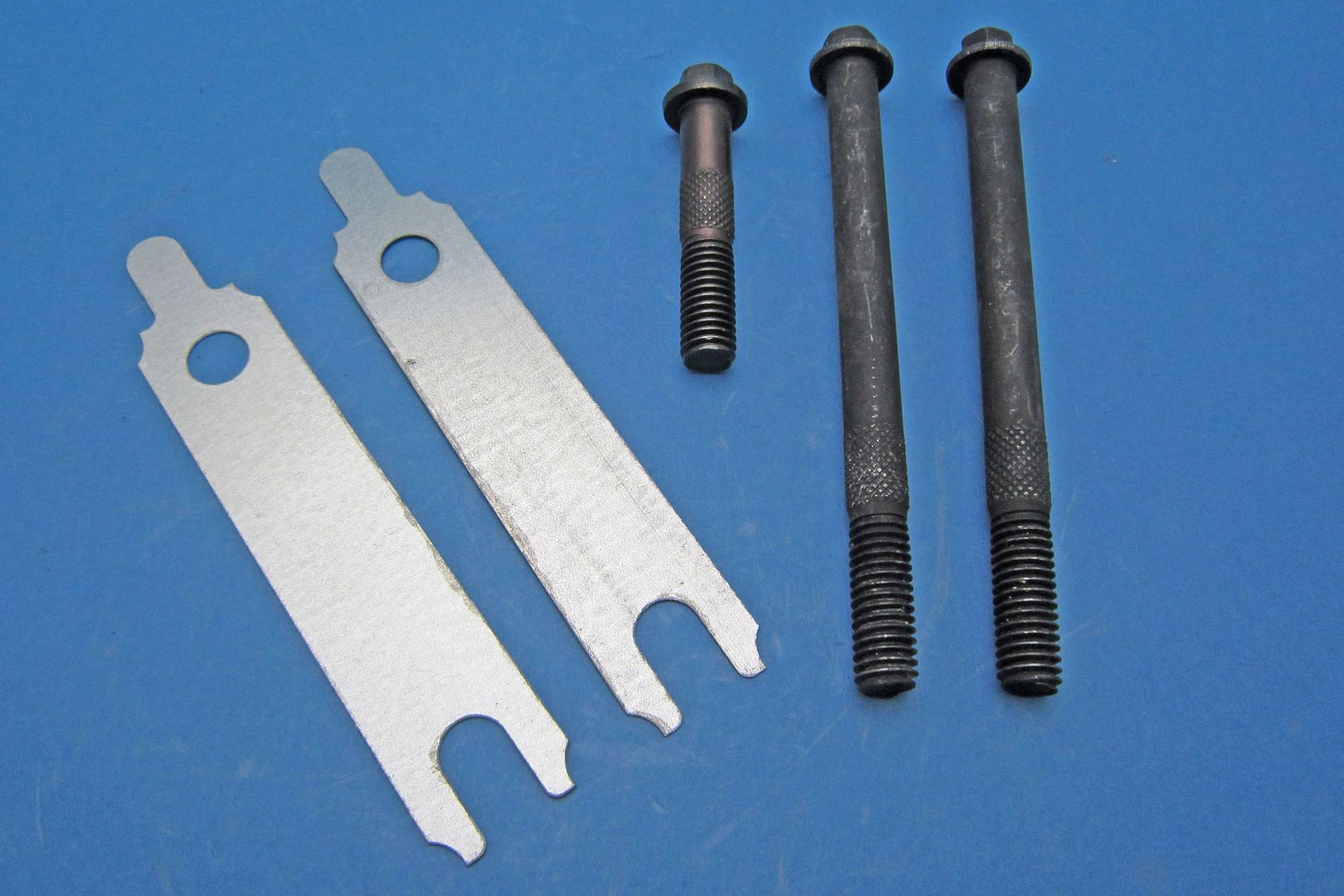

  • Supplied with terminal fitting kit, bolts and shim set.
  • Three year guarantee
  • Free UK mainland carriage



Options

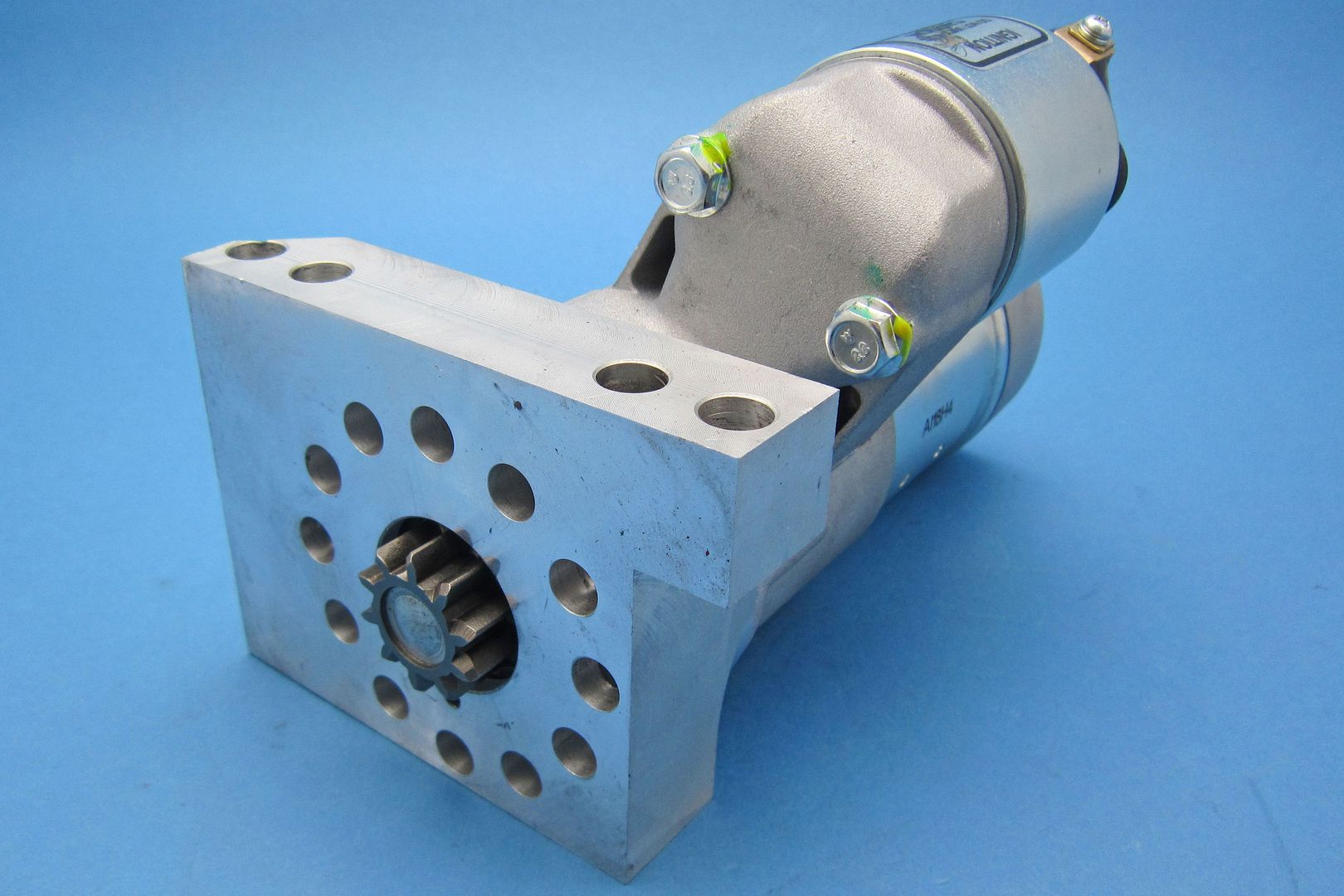

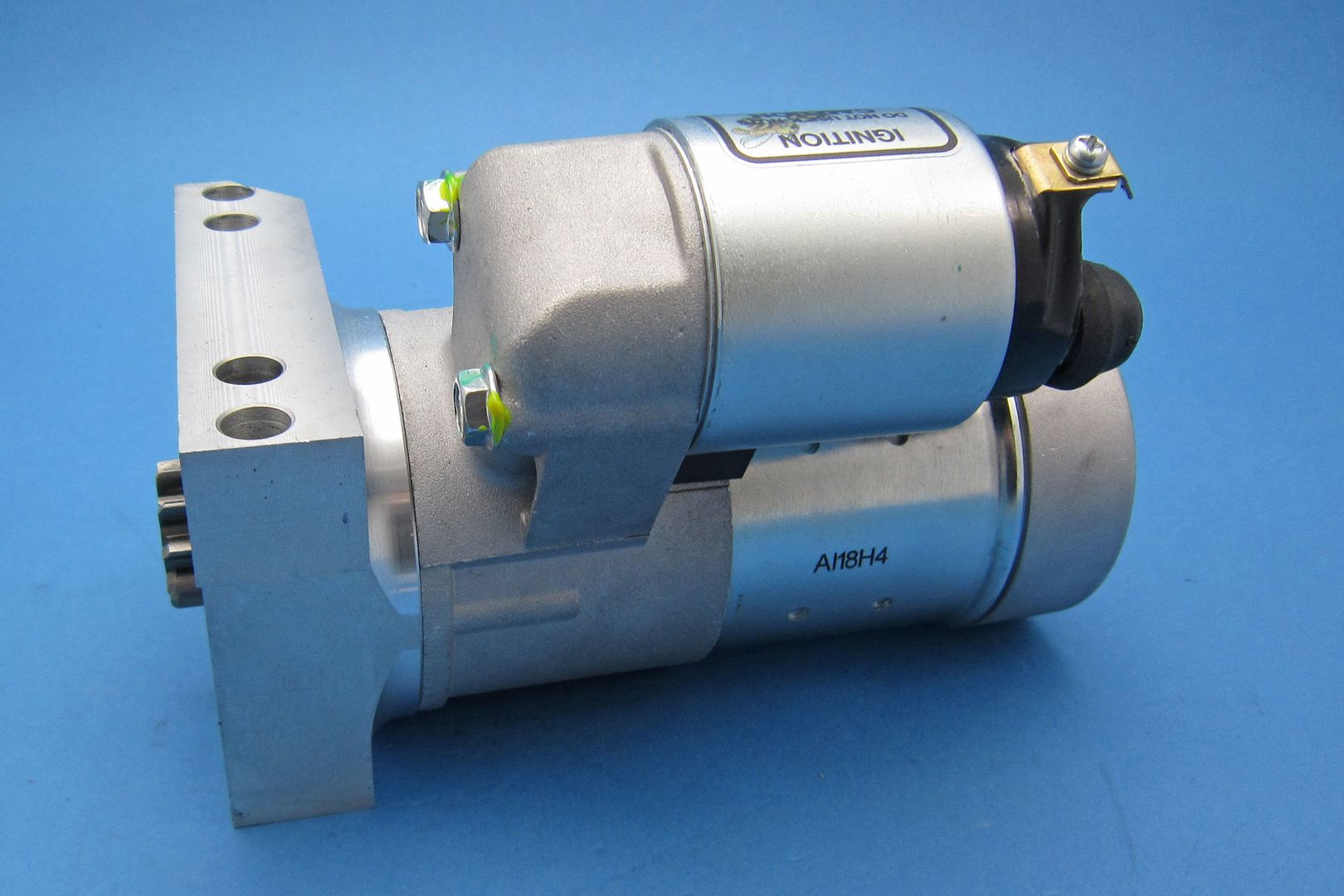

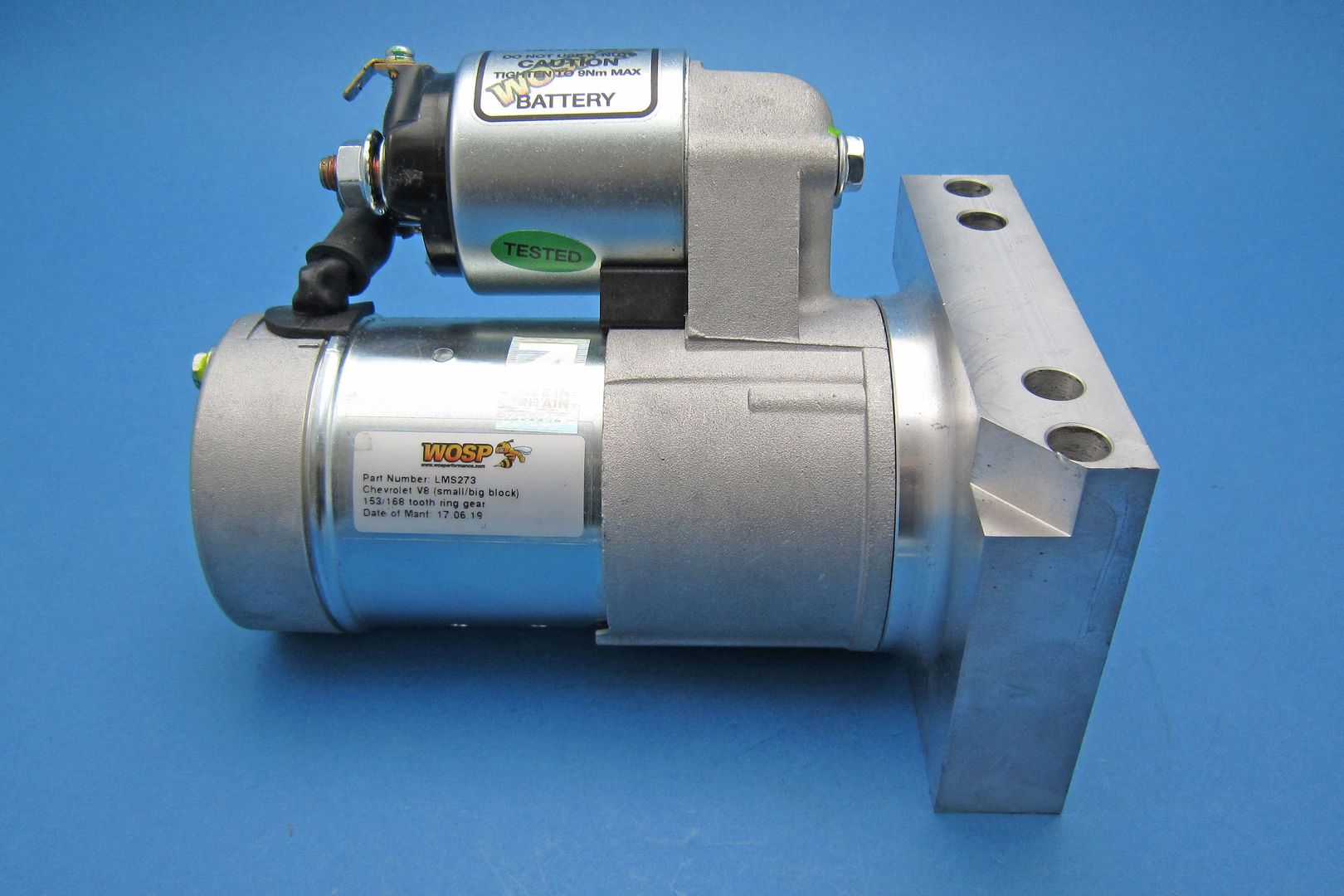

V8 Small/Big Block (153 & 168T ring gear) Starter Motor - Hitachi. Neg earth only
Stockcode: LMS273
£250.00
exc VAT
(each)

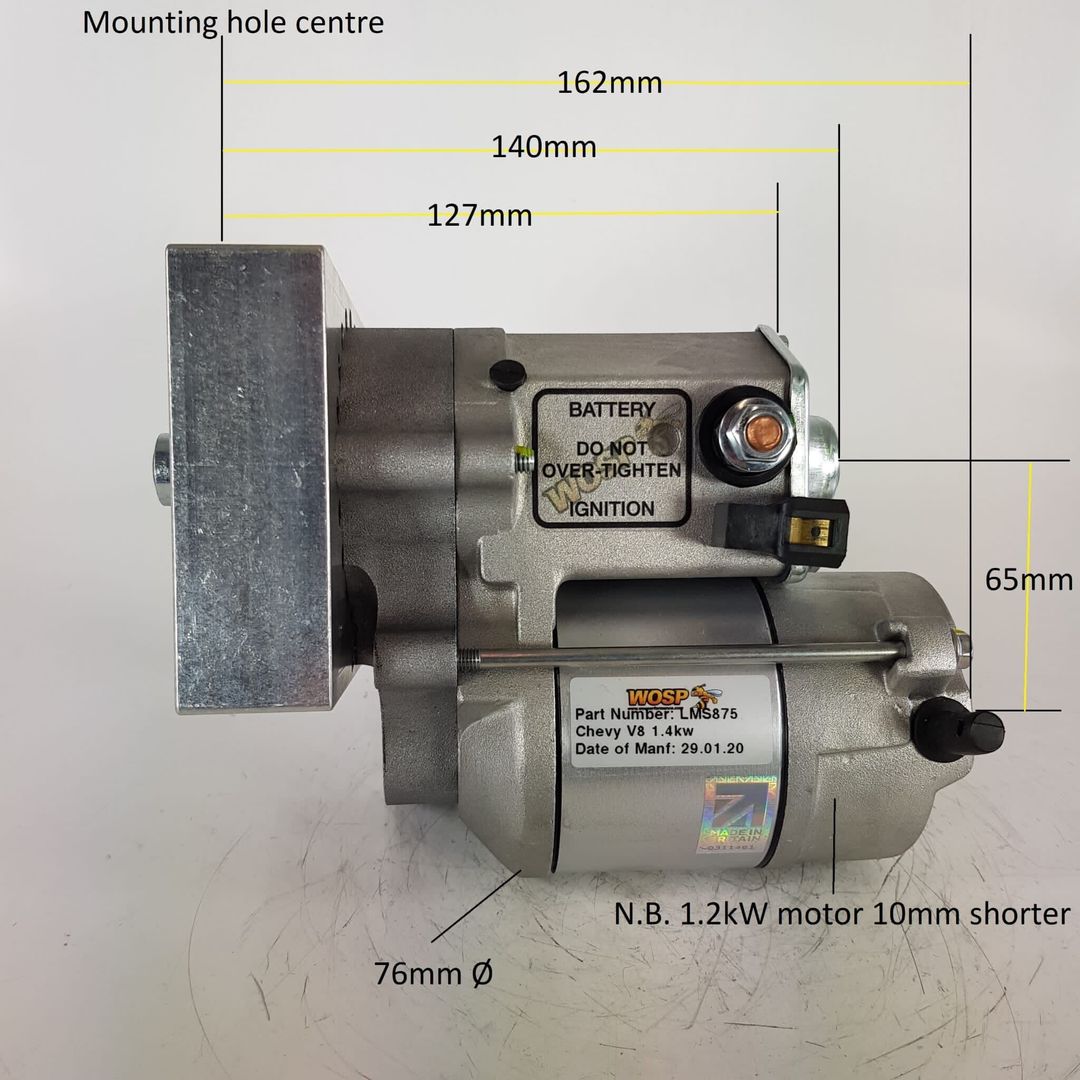

V8 Small/Big Block (153 & 168T ring gear) Starter Motor - Denso 1.4kW
Stockcode: LMS875
£260.00
exc VAT
(each)

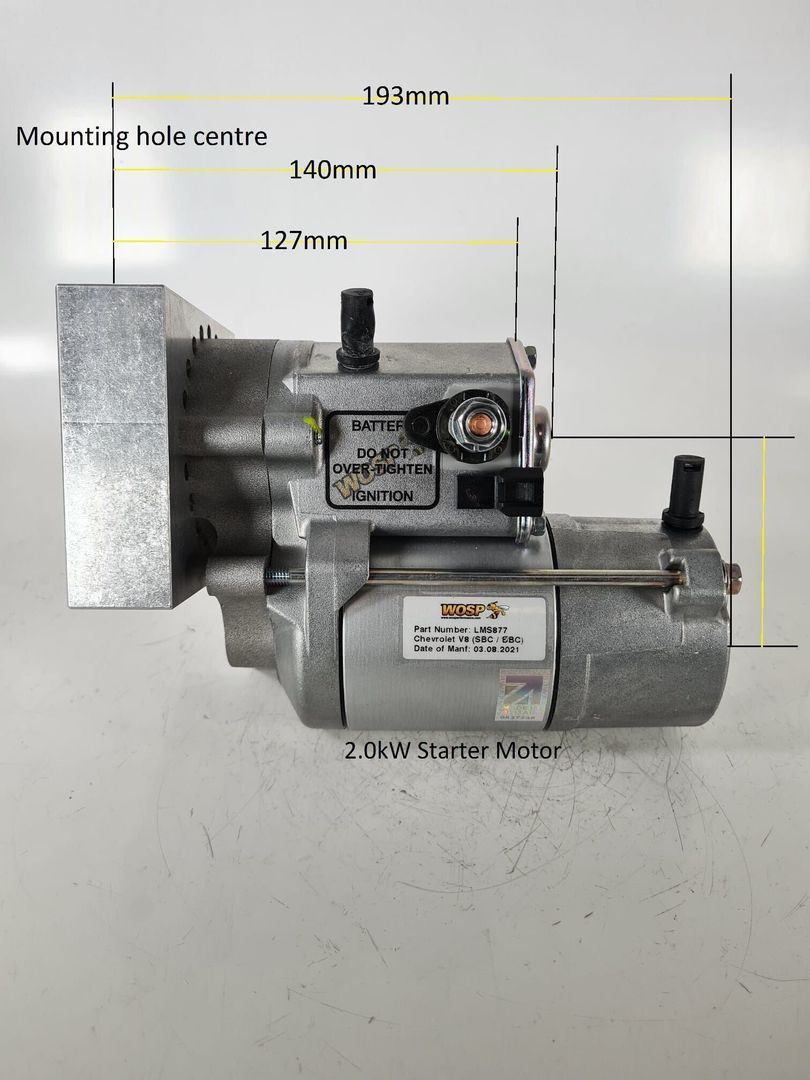

V8 Small/Big Block (153 & 168T ring gear) Starter Motor - Denso 2.0kW
Stockcode: LMS877
£275.00
exc VAT
(each)
