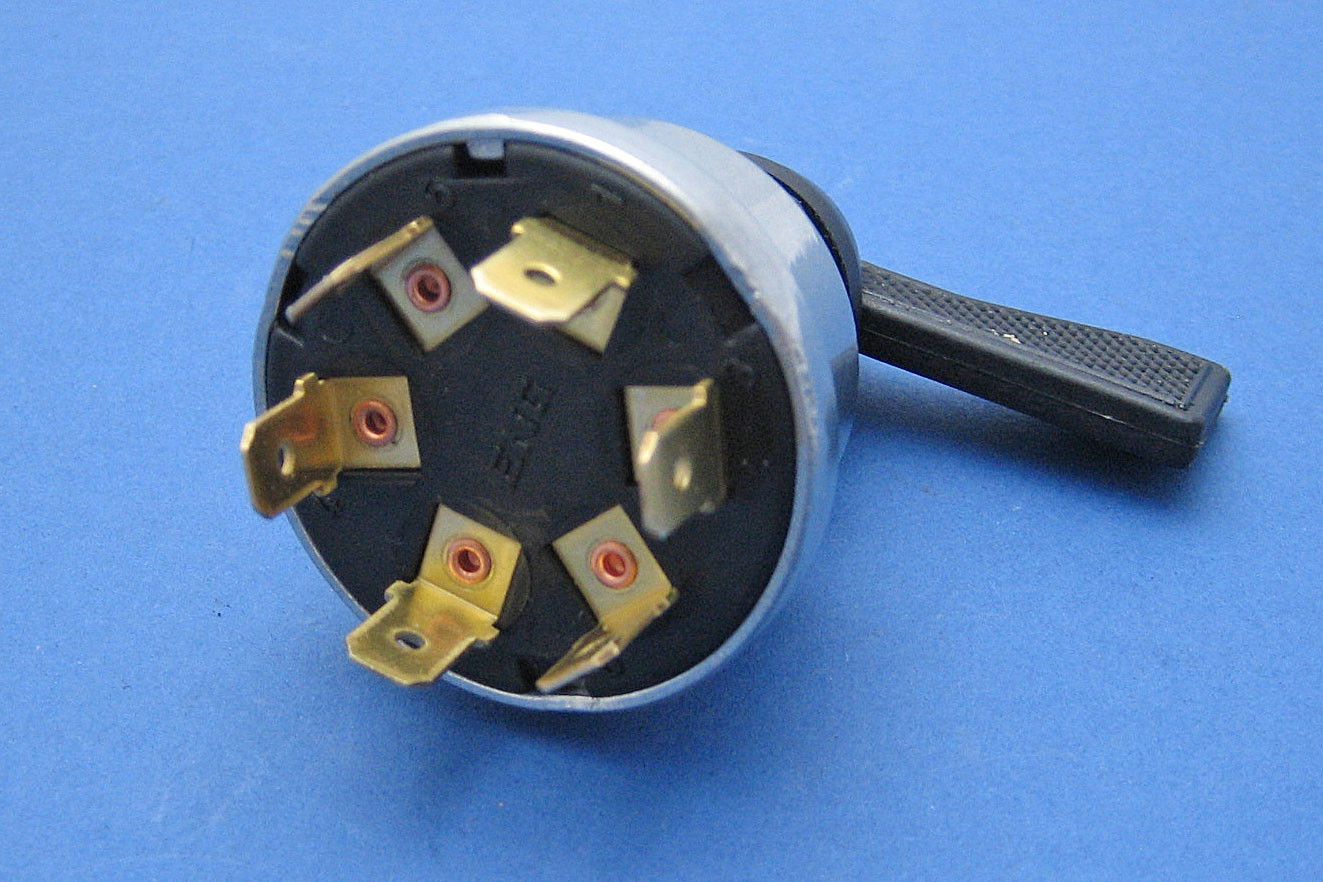

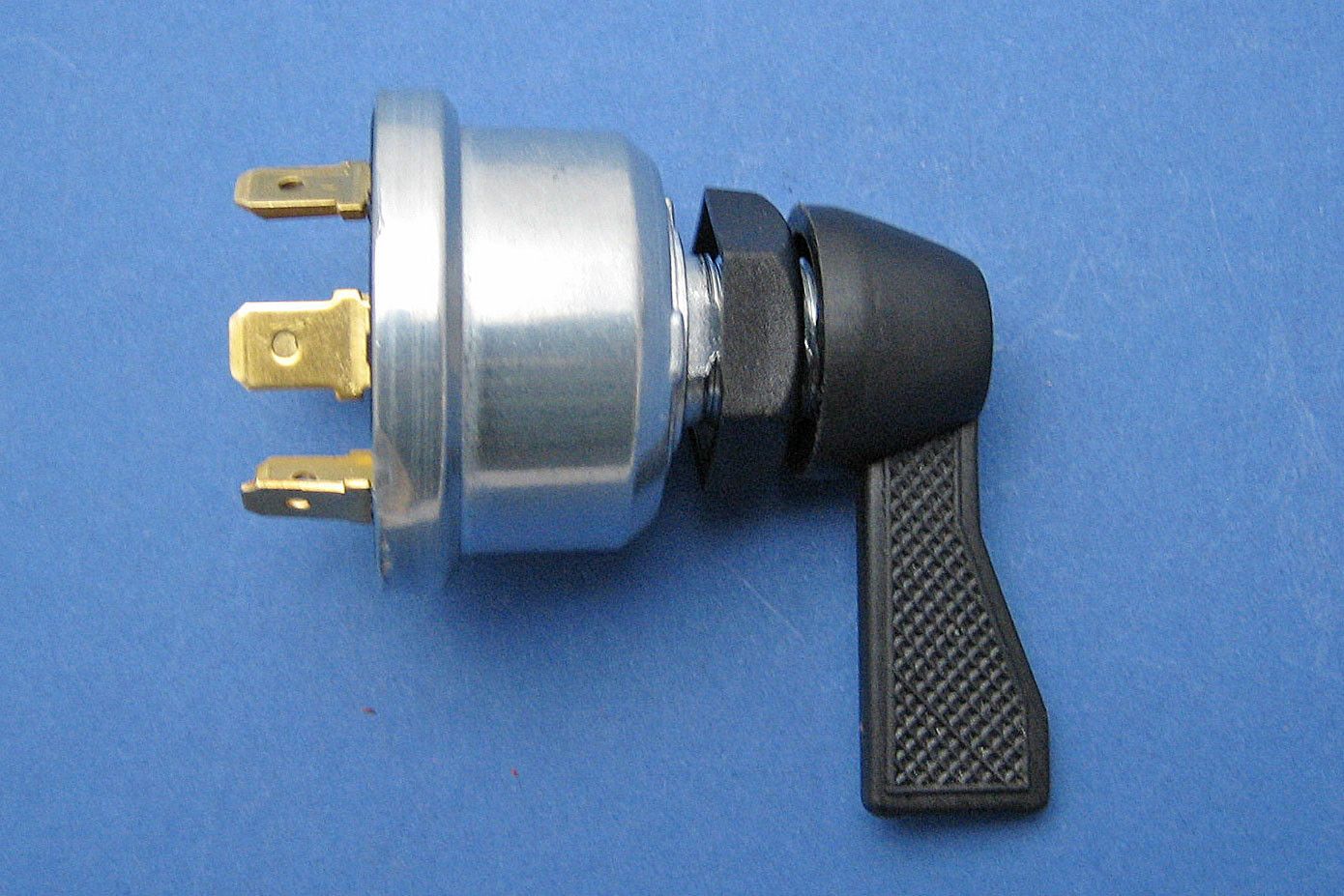

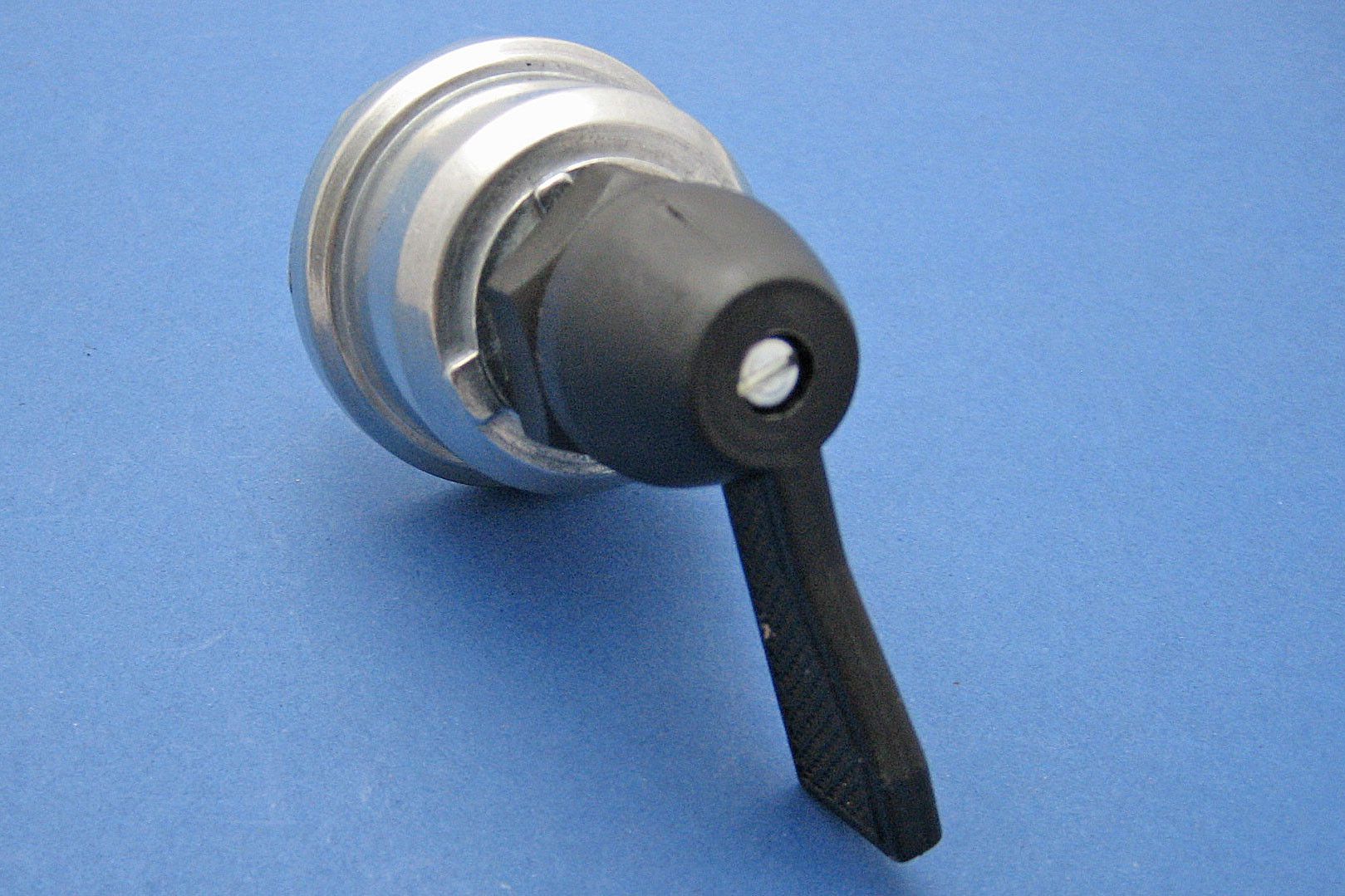

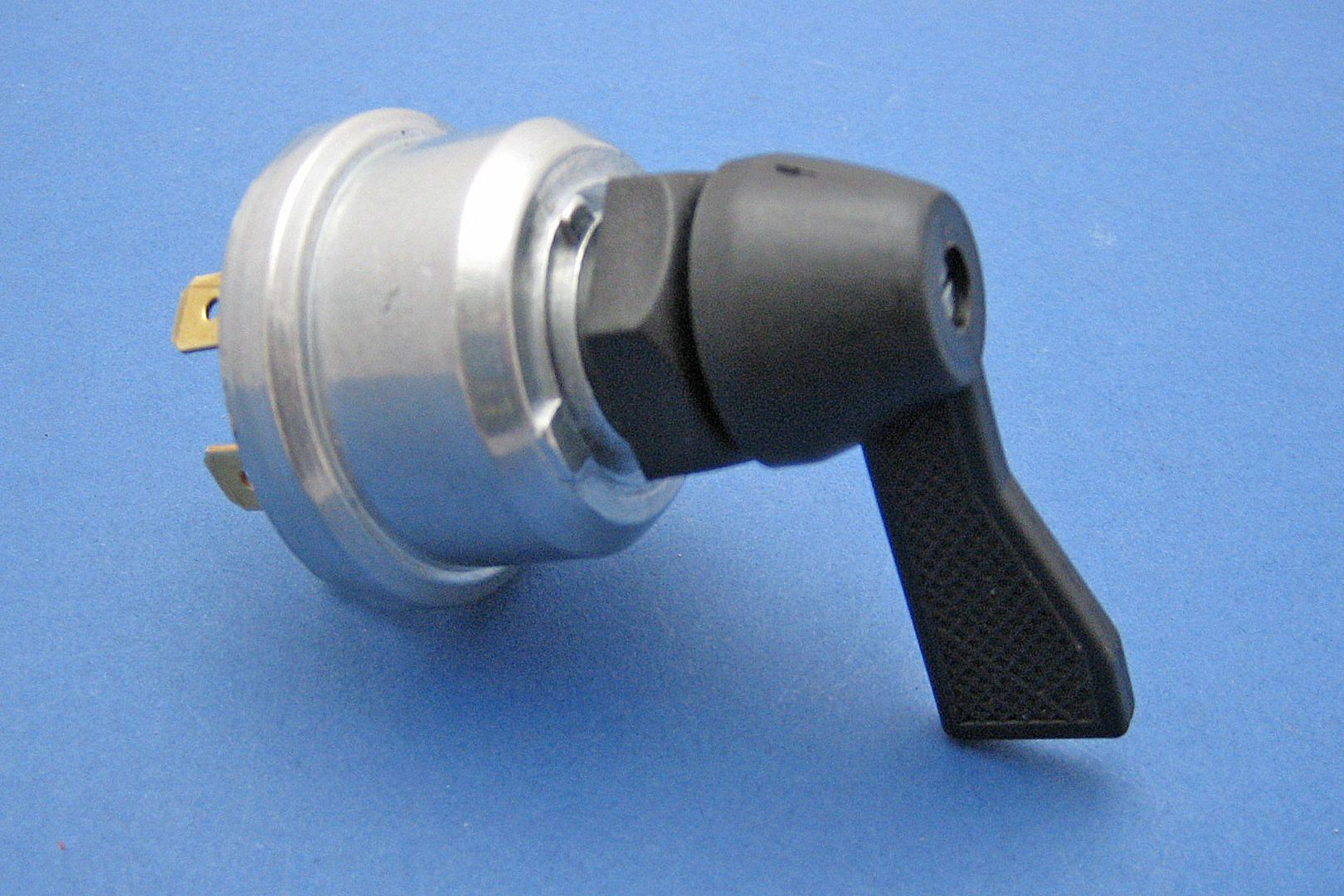

Old style rotary switch suitable for use as an indicator switch. Has 2 independent on/off/on switches, each with three terminals, so can also be used to control warning lights/buzzers or trafficators at the same time as indicating. Requires 14mm panel hole. Maximum body diameter 41mm. Body depth excluding terminals 24mm. Connection via 6 x 6.3mm blade terminals.
Power in terminal 1 connects to 3 or 5 (when turned)
Power in terminal 2 connects to 4 or 6 (when turned)
