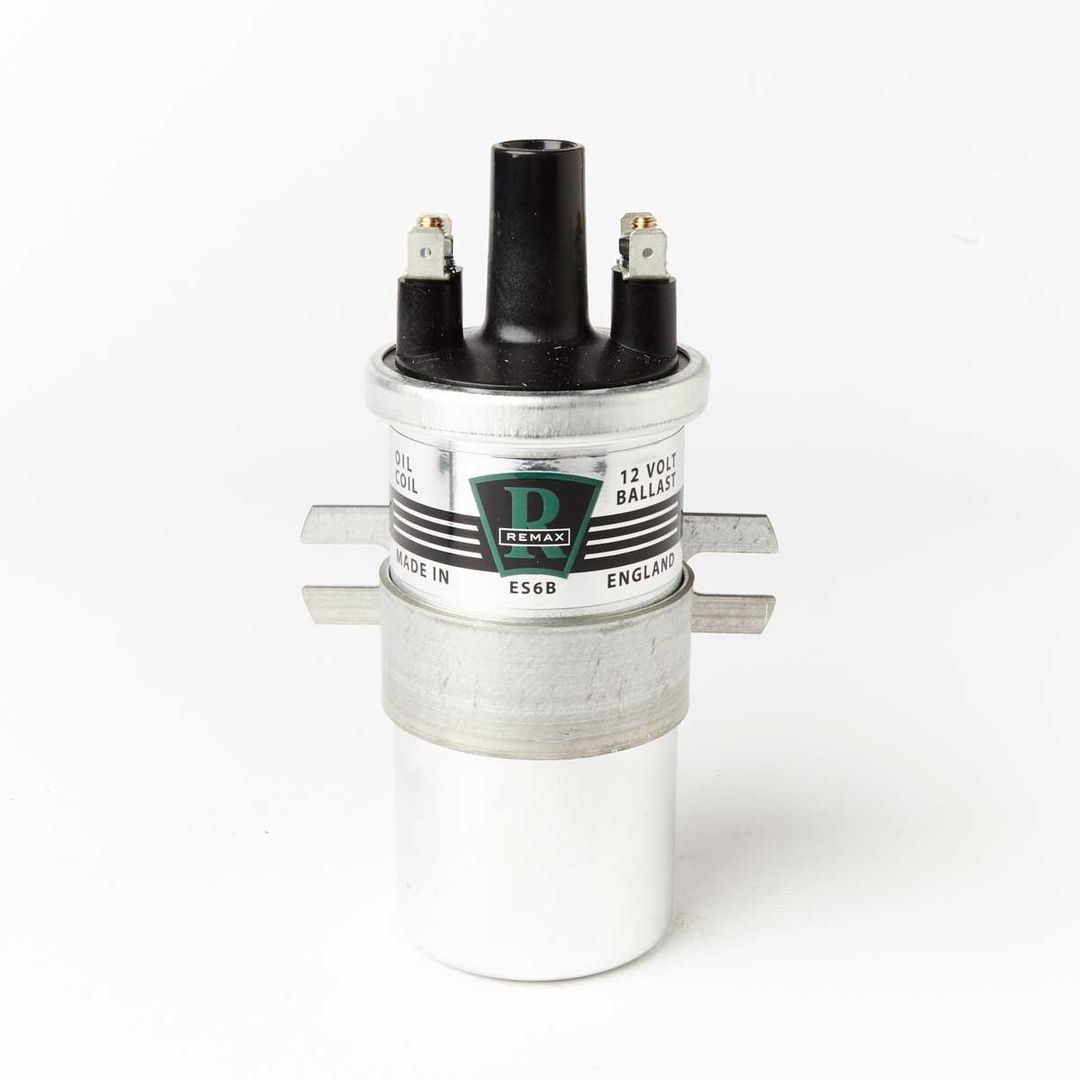

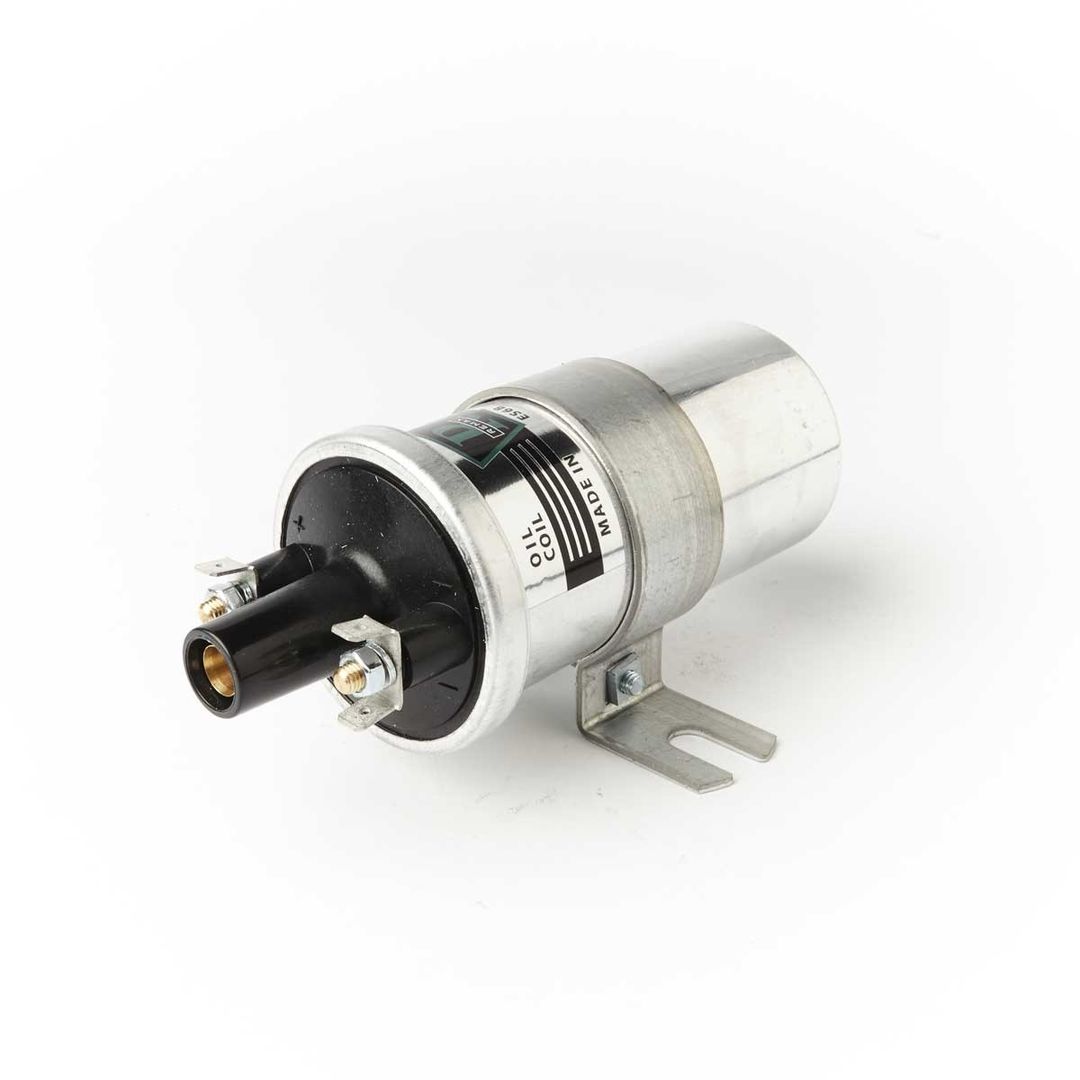

Remax ES6B 12V Ballast Resistor Coil Push In

Ignition coil for use with a 1.6 ohm ballast resistor (part no 060703). Remax ES6B. Made In England.

• 12V Ballast standard coil
• For 12 volt ballast ignition systems with conventional ignition push in type HT connection applications
• Oil filled coil
• Push in HT connector.
• No of poles 2
• Primary resistance Ohm 1.385
• Secondary resistance KOhm 9.07
• Output voltage @25pF/1M = 11,34 Volts
• Replaces Lucas DLB102
•

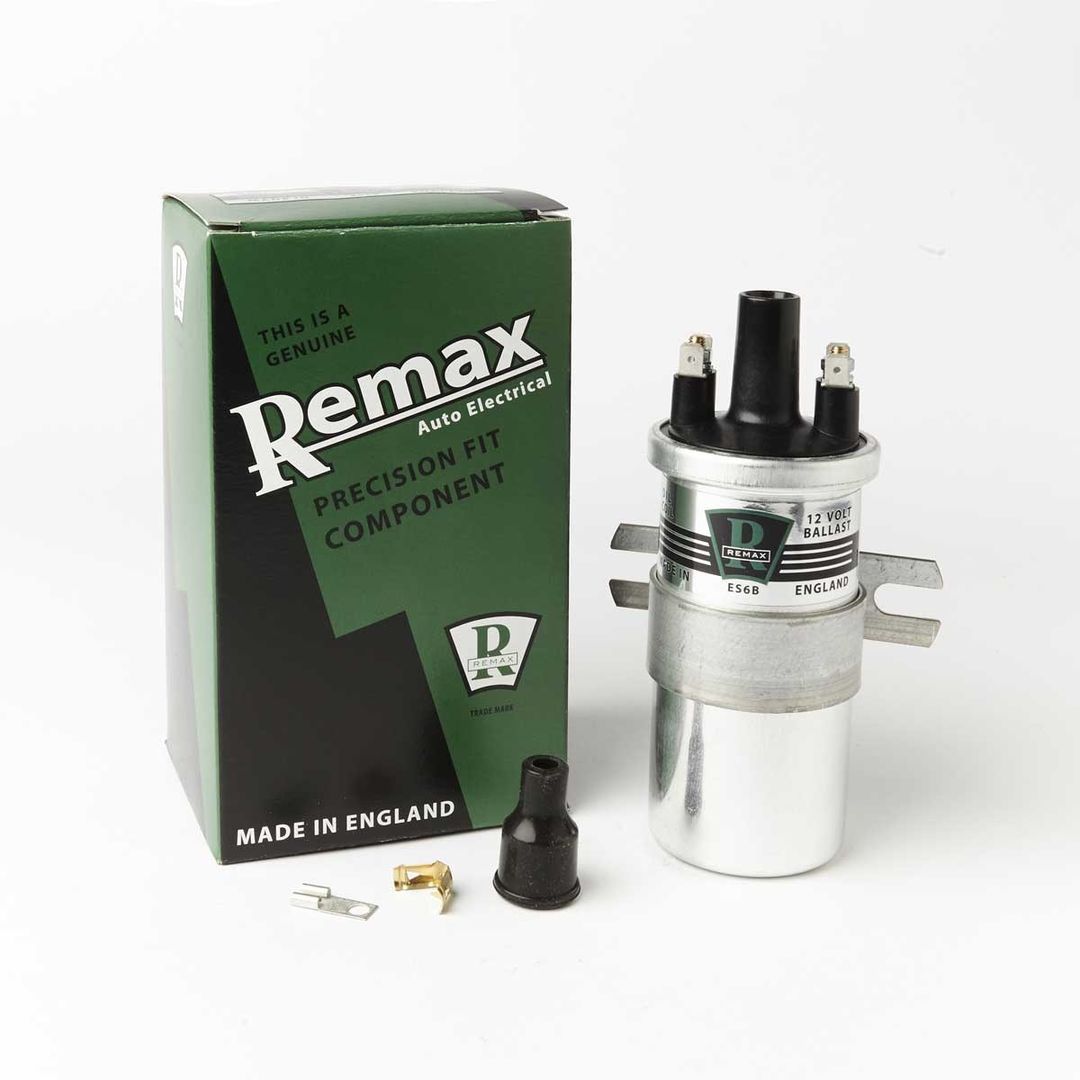

Supplied with the following:

Crimp push in terminal,  Coil boot, 2x M5 terminal nuts & washers, 2x Double male spade terminals, Mounting Bracket
