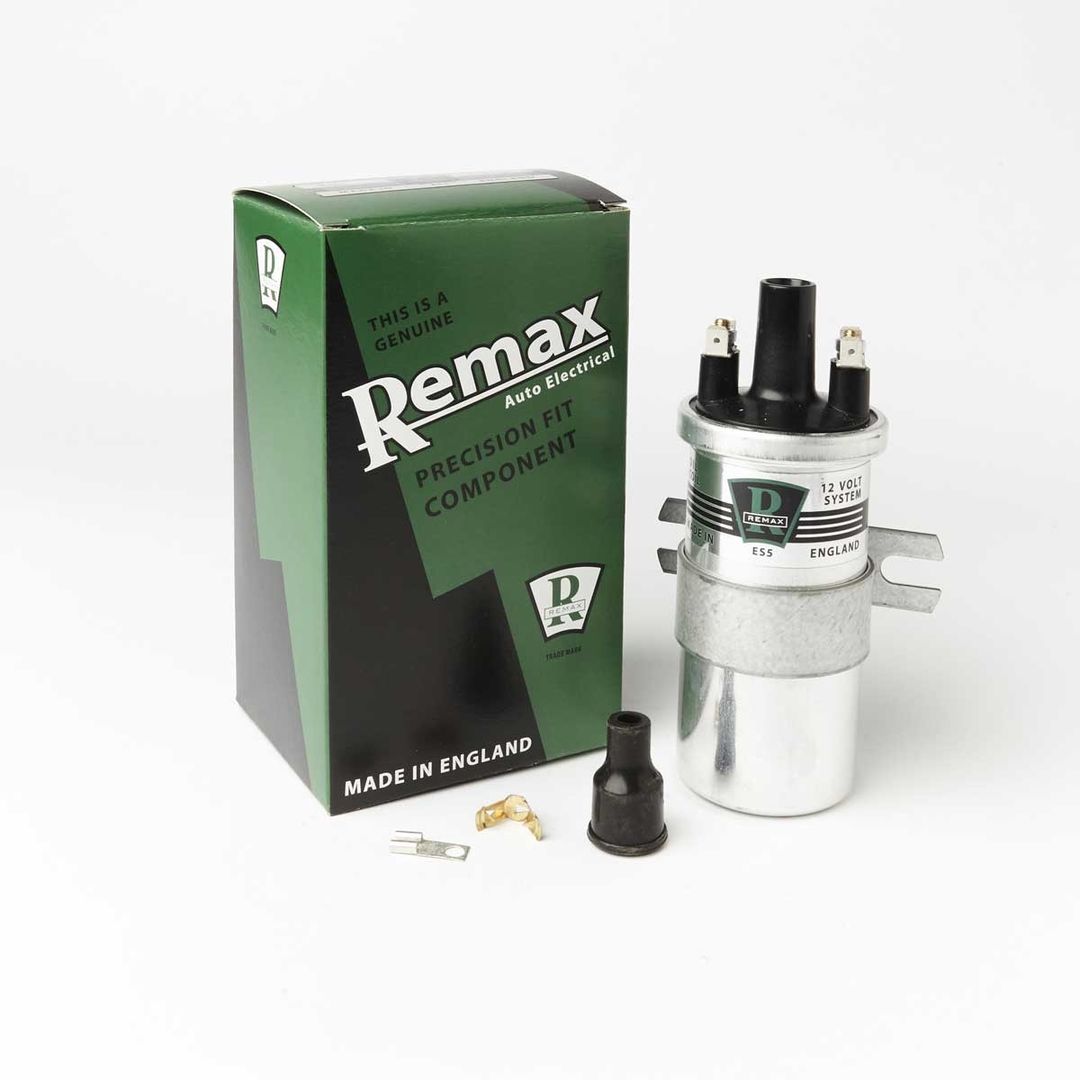

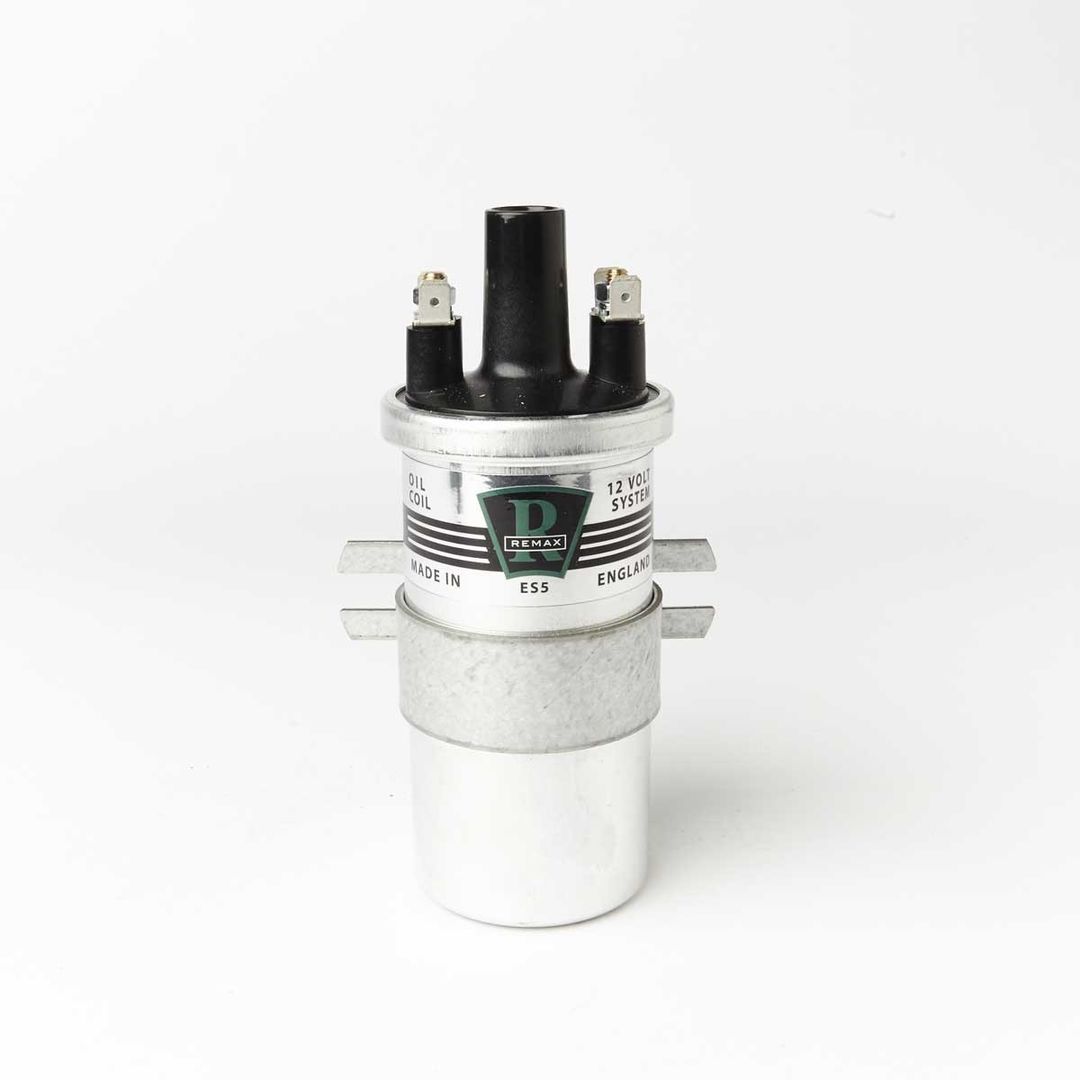

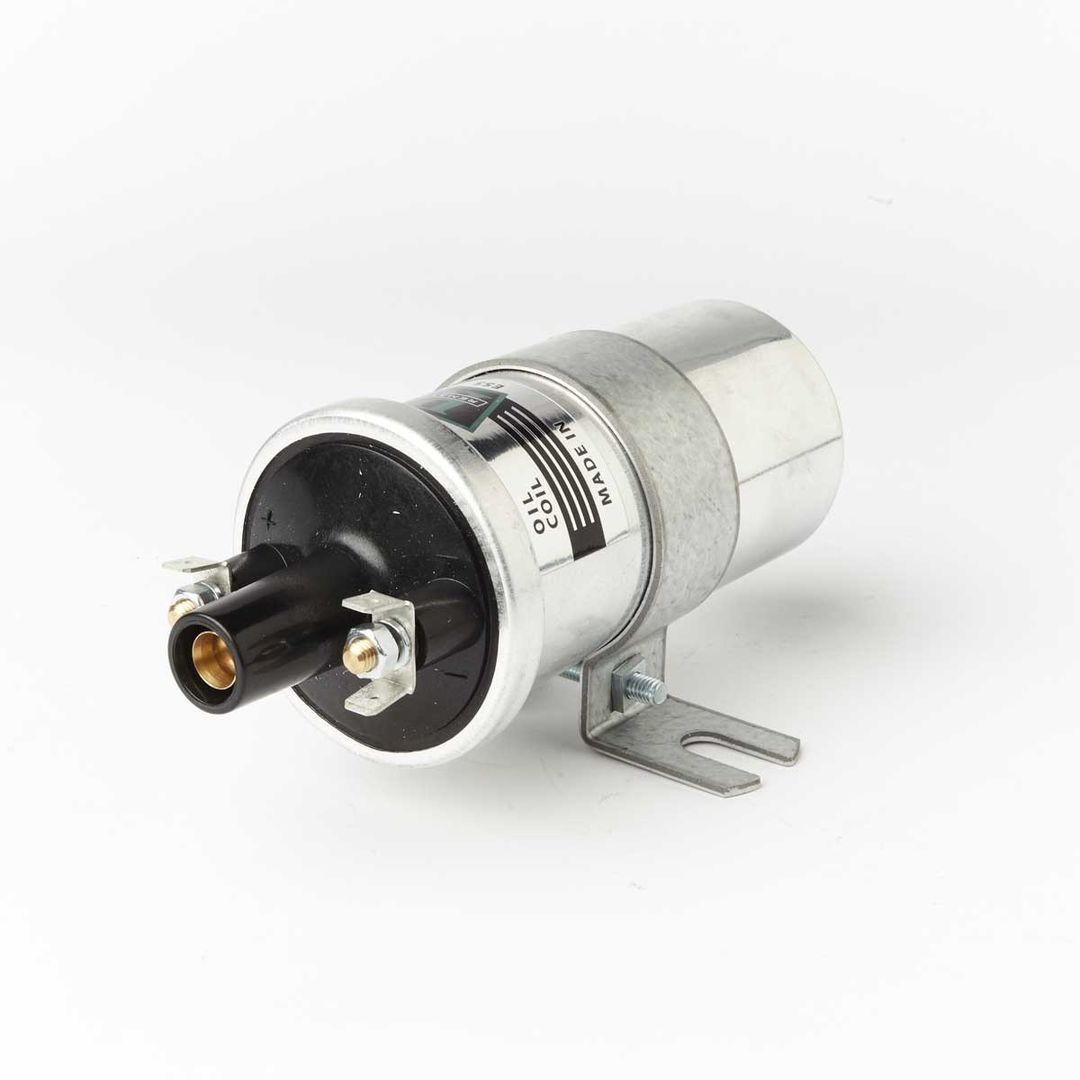

Remax ES5 Ignition 12V Coil Push In

Ignition coil, Remax ES5.  Made In England.

• 12V Standard coil
• For 12 volt systems with conventional ignition Push in type HT connection applications.
• Oil filled coil
• Push in HT connector.
• No of poles 2
• Primary resistance Ohm 2.955
• Secondary resistance KOhm 9.16
• Output voltage @25pF/1M = 8,280 Volts
• Replaces Lucas DLB101

Supplied with the following:

Crimp push in terminal, Coil boot,  2x M5 terminal nuts & washers, 2x Double male spade terminals, Mounting Bracket
