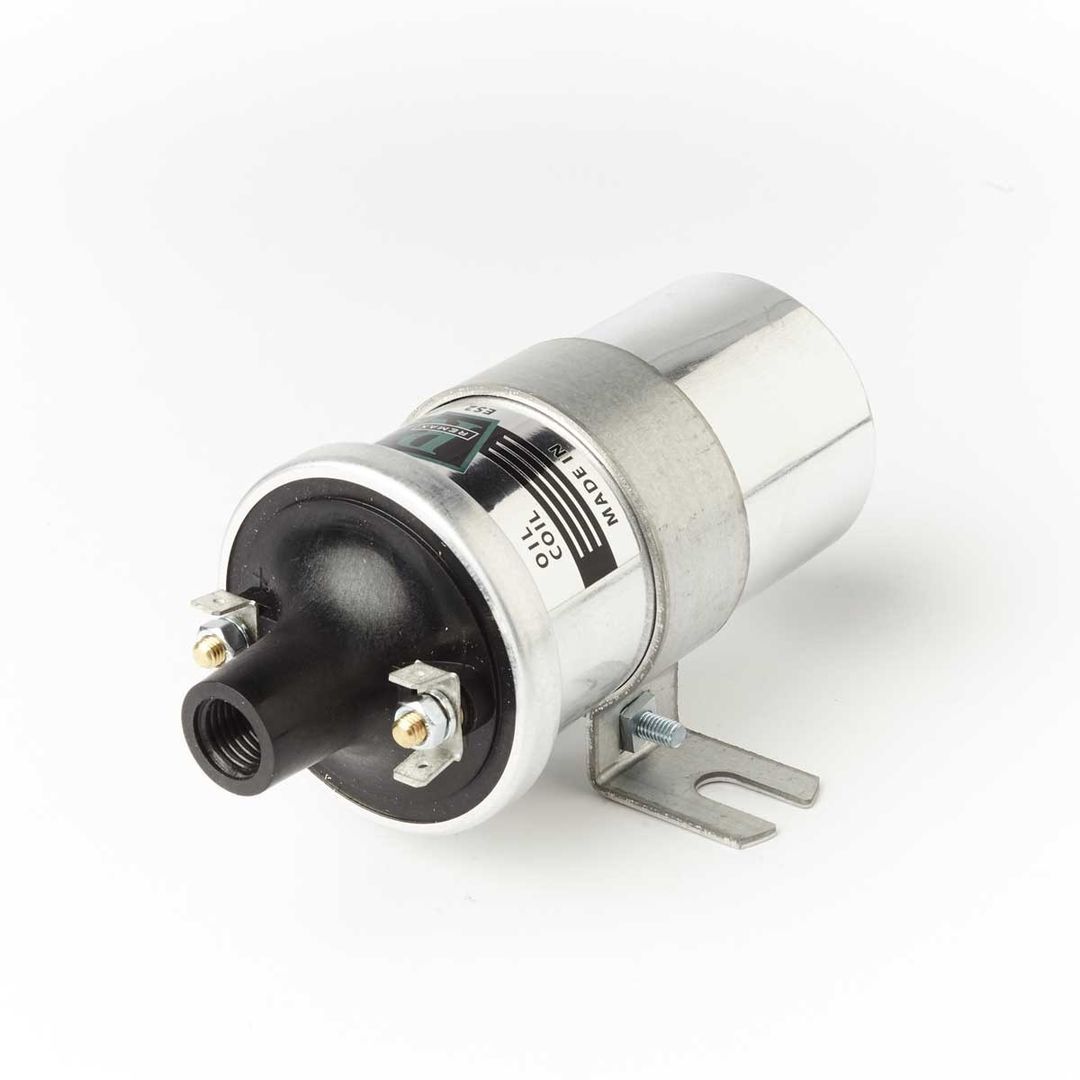

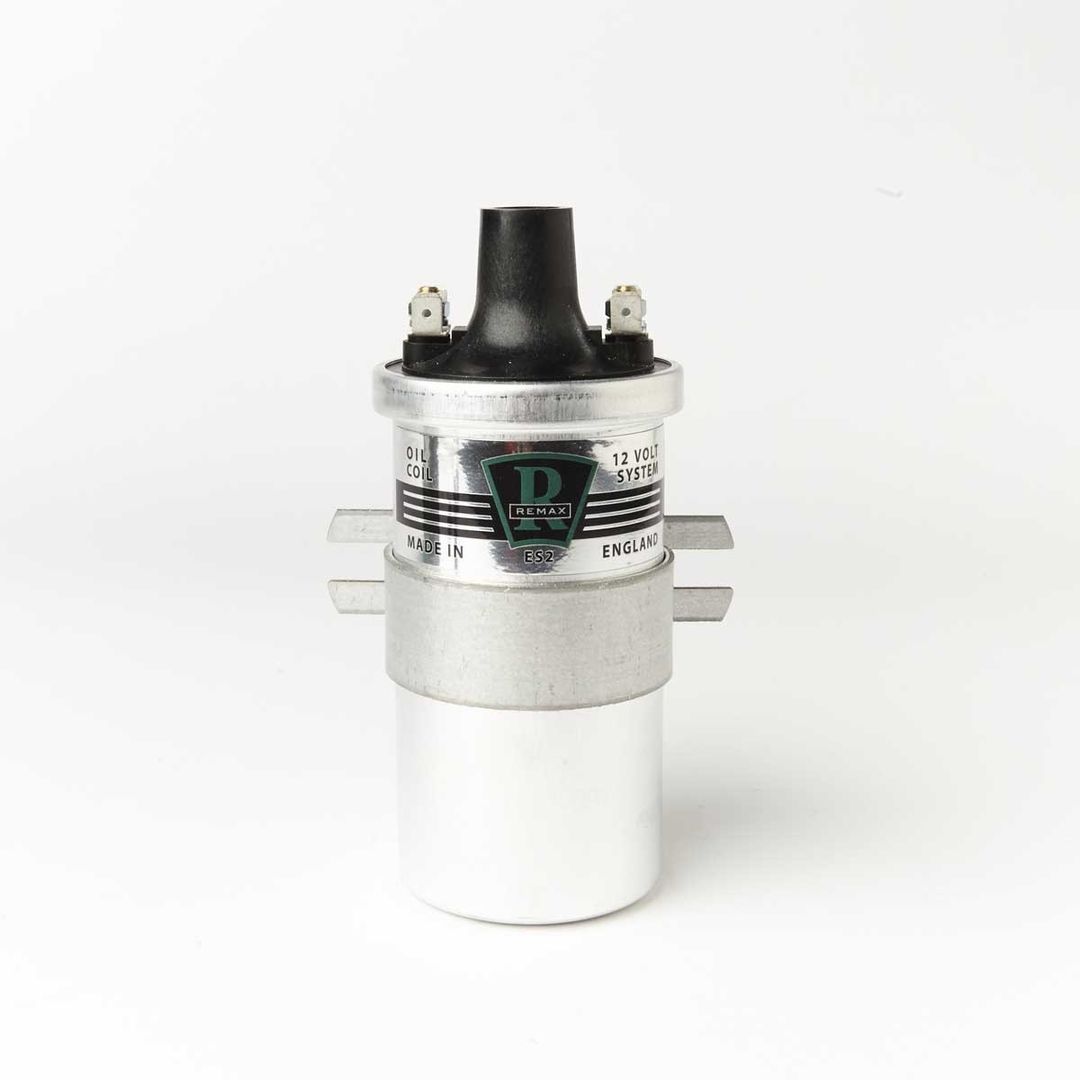

Remax ES2 12V Acorn Coil
Description
Ignition coil, Remax ES2. Made In England.
- 12V Standard coil
- For 12 volt systems with conventional ignition screw type HT connection applications.
- Oil filled coil
- Acorns and split washer HT connector.
- No of poles 2
- Primary resistance Ohm 3.455
- Secondary resistance KOhm 6.8
- Output voltage @25pF/1M = 9,540 Volts
- Replaces Lucas DLB100, LA12, HA12

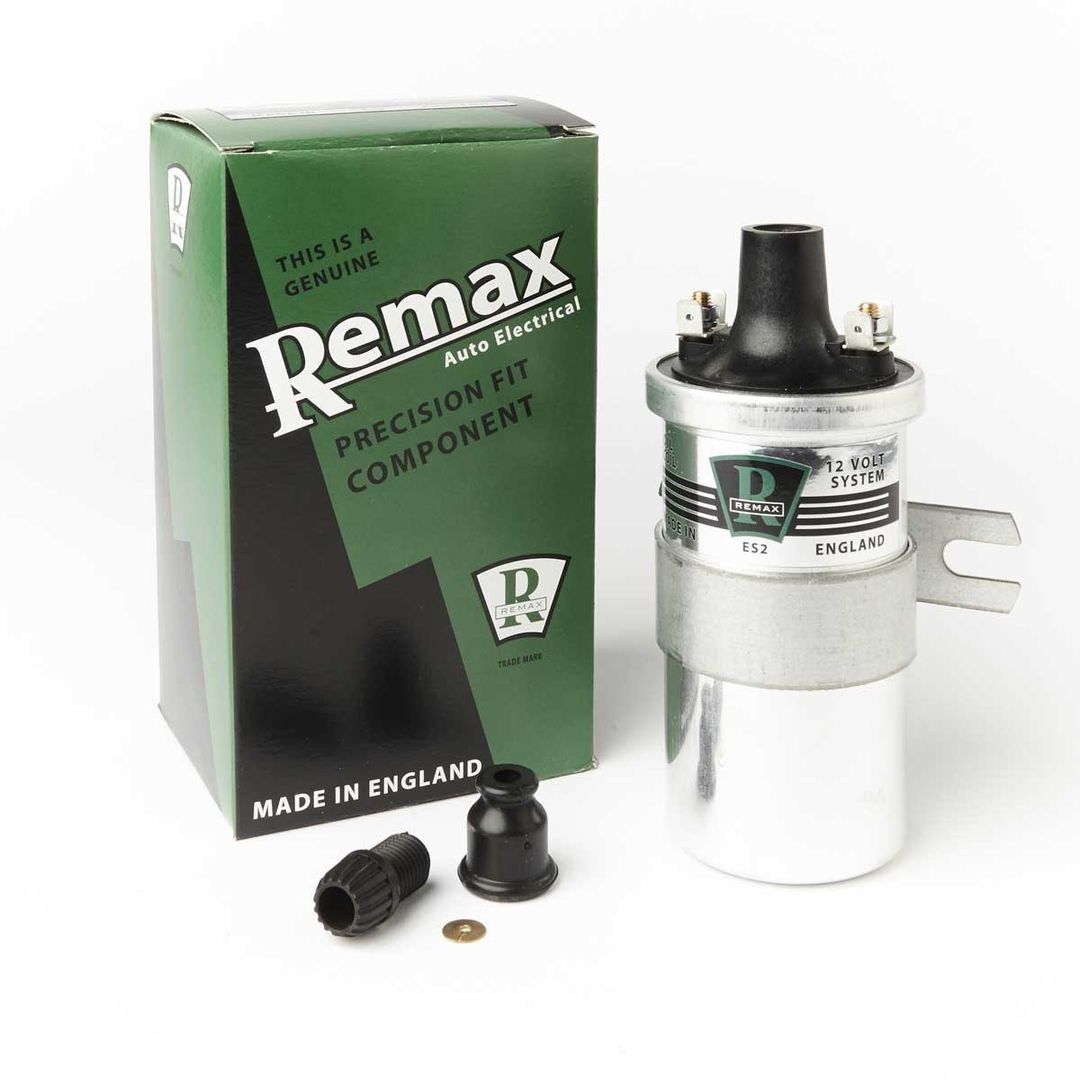

Supplied with the following:
Long Acorn, Split Washer, Old style coil boot, 2x M5 terminal nuts & washers, 2x Double male spade terminals, Mounting Bracket
