Radiator Fans - Suction

Description

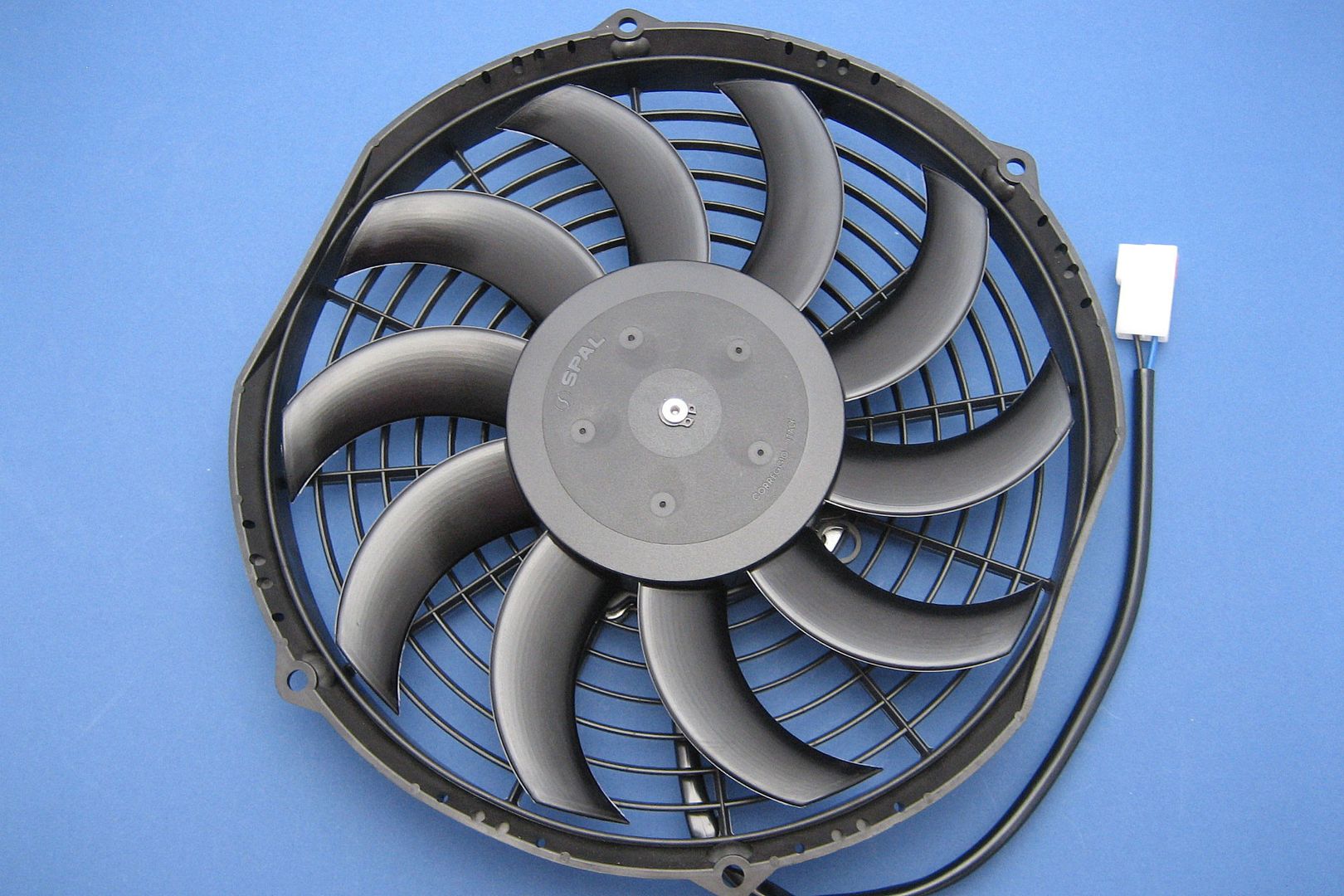

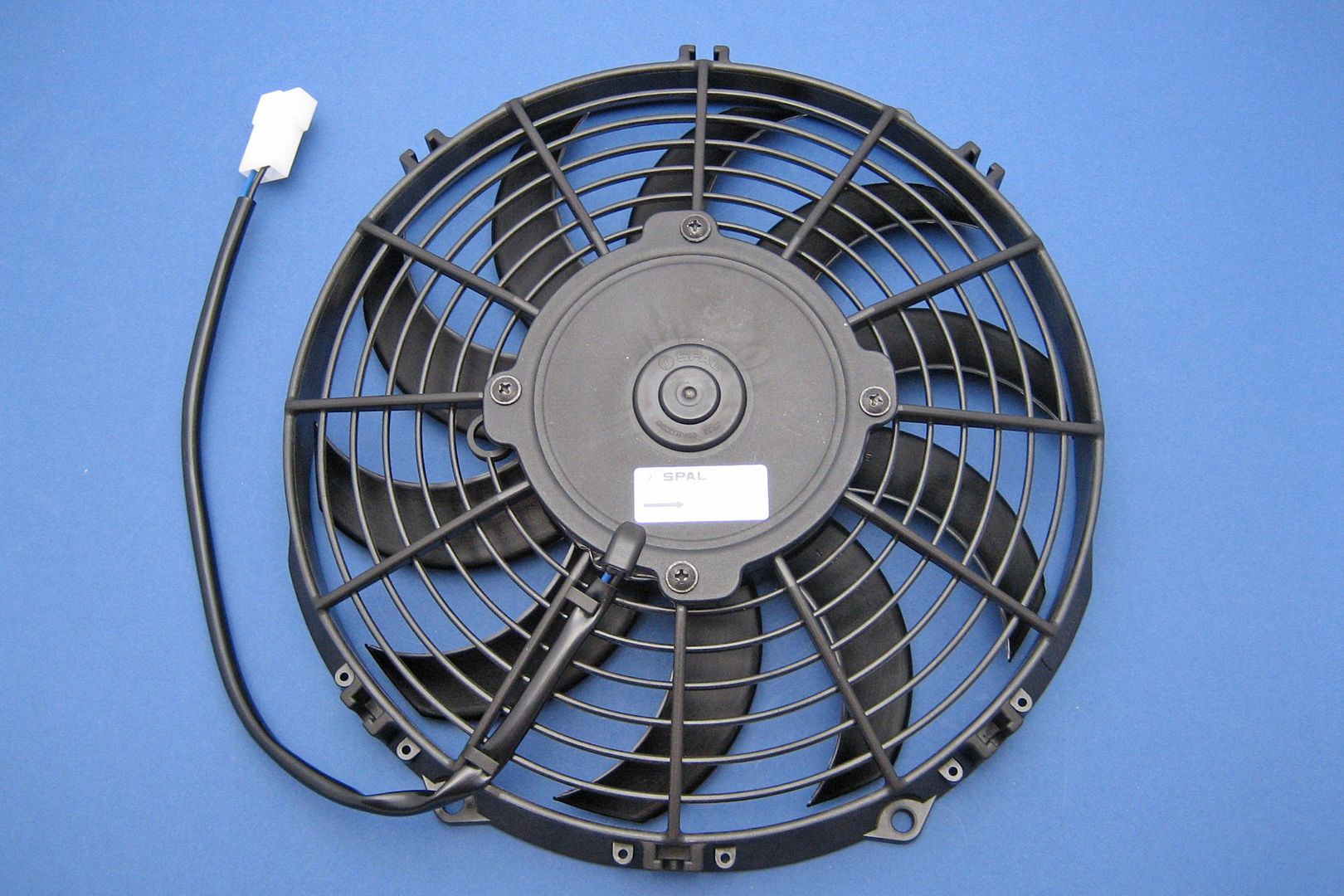

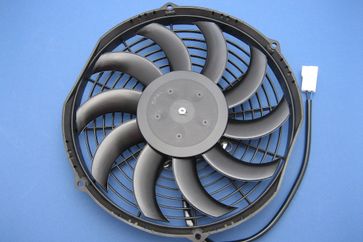

A Range of 4 Spal radiator fans of different diameters (9,10,11 & 12")  and air flow rates. All fans in this section suck the air - ie are for mounting on the rear of a radiator. Spal fans are manufactured in Italy, have motors that are sealed to IP58 and have low noise blades. The basic specifications for each size unit is listed below, but also there are PDF attachments on this page for each model giving further details.

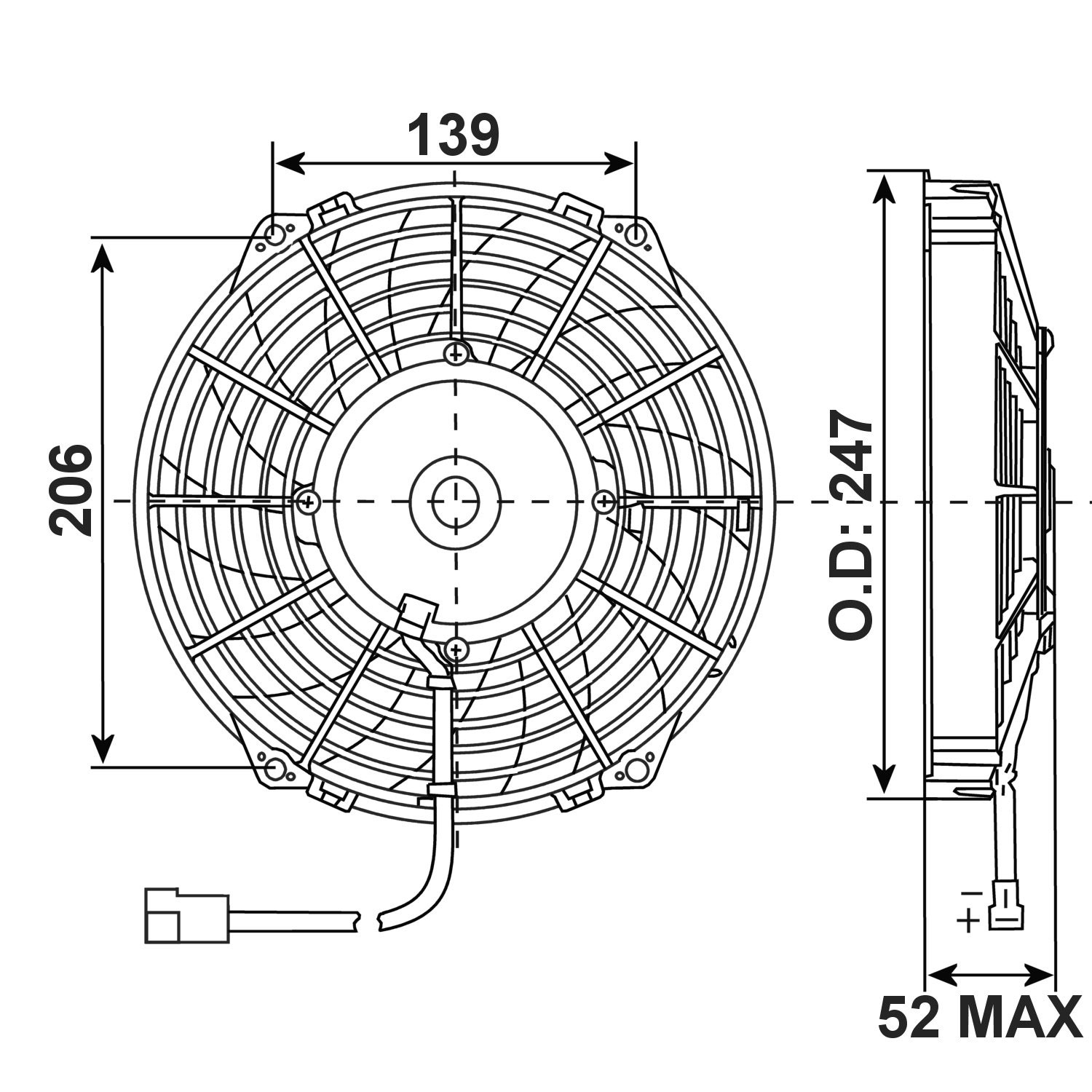

  • 9" unit , 1060m³/hr max flow, 6.7A, overall depth 52mm - Part number 190301

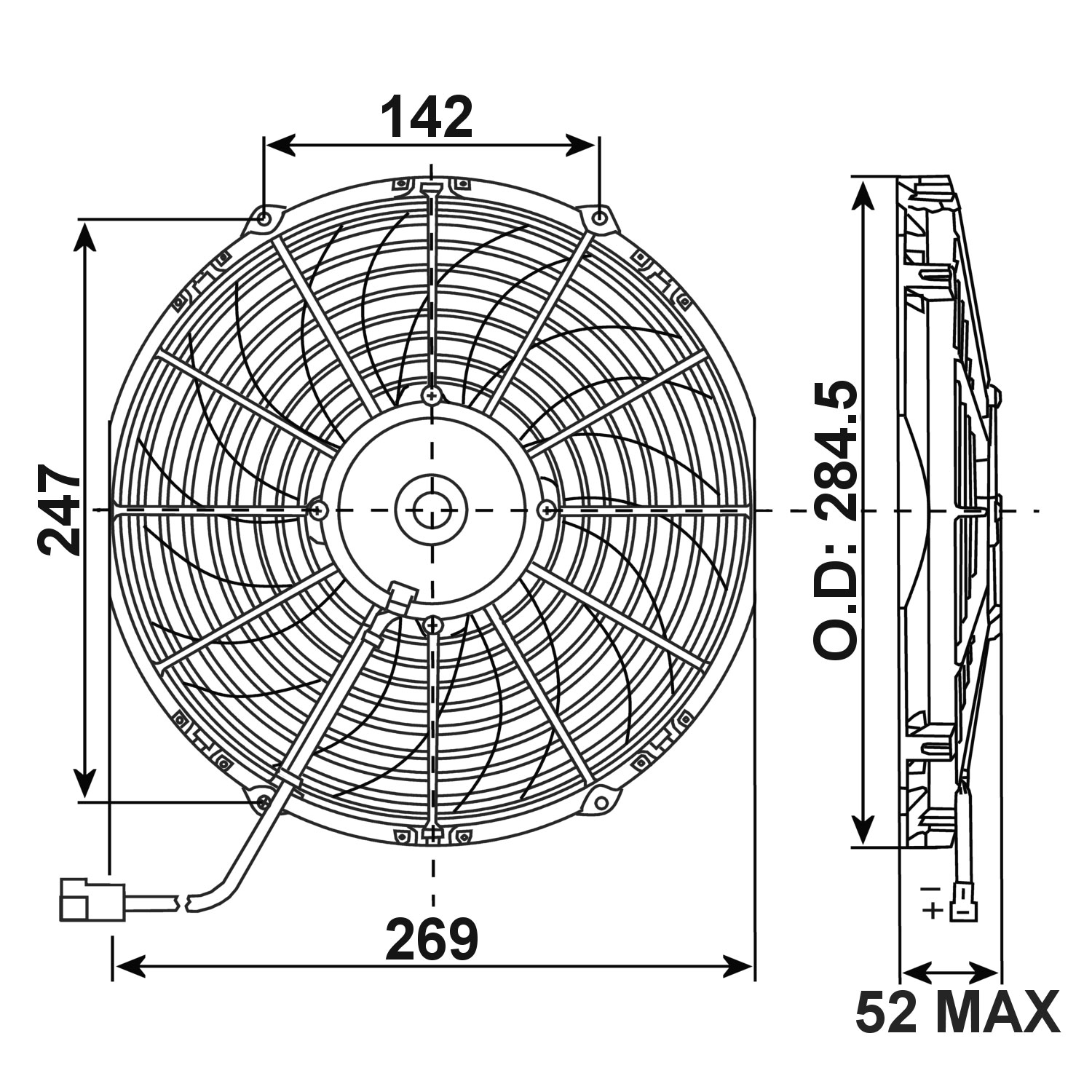

  • 10" unit, 1360m³/hr max flow, 8.7A, overall depth 52mm - Part number 190302

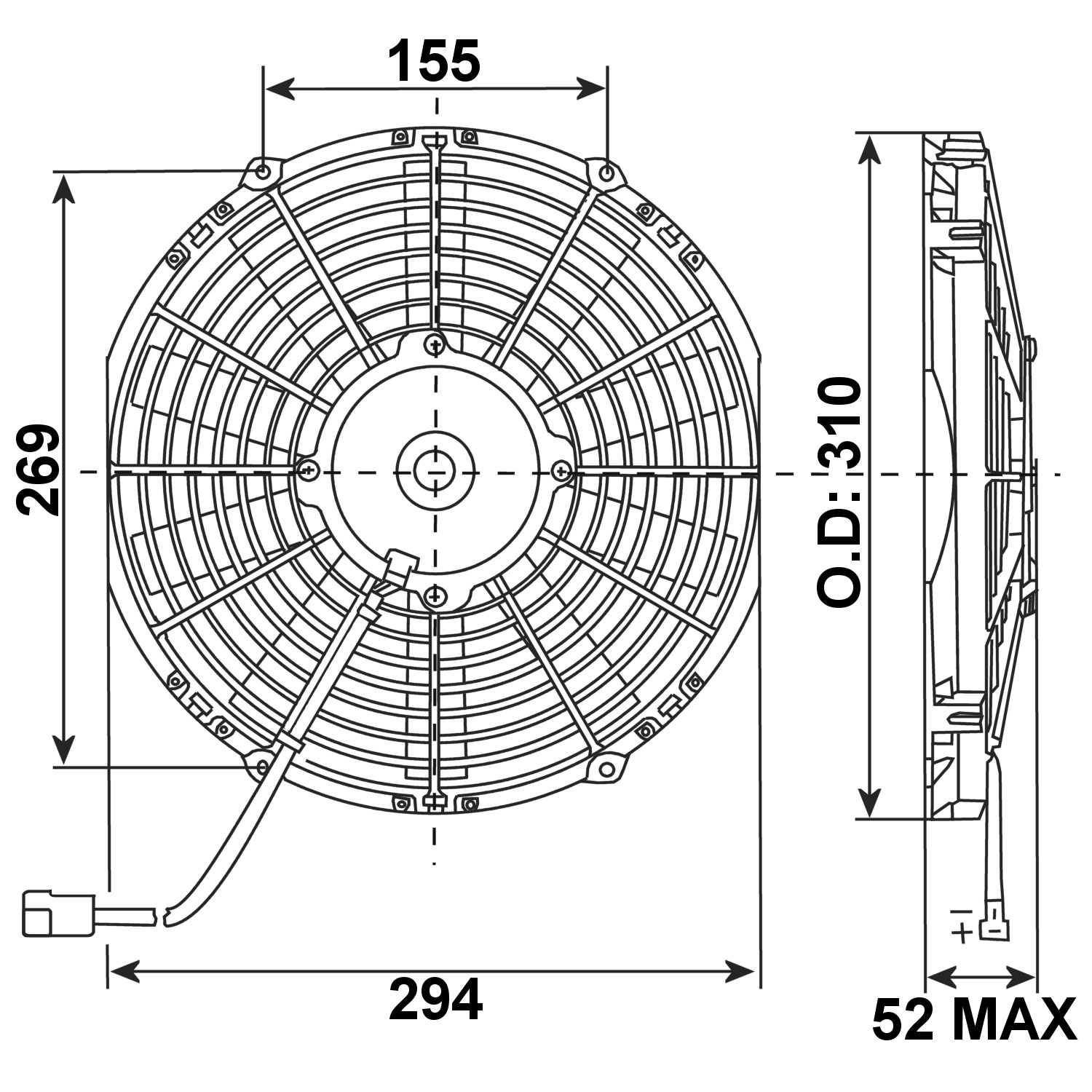

  • 11" unit, 1390m³/hr max flow, 7.8A, overall depth 52mm - Part number 190303

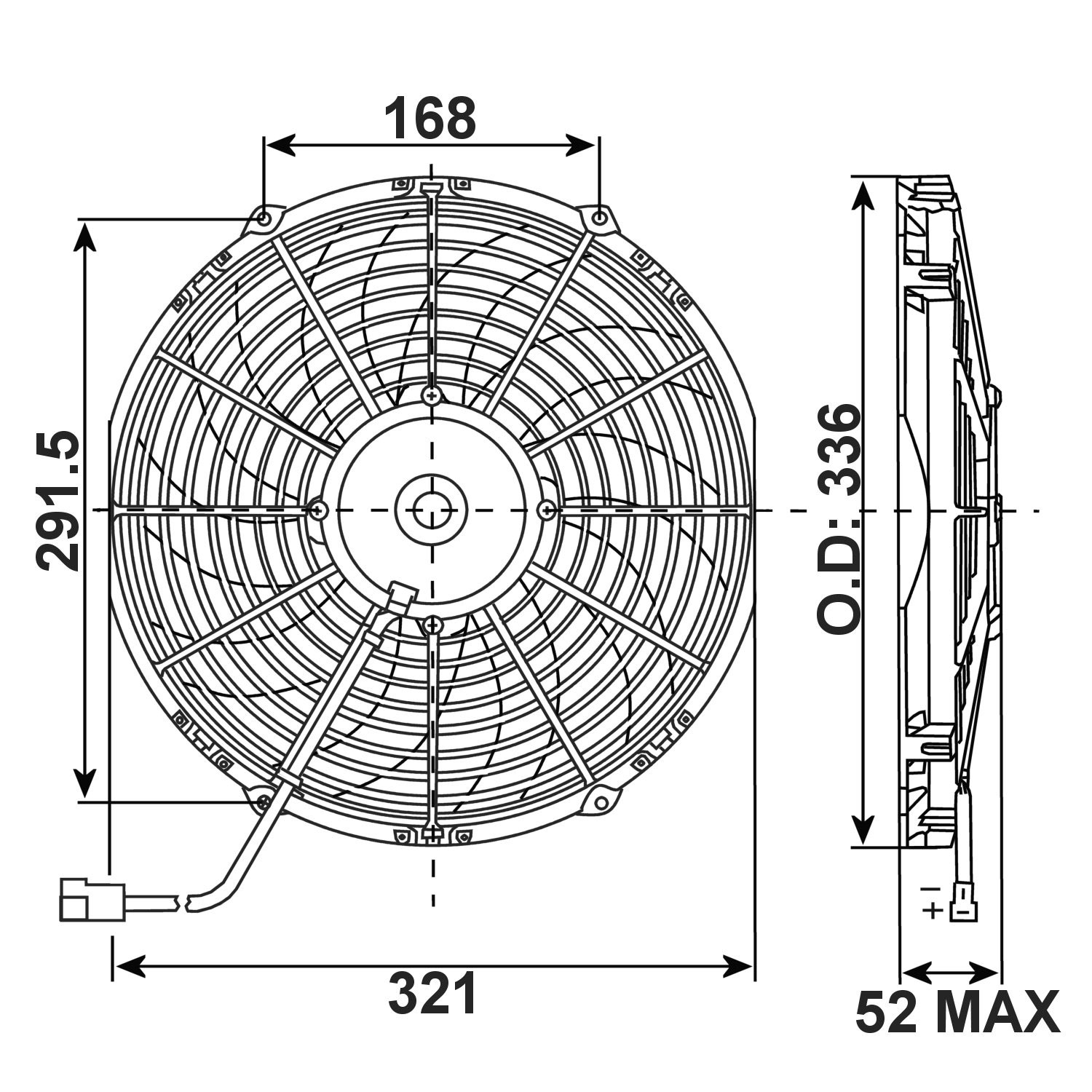

  • 12" unit, 1540m³/hr max flow, 6.7A, overall depth 52mm - Part number 190304

Options


Spal 9" (225mm) Fan
Stockcode: 190301
£86.19
exc VAT
(each)
In Stock
Spal 10" (255mm) Fan
Stockcode: 190302
£87.82
exc VAT
(each)
In Stock
Spal 11" (280mm) Fan
Stockcode: 190303
£85.86
exc VAT
(each)
In Stock
Spal 12" (305mm) Fan
Stockcode: 190304
£90.10
exc VAT
(each)
In Stock
