Programmable voltage sensitive relay
Description
12V 160A programmable voltage sensitive relay.
- Easily programmed by pressing an integral button, so that different make and break voltages can be set.

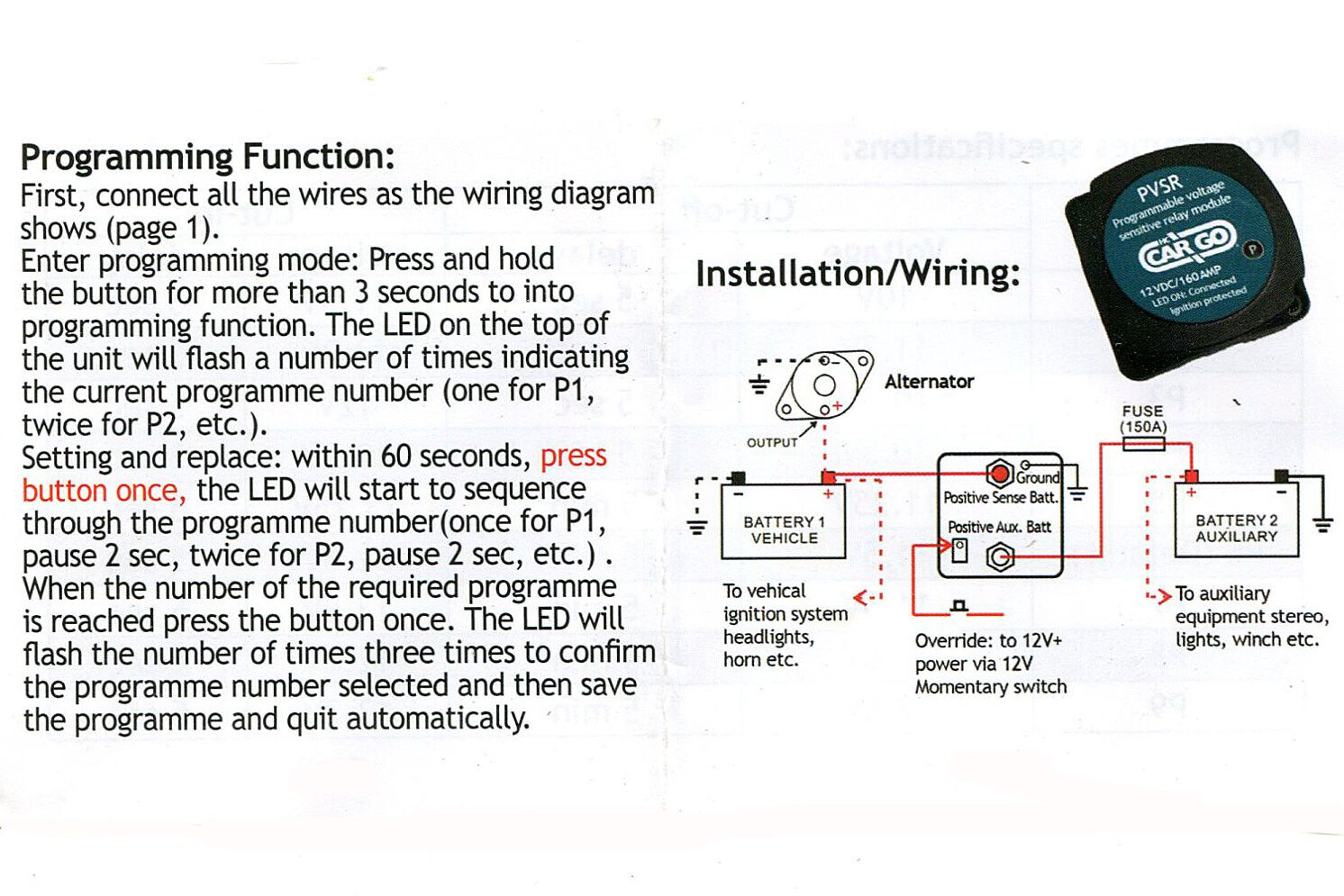

- Ideal for connecting a secondary battery to the primary battery when the voltage reaches the set value (Cut-in).
- Secondary battery will be disconnected when the voltage drops to the lower value (Cut-out).

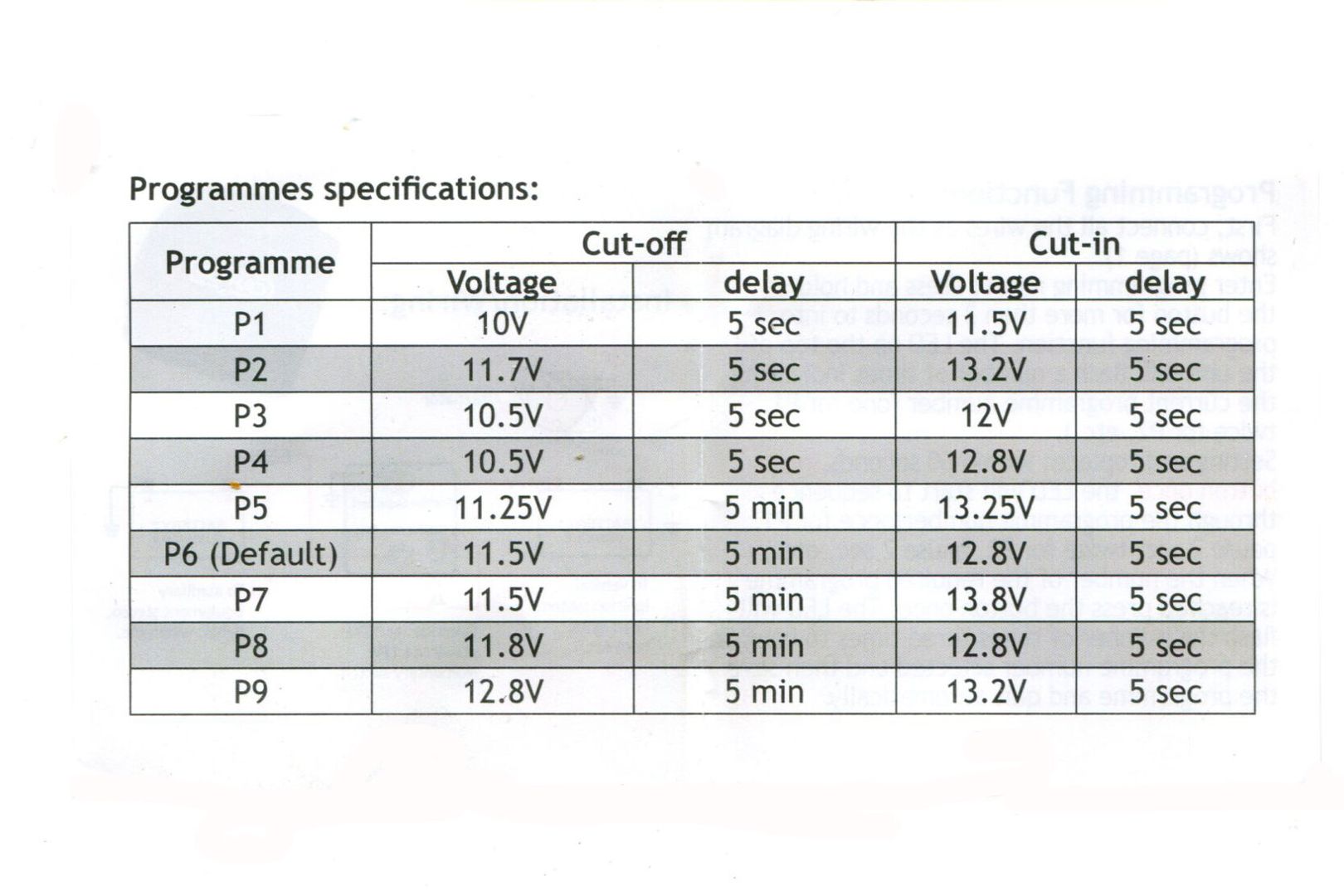

- 9 voltage combinations available as shown in the chart.

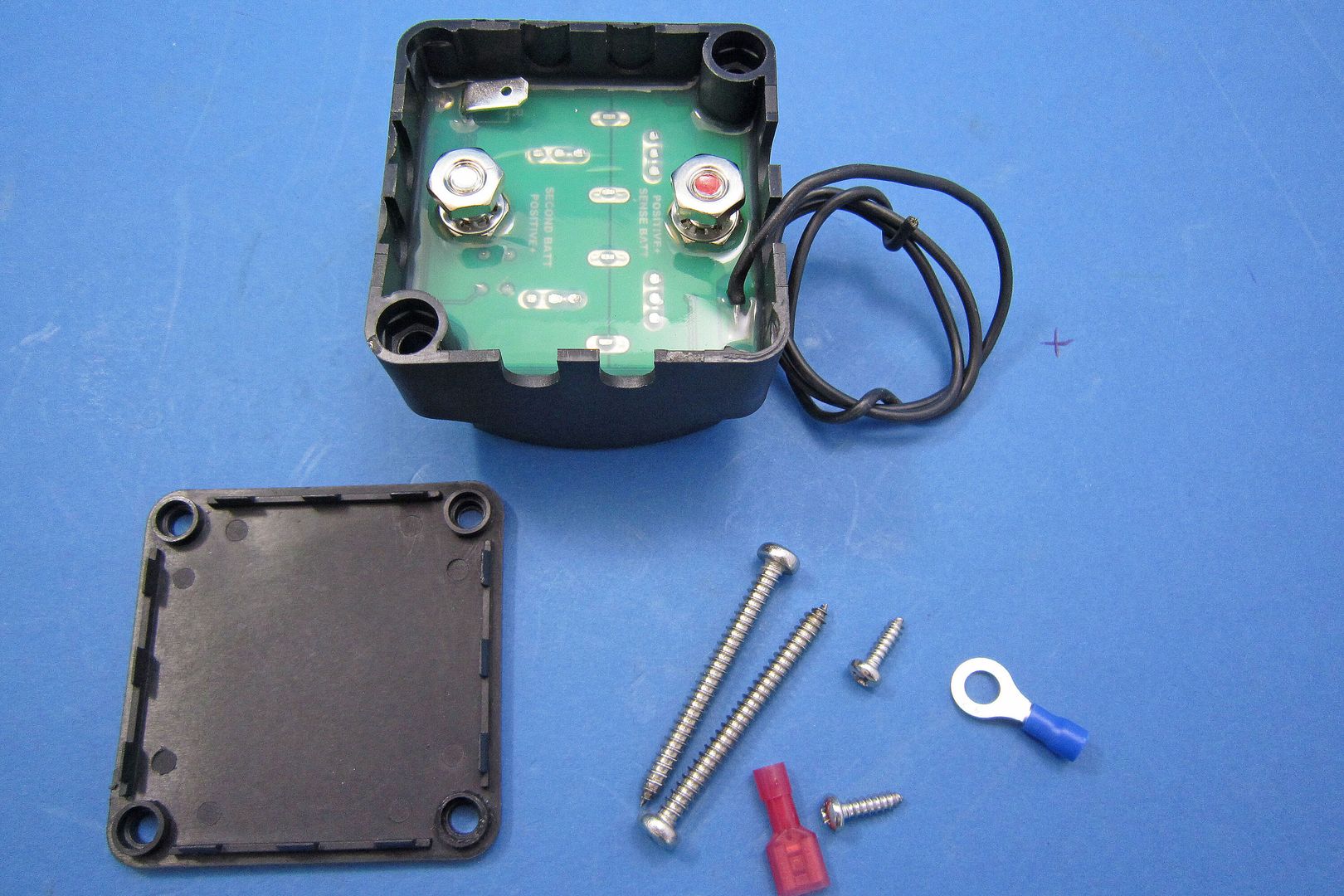

- Supplied with fixings and terminals.
