Panel Mounted

Description

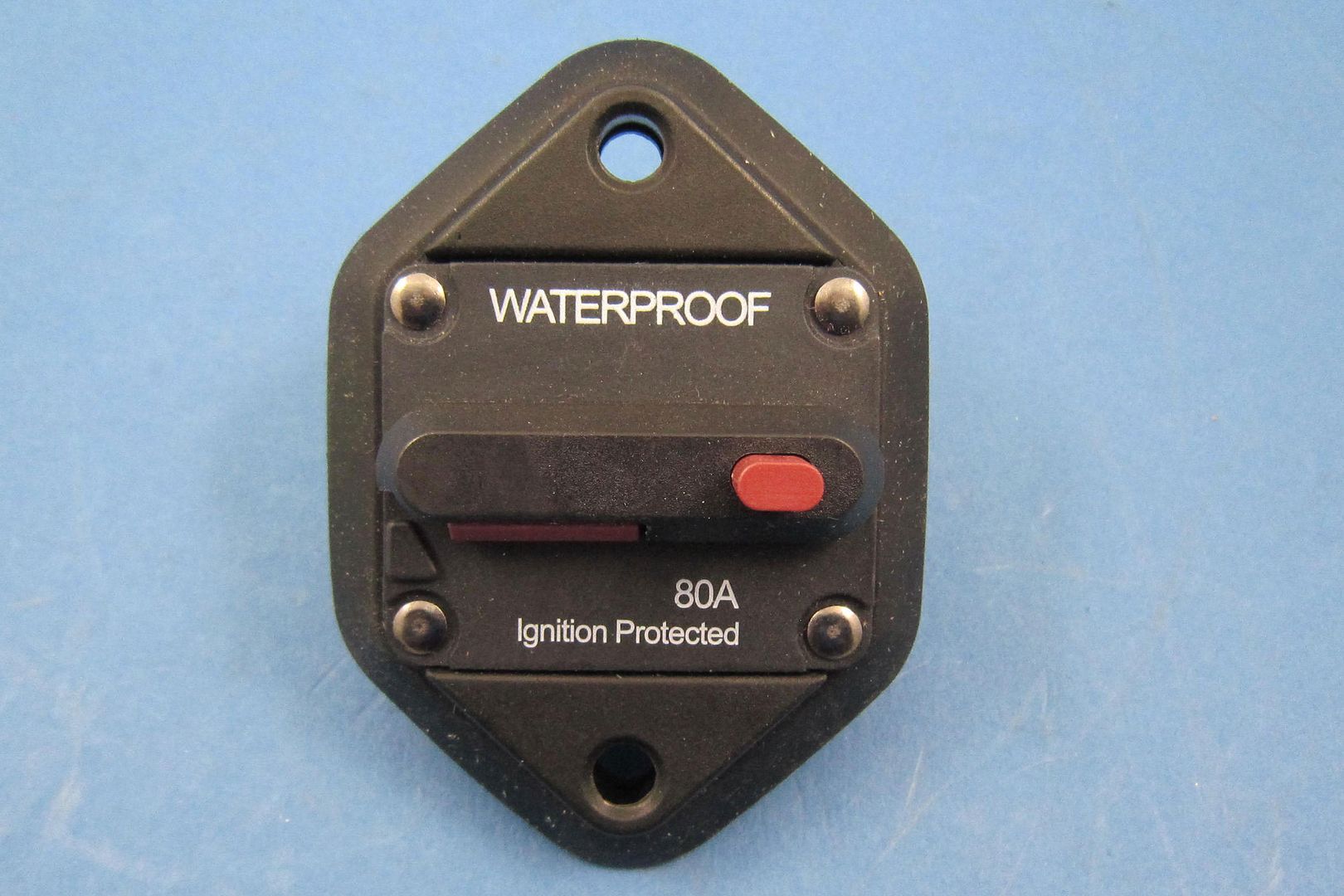

A range of panel mounted circuit breakers (supplied with rubber sealing gaskets) incorporating a push button that can be used to break the circuit and a reset lever to manually remake the circuit. (This reset lever automatically flips downwards to indicate that the unit has tripped). These breakers are very similar to the surface mounted versions.

These breakers are sealed and are therefore suitable for use in engine compartments and bilge areas in boats as well as being suitable to protect auxillary circuits in trucks, buses and marine applications. Max voltage 48V DC. Made in USA.

2 x 6.5mm diameter mounting holes.

  • Compliances: SAE J1171 (ignition protected), SAE J1625
  • Ingress Protection: IP67
  • Voltage: 48V DC
  • Interrupt Rating: 3000A @ 30V DC
  • Operating Temp: -32°C to 82°C
  • Storage Temp: -34°C to 149°C
  • Material: Black UL-rated 94V0 thermoset plastic

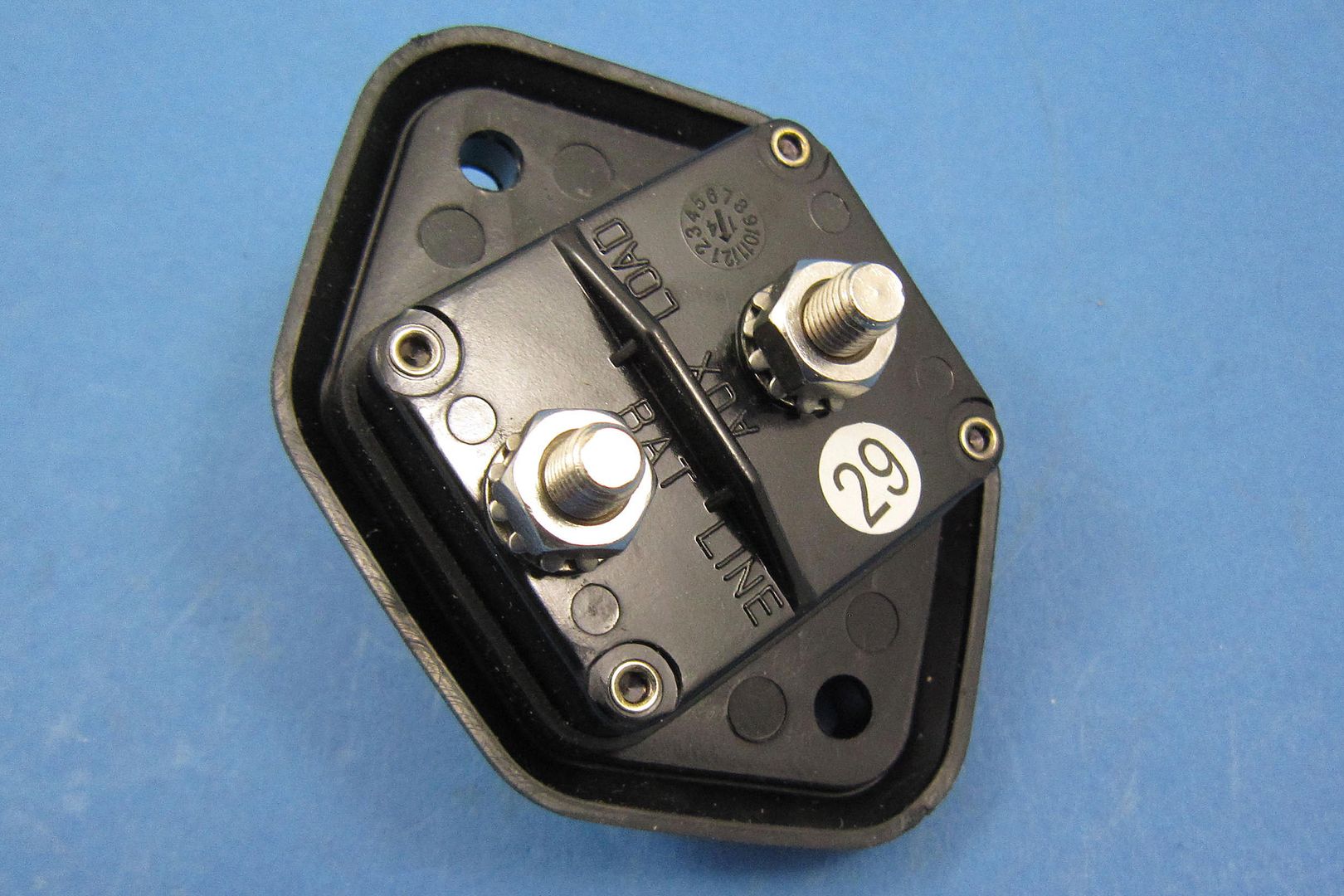

  • Rear mounted 6mm stainless steel studs

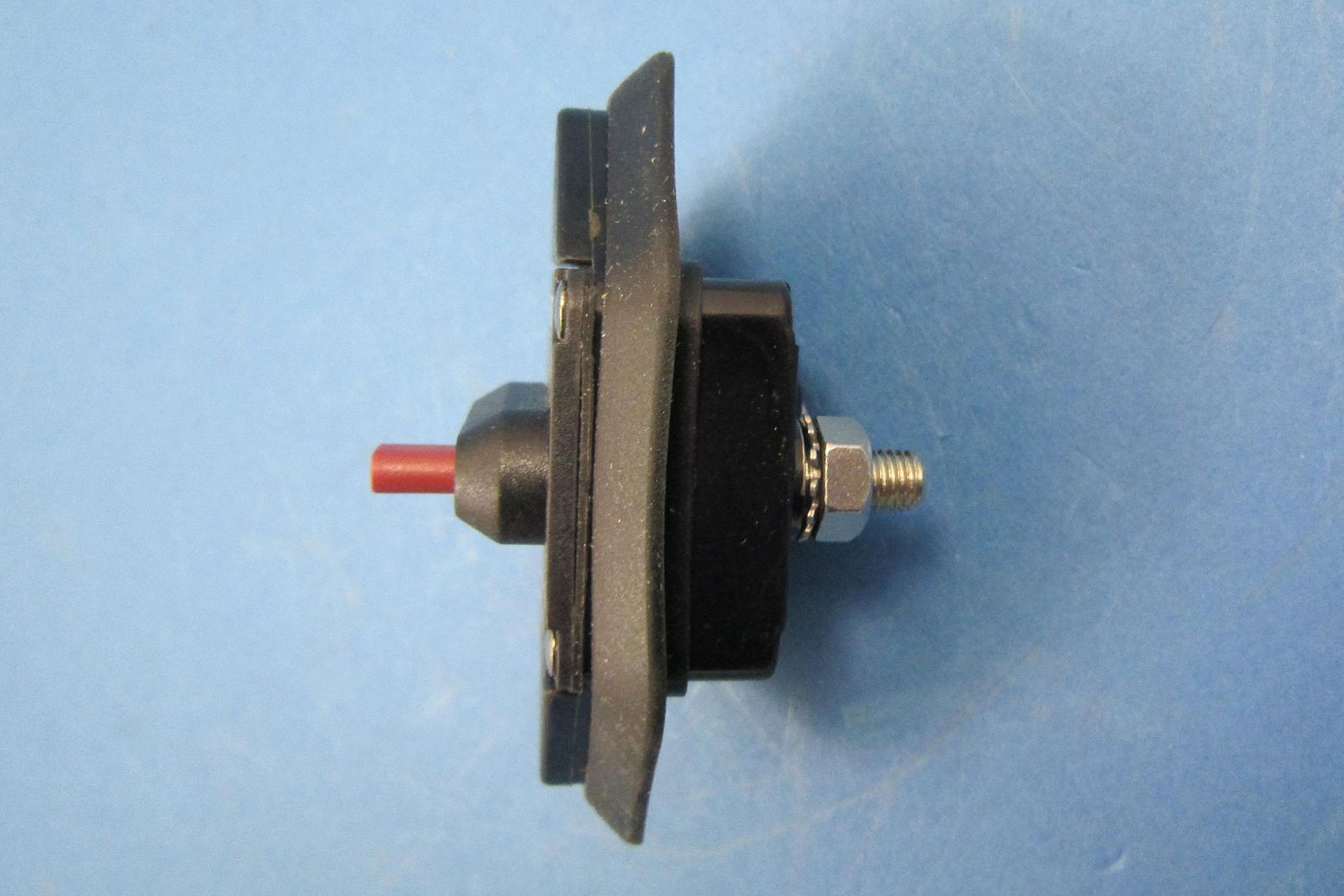

  • 60mm x 85mm x 44mm deep (including the push button)

Options


50A Circuit Breaker - Panel Mounted.
Stockcode: 101801
£29.72
exc VAT
(each)
In Stock
80A Circuit Breaker - Panel Mounted.
Stockcode: 101802
£29.72
exc VAT
(each)
In Stock
100A Circuit Breaker - Panel Mounted.
Stockcode: 101803
£29.72
exc VAT
(each)
In Stock
