Mega / Midi Fuse Box

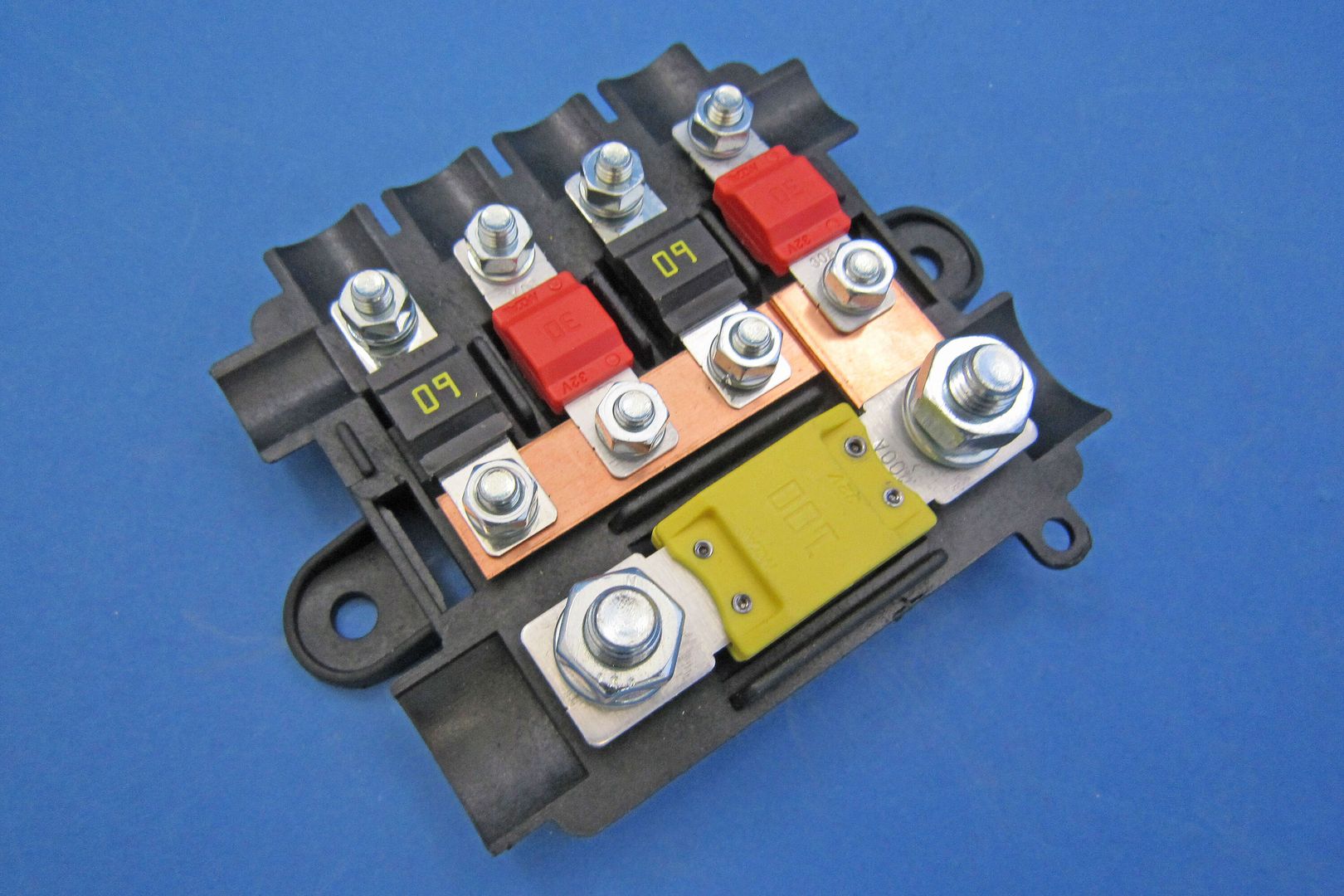

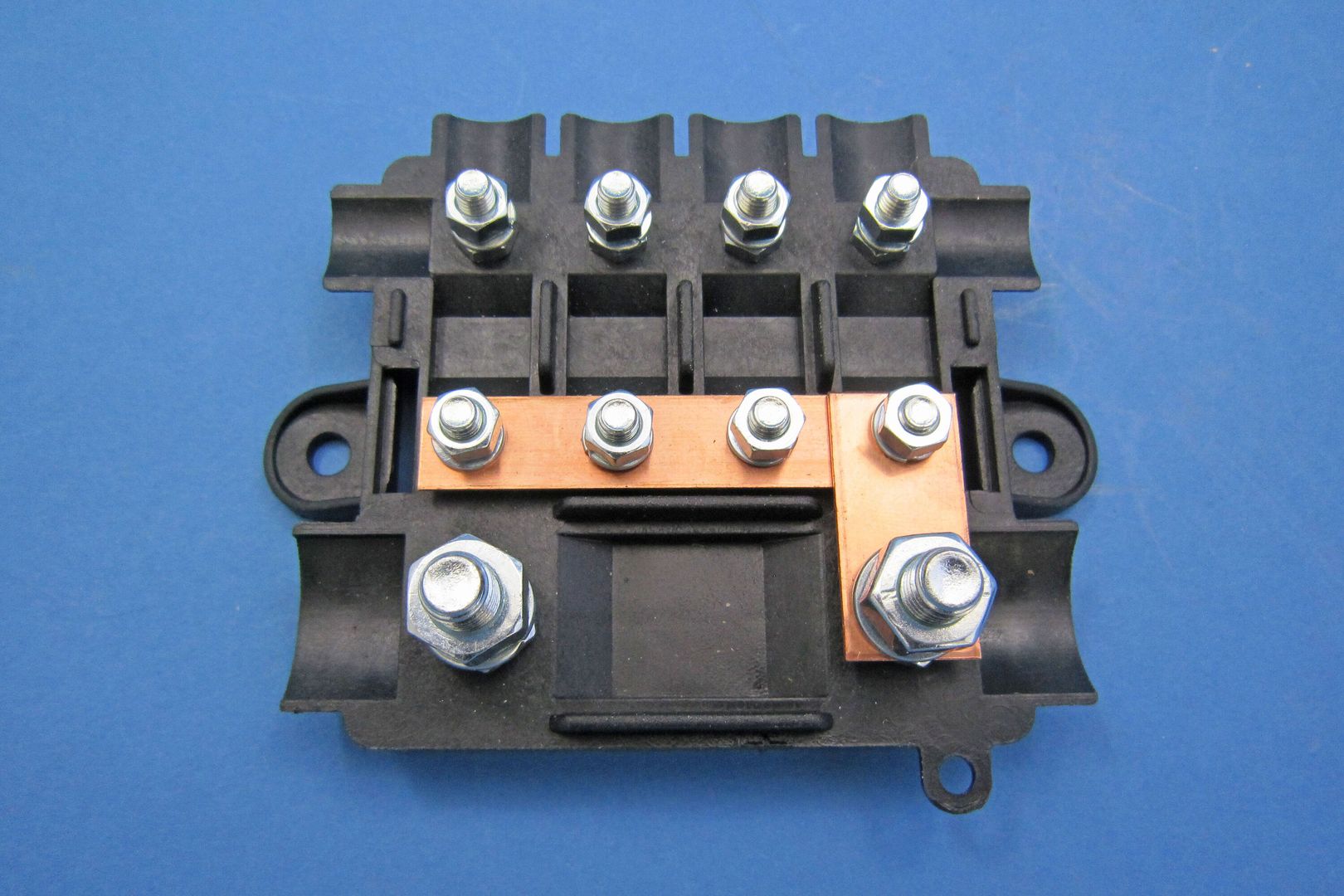

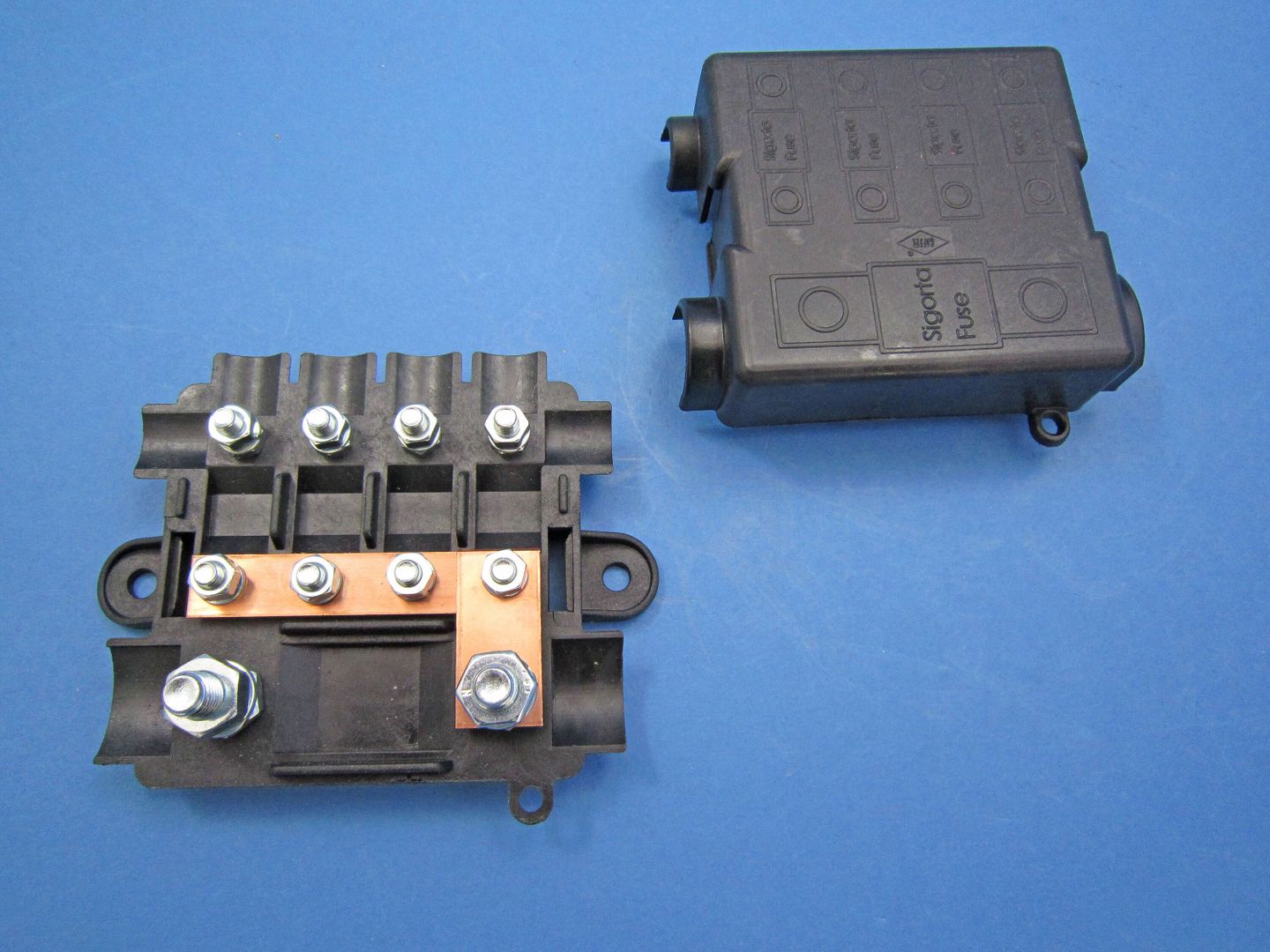

Power distribution fuse box. Contains one Mega fuse holder that then feeds 4 x Midi fuse holders. Has a clip-on lid.

Mega fuse held in by 2 x M8 studs, Midi fuses by M5 studs.

Approximate box dimensions of 90mm x 90mm x 40mm tall. 2 x 6mm mounting holes on 110mm centres.

Fuses not included. Requires 1 x Mega Fuse and 4 x Midi Fuses.
