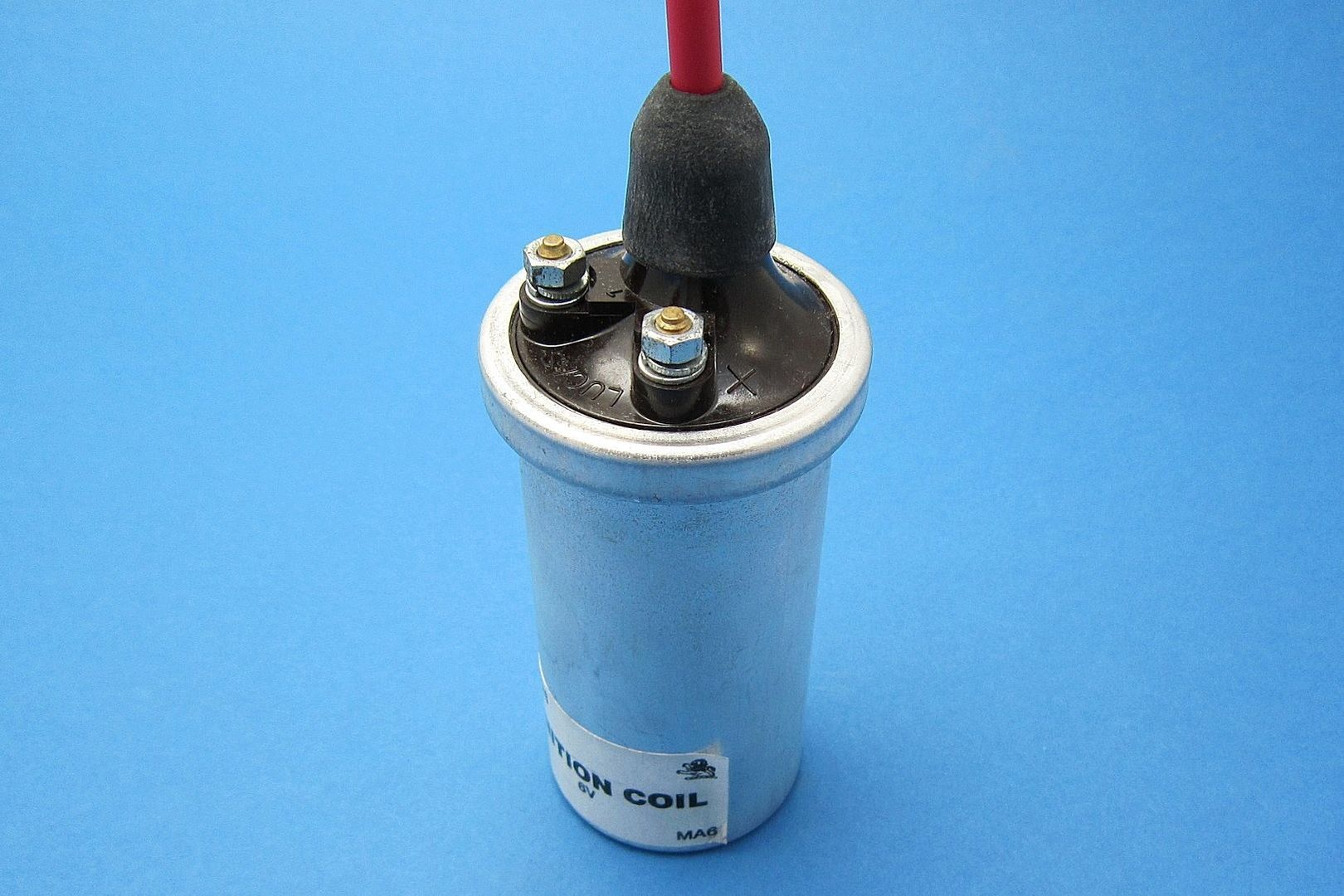

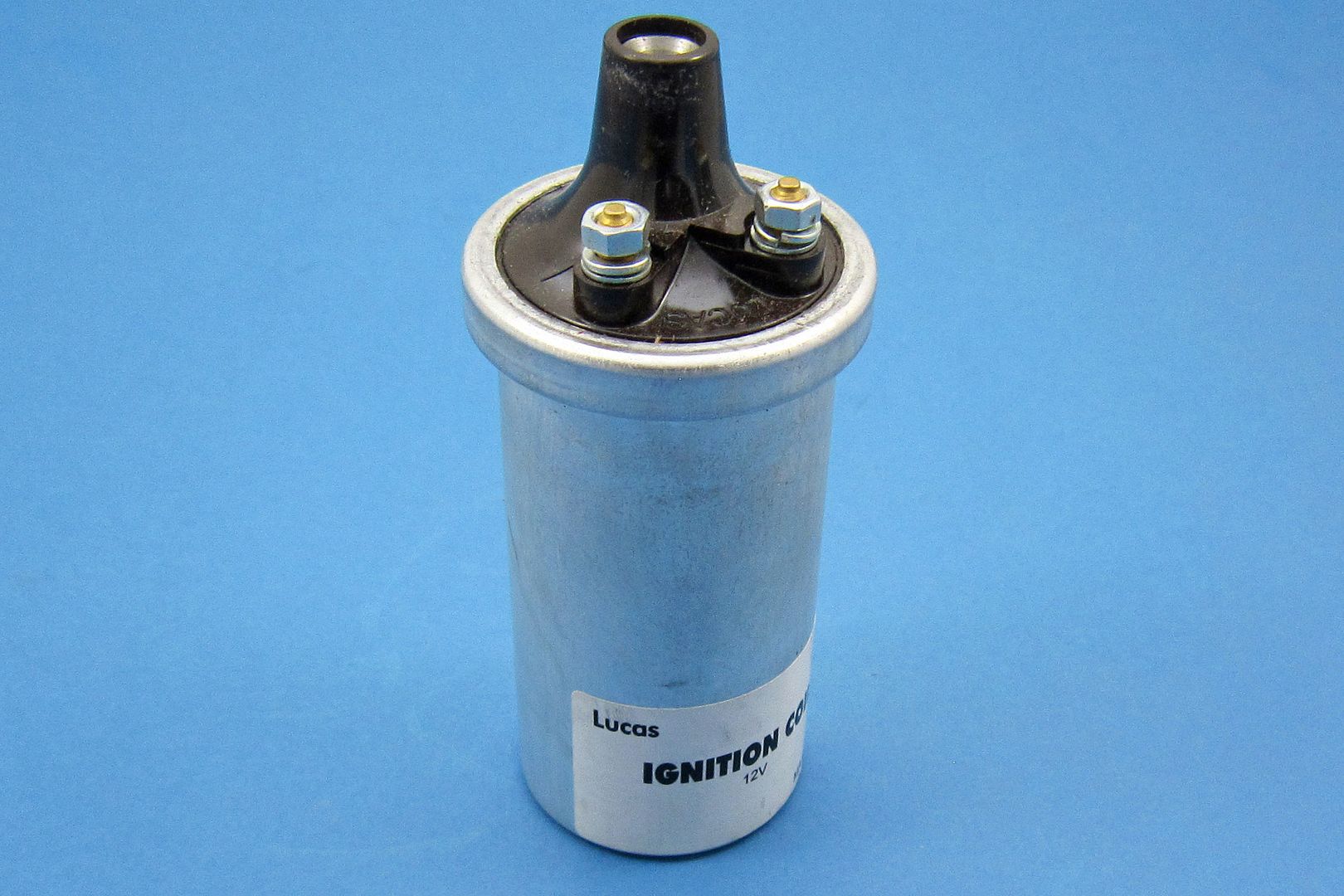

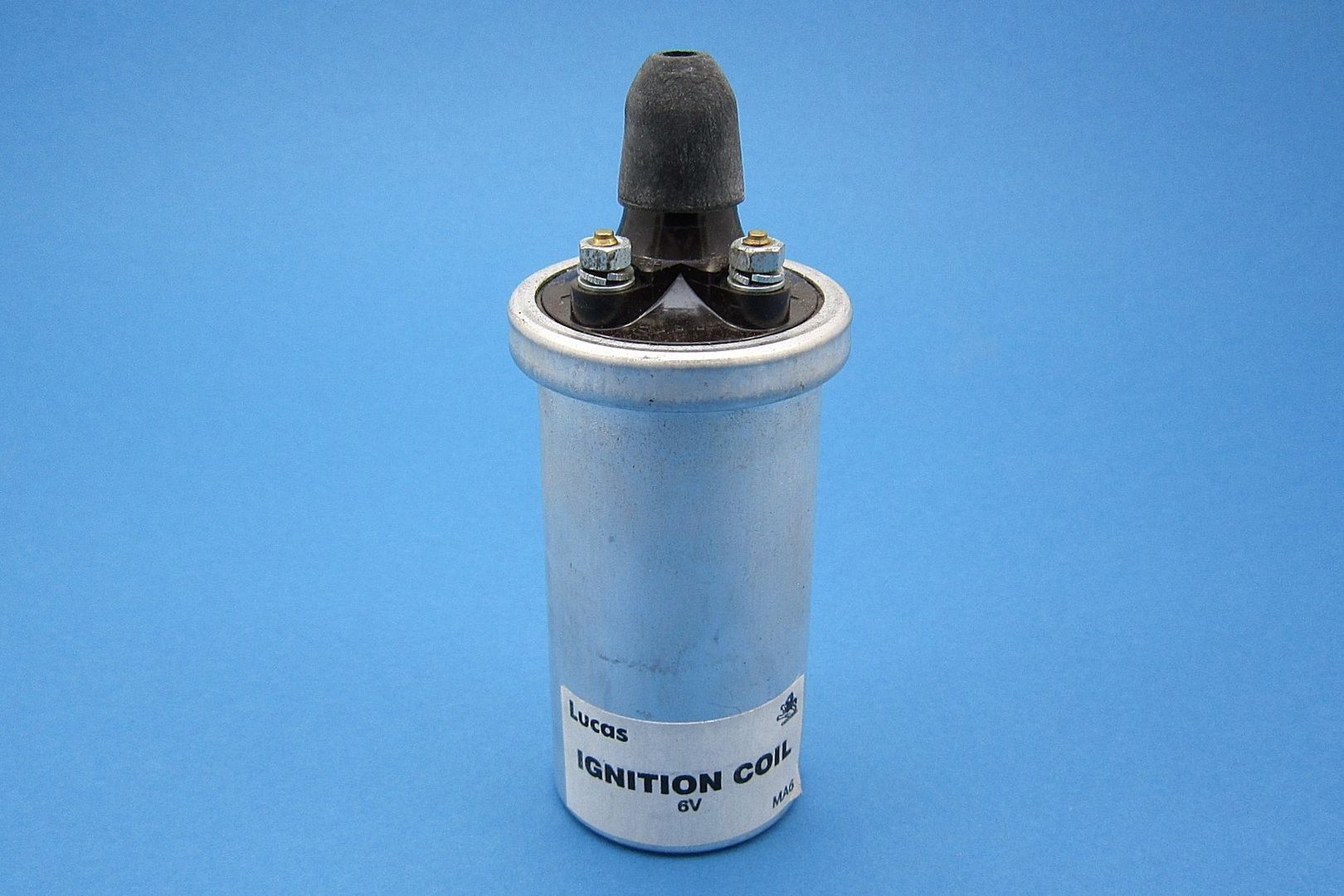

Lucas MA6 & MA12 Ignition Coils
Description
Lucas oil filled ignition coils, suitable for motorcyle use. Available in in either 6V (MA6) or 12V (MA12) versions. Original fitment on various British motorcycles.
6V version, primary resistance 1.6 Ohms
12V version, primary resistance 3.0 Ohms

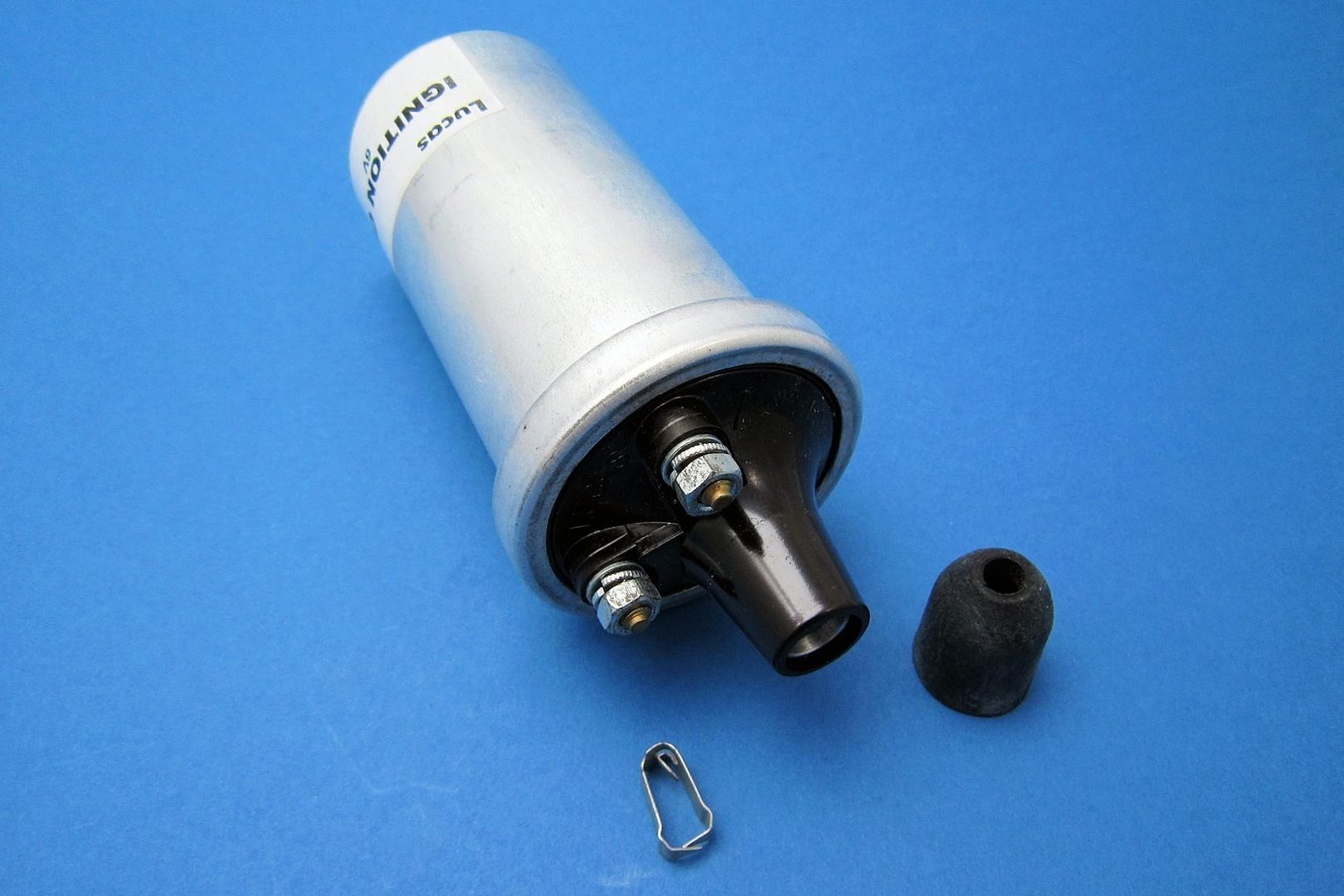

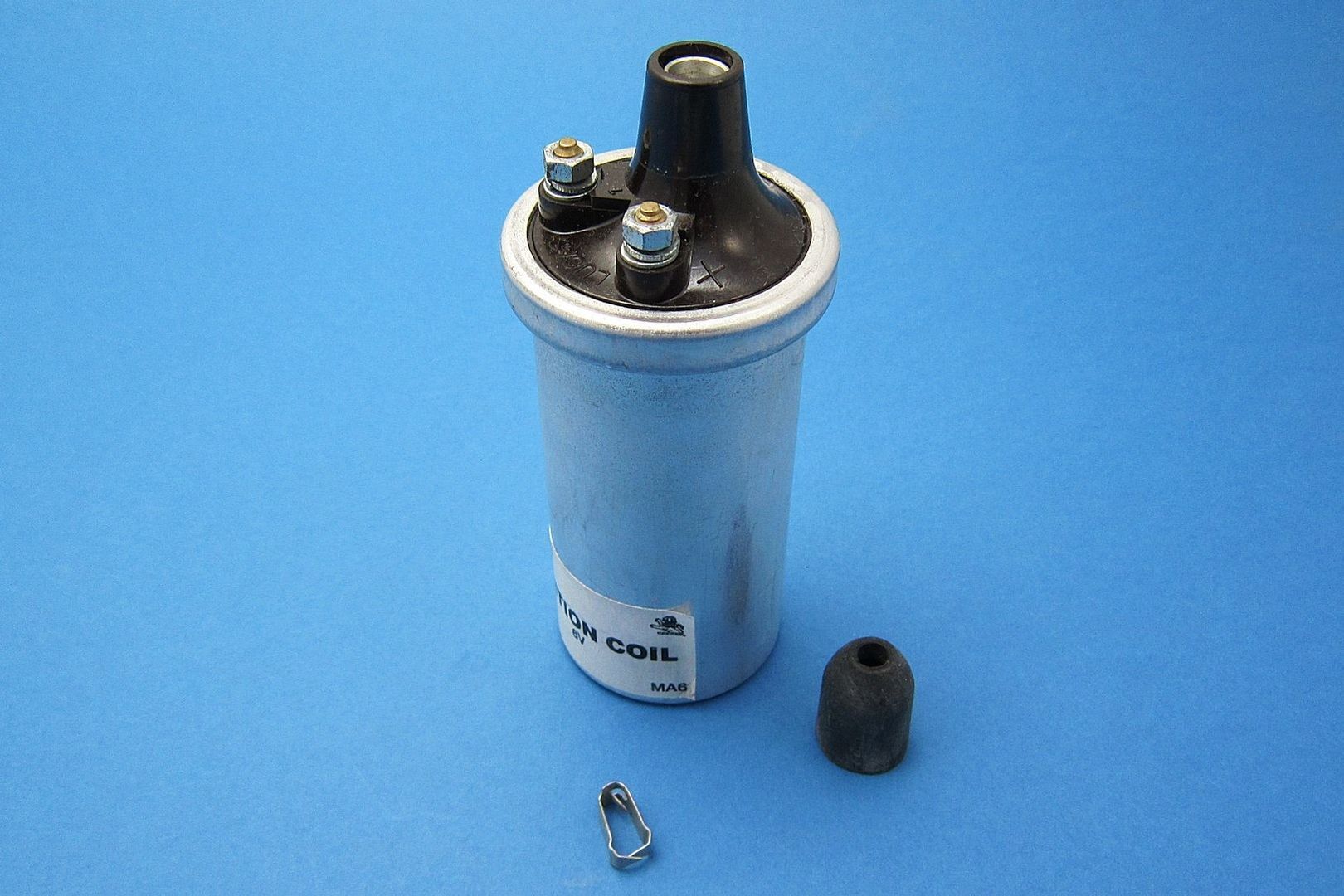

HT connection via supplied push-in terminal and cover, low tension connection via 5mm studs.
- Body Length 4" (100mm)
- Total length 125mm
- Body diameter : 1-7/8" (48mm)
