Lucas 34477 Push/Pull

Description

Lucas 34477 3 position push/pull switch.

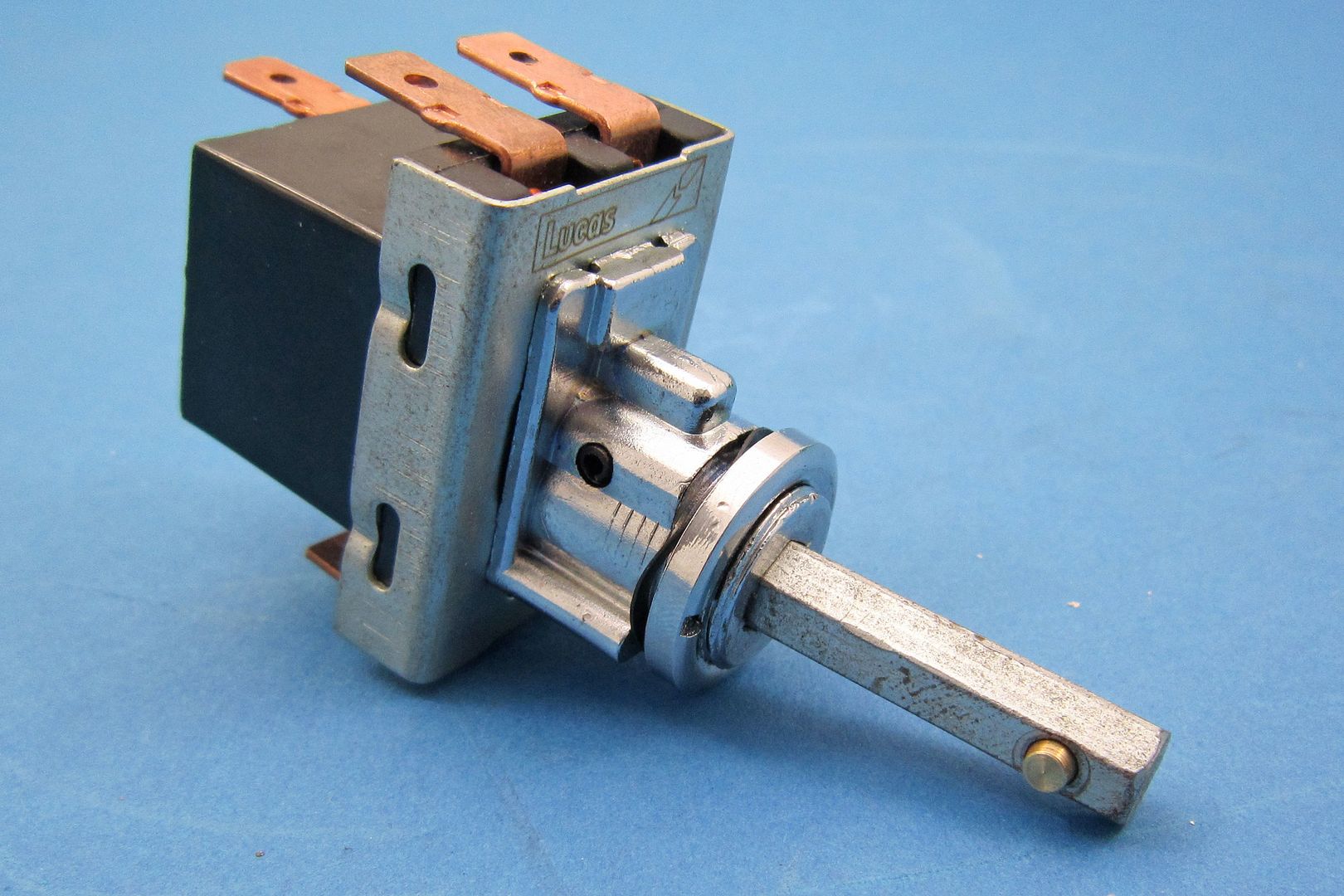

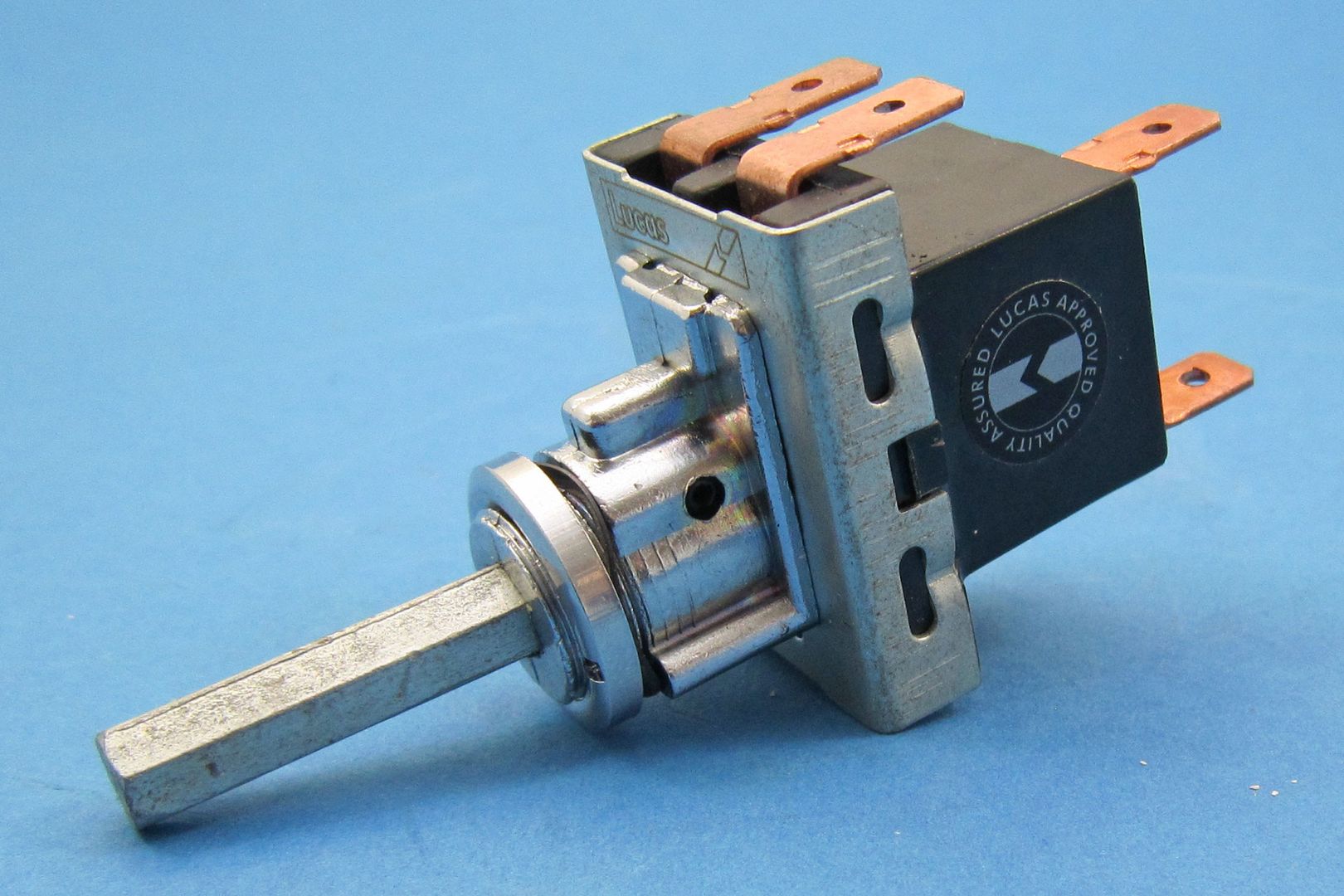

Has 1/4" hexagonal shaft with spring loaded button to hold on knob, and 6 x 6.3mm blade terminals.

Requires 14mm panel hole, max panel thickness 3mm.

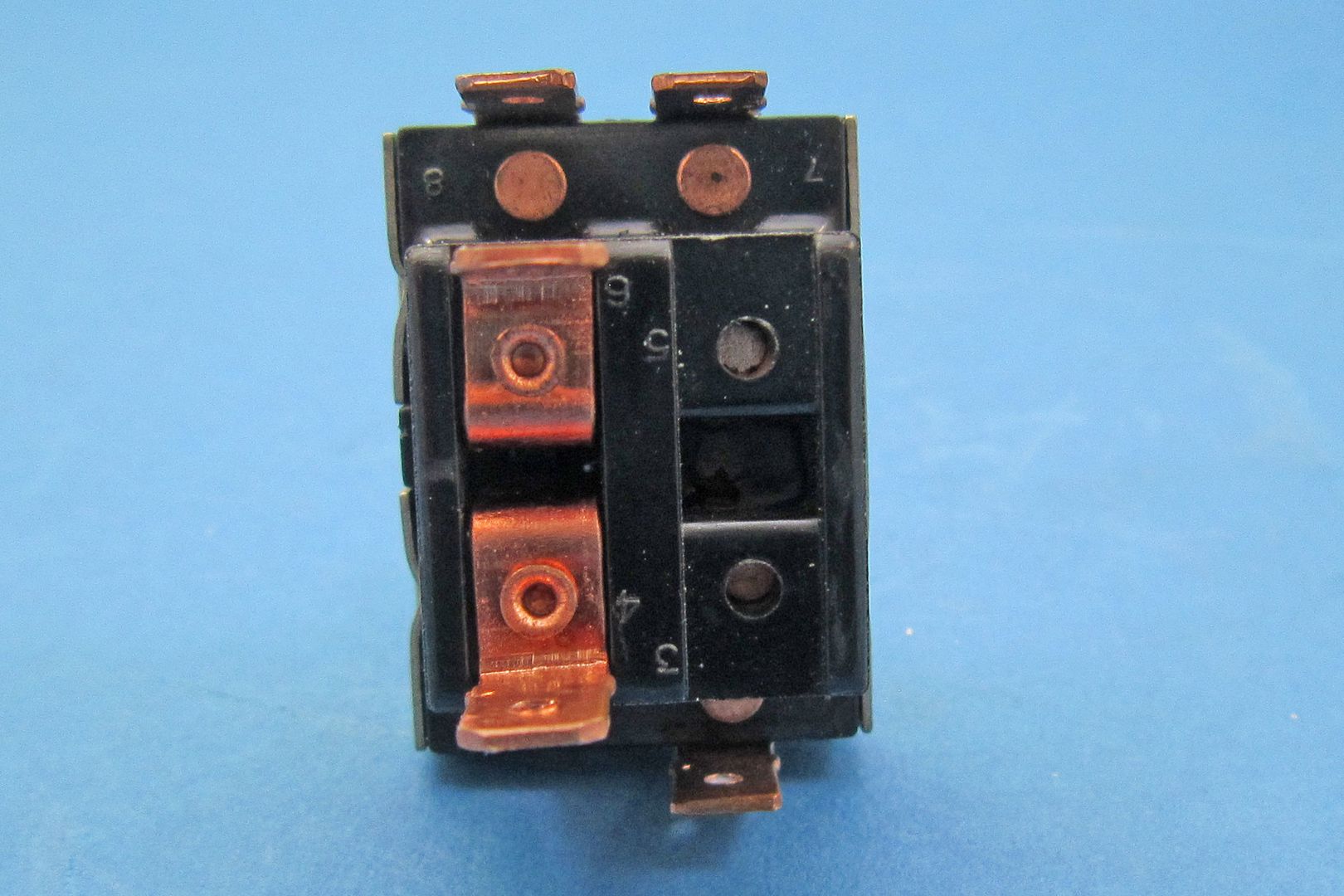

Connections as follows:

  • Position 1 (fully in), terminals 1,6 & 7 connected
  • Position 2 (middle), terminals 1,4,6 & 7 connected
  • Position 3 (fully out), terminals 1,4,7 & 8 connected

To use as a lighting switch:

  • Power in - Terminal 1
  • Sidelights - Terminal 4
  • Headlights - Terminal 8

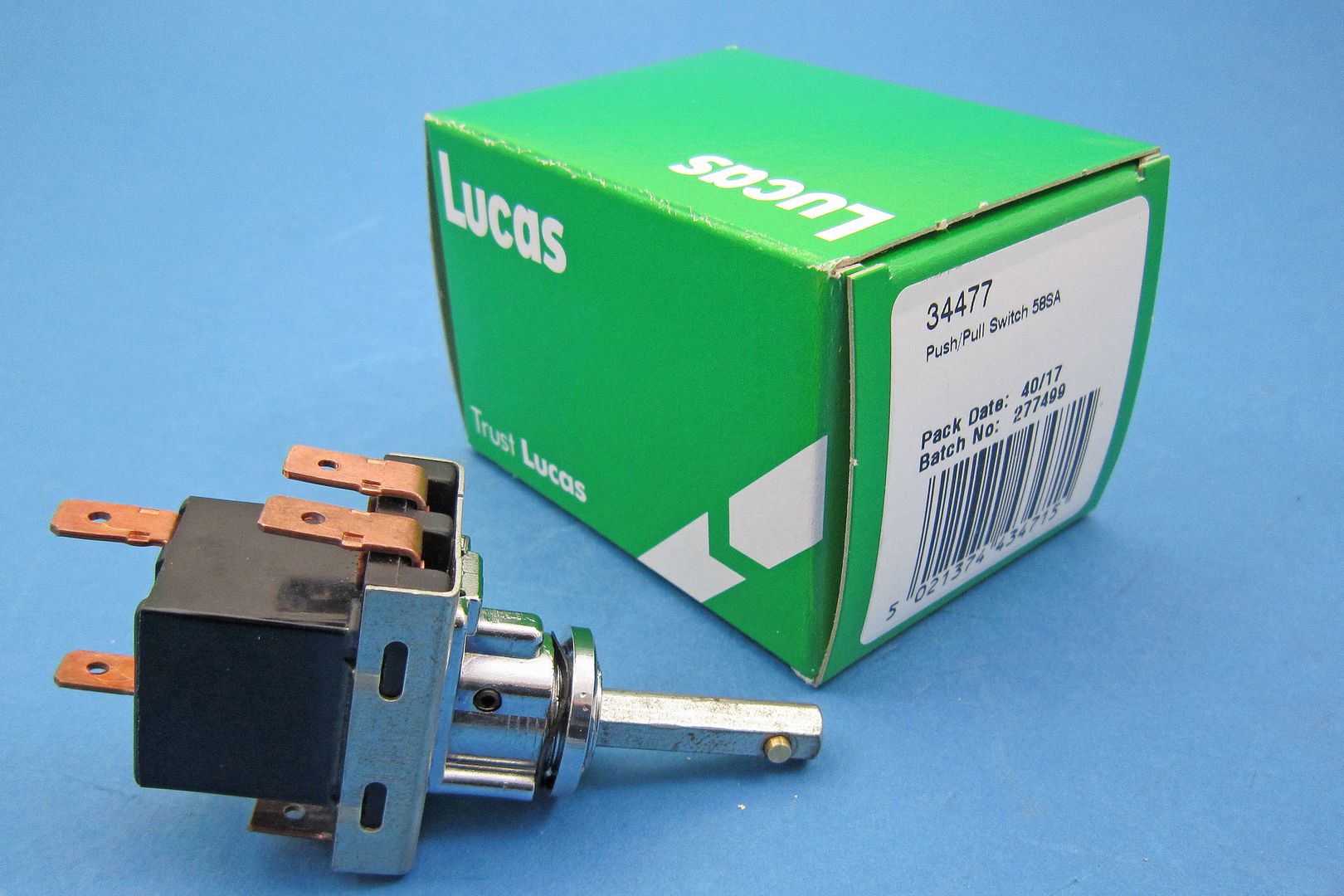

Lucas 34477 push/pull switch
Stockcode: LUCAS 34477
£27.69
exc VAT
(each)
In Stock
