Lucas 128SA 35670 Key Switch

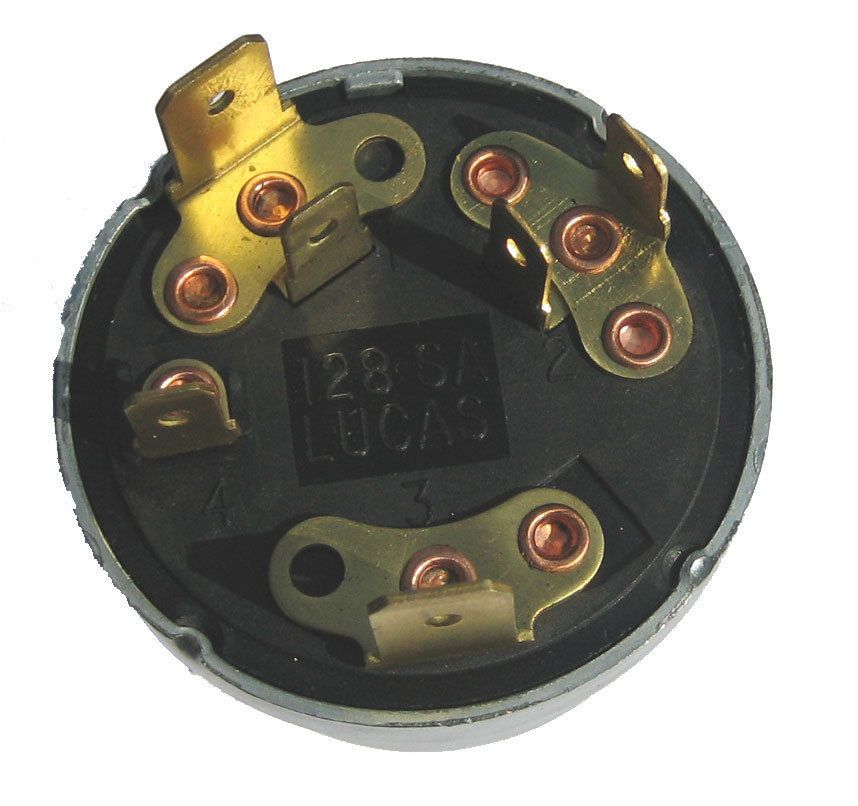

Rear
Description
Lucas 128SA 35670 Key Switch. 4 Position switch.
1.Off
2.Aux
3.Aux/Heater
4.Aux/Heater/Start
Positions 3 and 4 are sprung loaded, so that when released the key will return to position 2. Connection by 6.3mm and 9.5mm spade terminals. Will fit either 19.6mm hole or 16mm hole (stepped mounting)

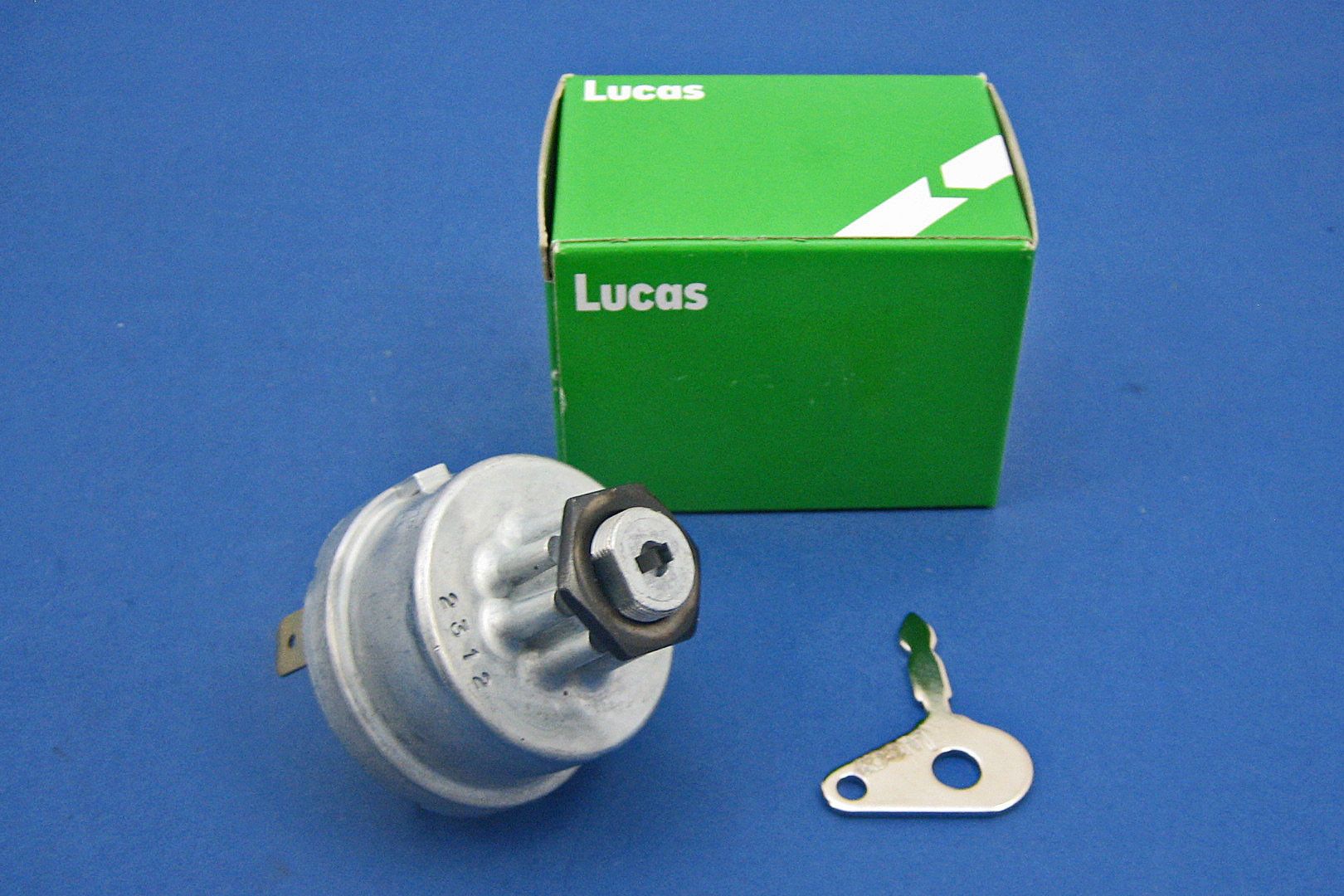

Supplied with key, but spare key also available separately.
