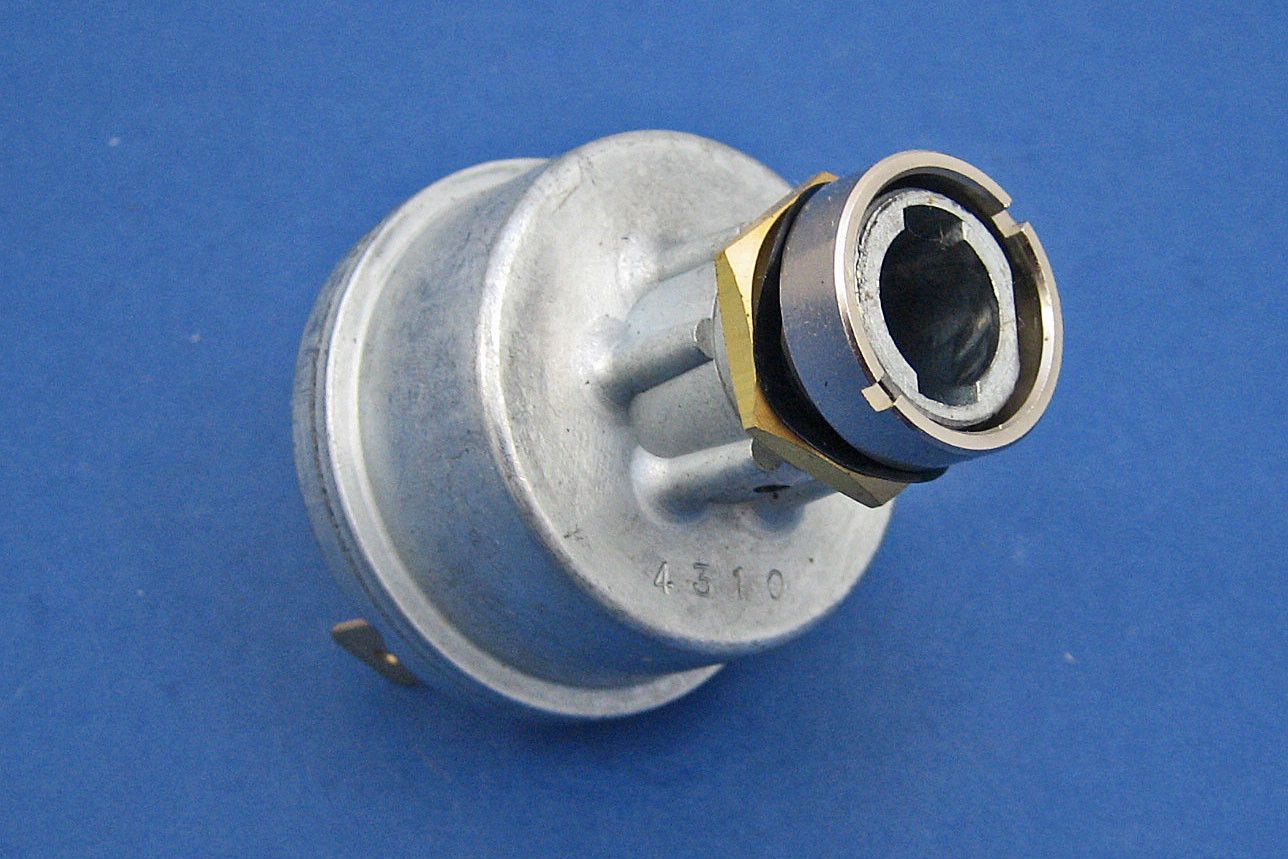

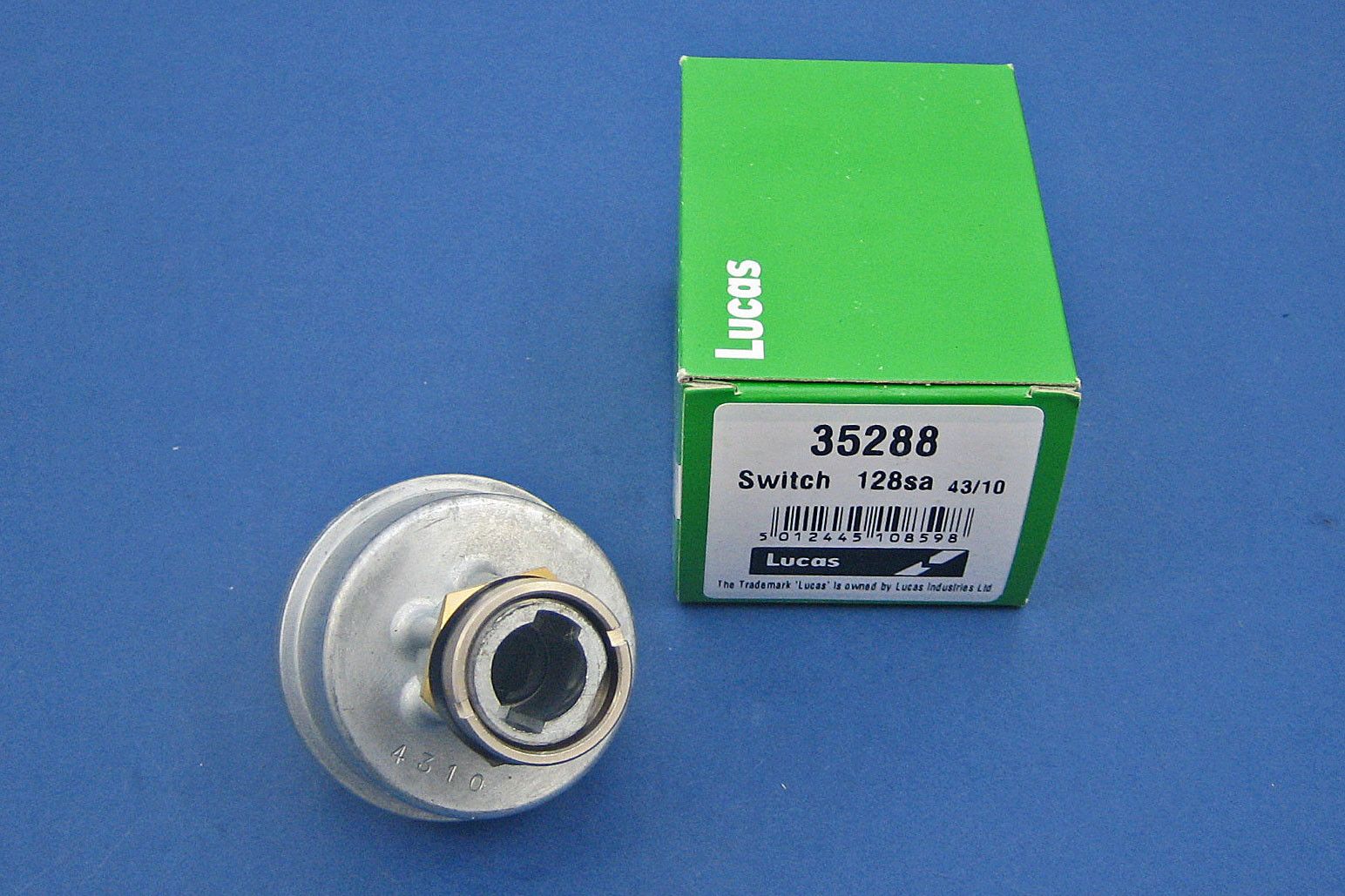

Lucas 128SA 35288 Key Switch
Description
Lucas 128SA 35288 4 position Key Switch, supplied as body only.
1.Off
2.Aux & Ign
3.Aux, Ign & Heater
4.Ign, Heater & Start

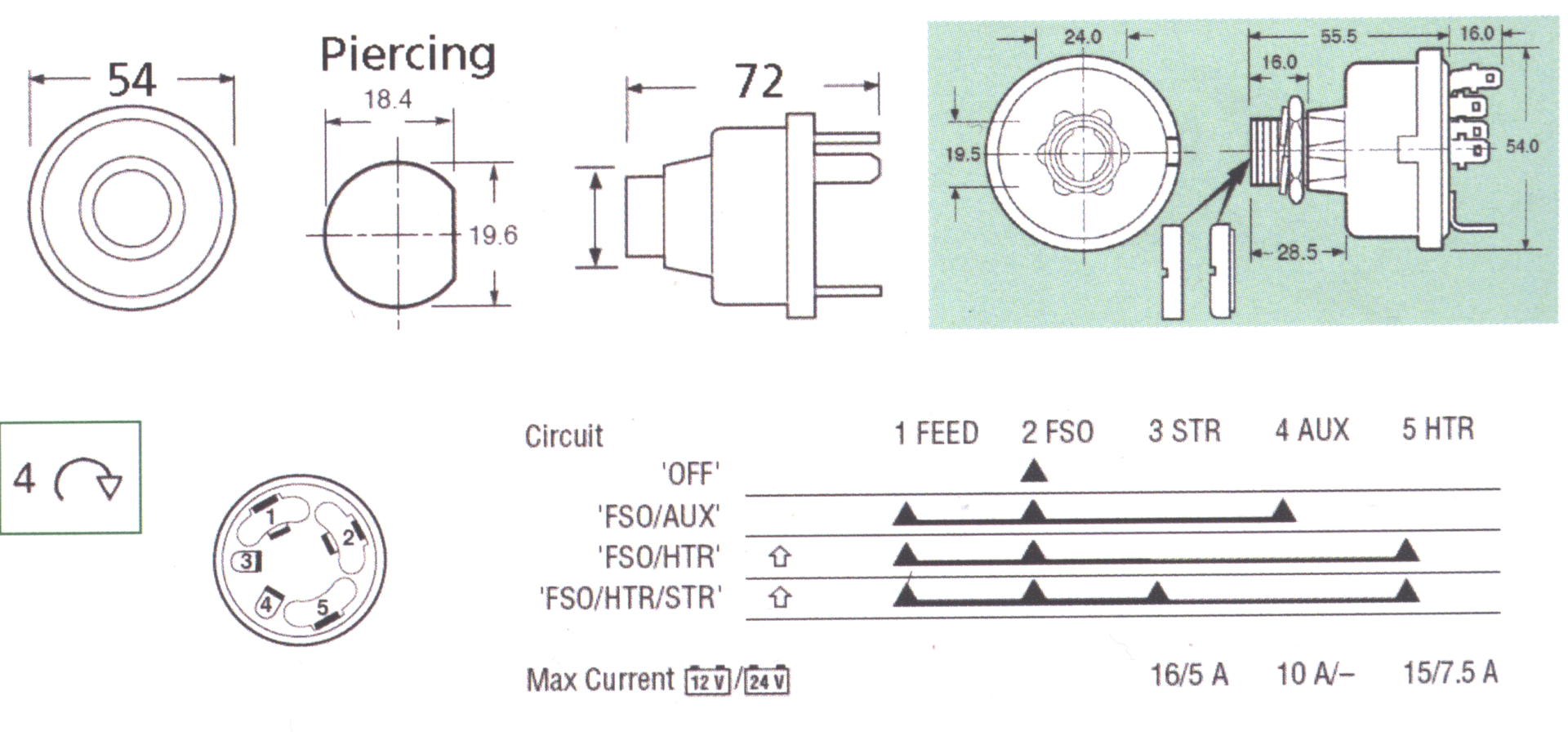

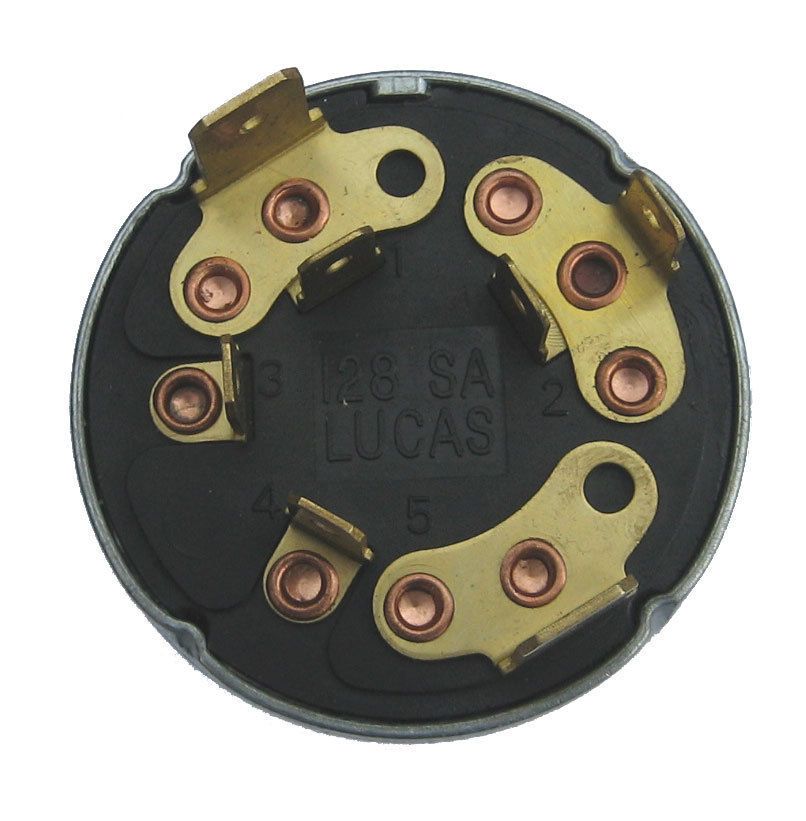

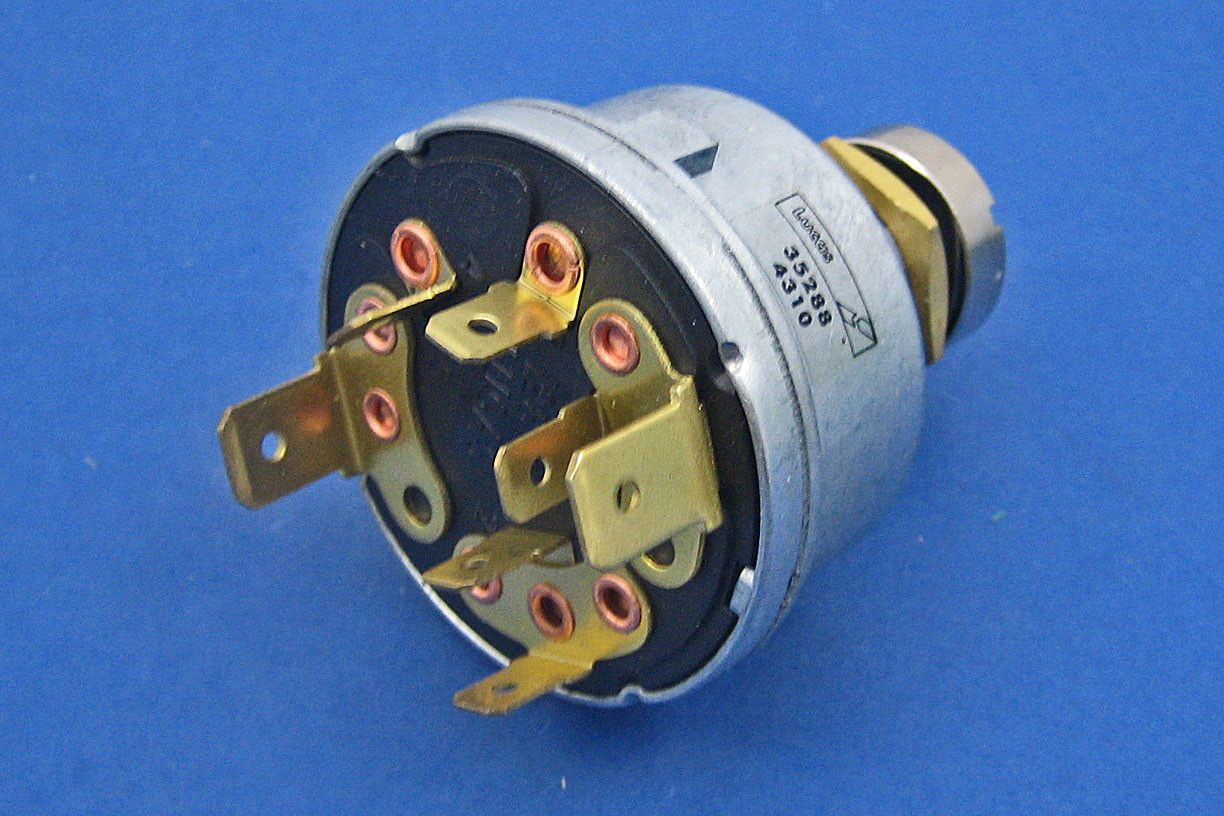

Positions 3 and 4 are sprung loaded, so that when released the key will return to position 2. Connection by 6.3mm and 9.5mm spade terminals. Requires 19.6mm dia. mounting hole.
Requires Lucas 54316731 Barrel & Key set, sold separately.
