Indicator Switch - Clockwork

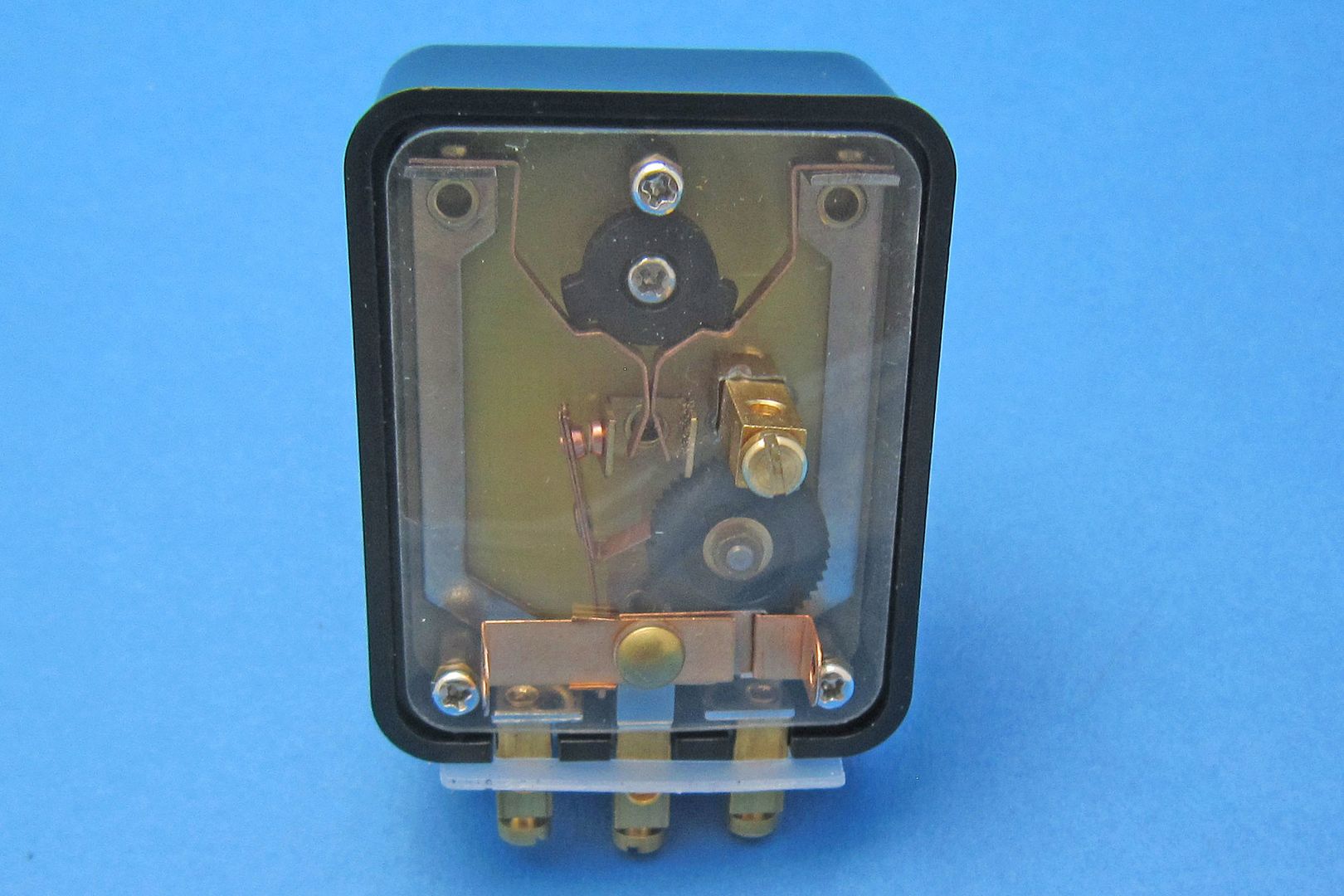

Clockwork indicator switch that self cancels. When the switch is turned in either direction, it causes a pair of contacts within the switch to make and break for approximately 20 seconds, and then stops.

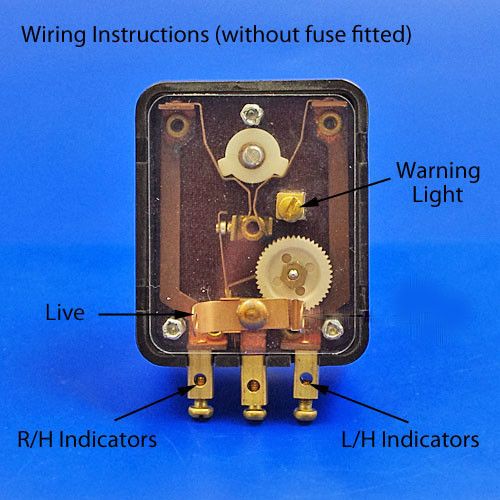

The switch has a feed in, a fuse holder to protect the switch and the indicators (takes a continental type fuse), a warning lamp terminal, and connections for left and right indicators.

Can be used on 6V, 12V and 24V systems as no flasher unit is required. Can also be used with incandescent bulbs or LED's.

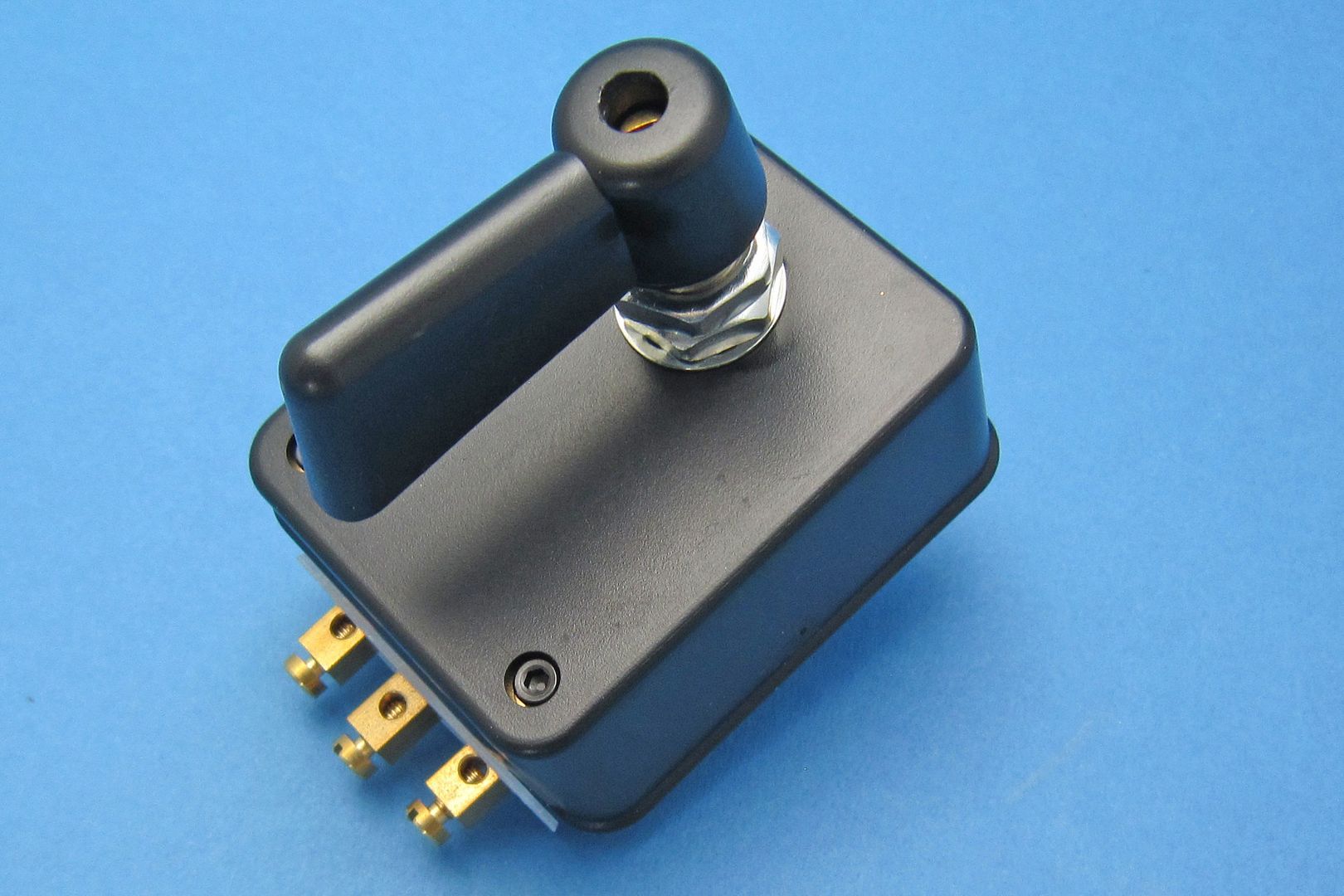

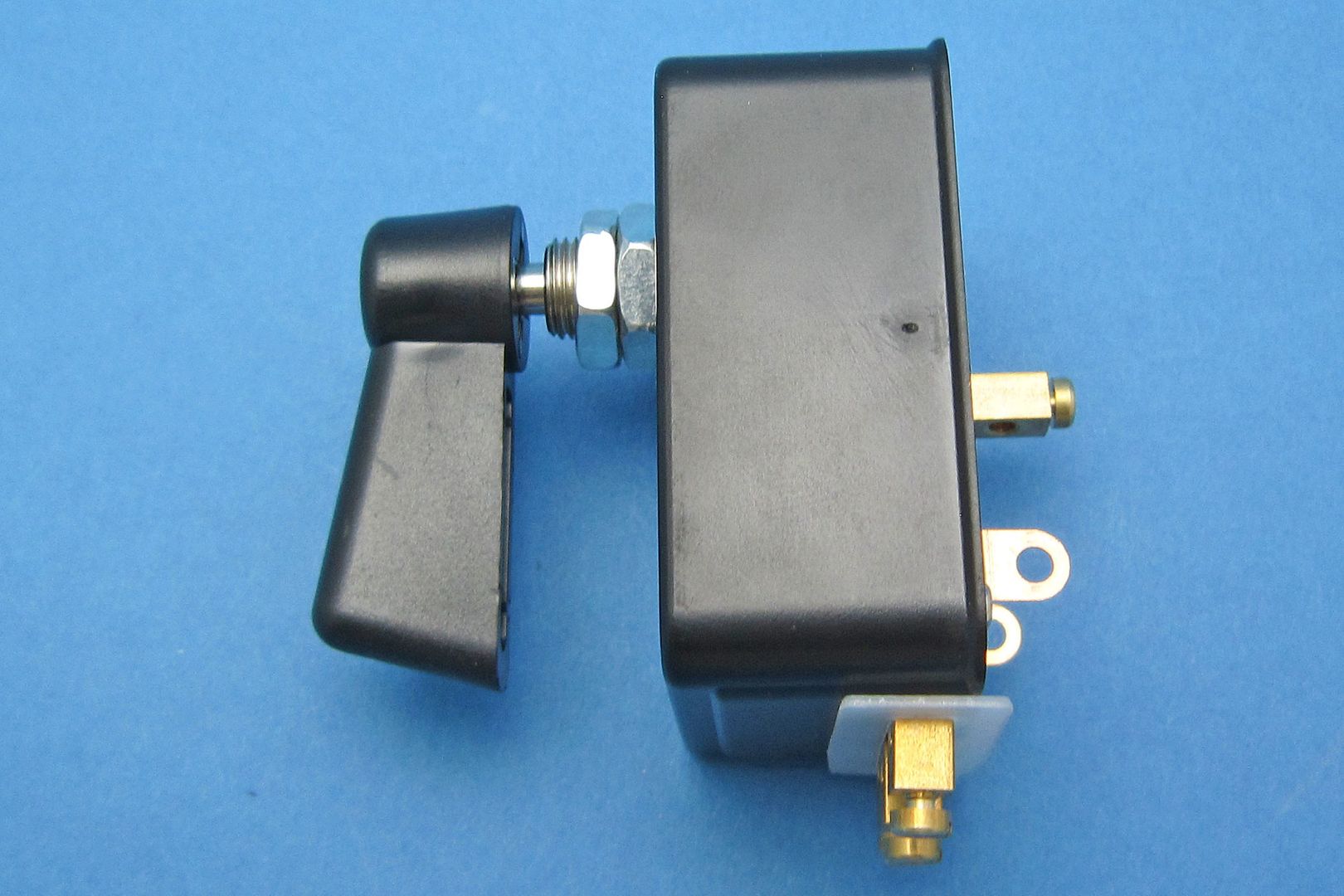

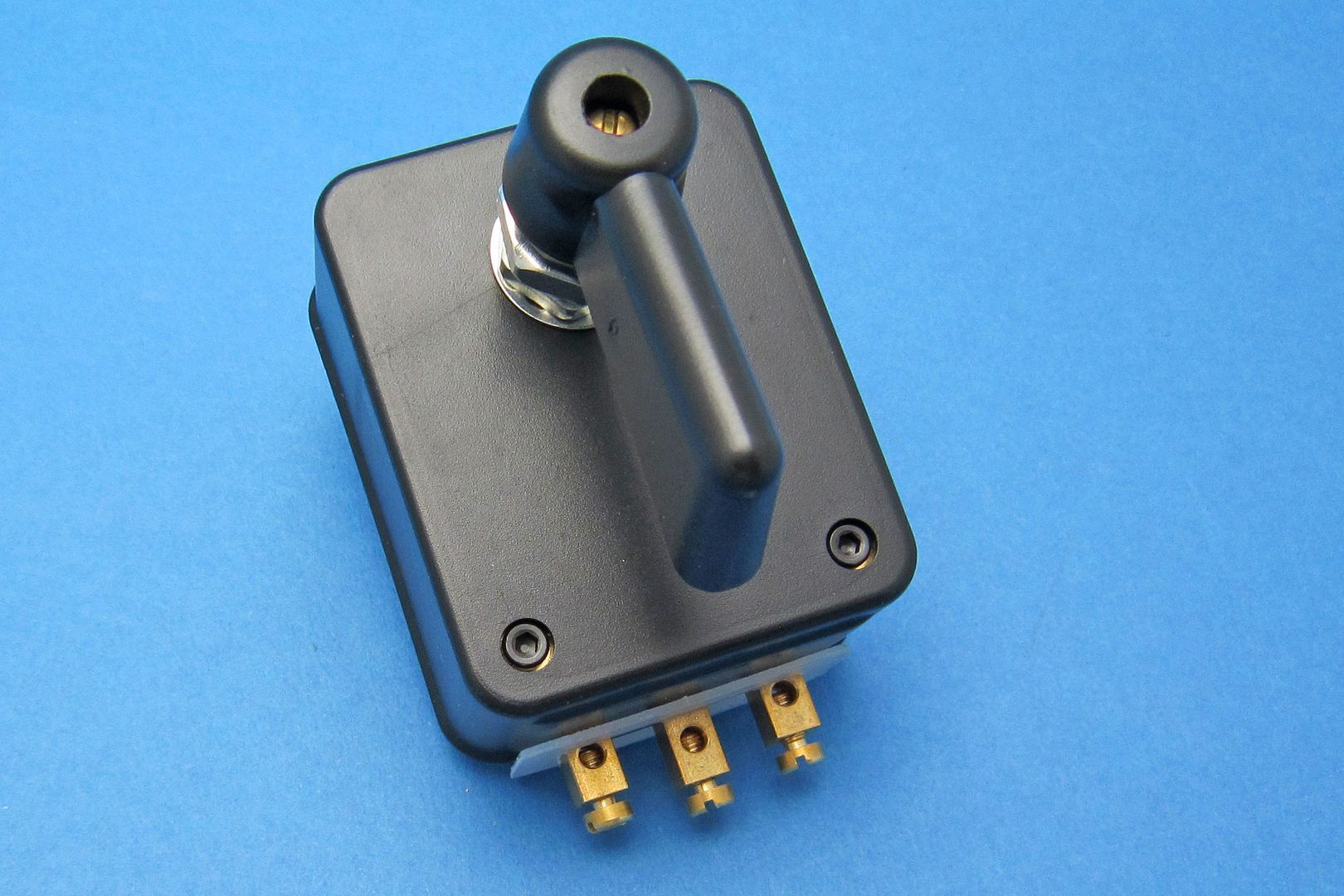

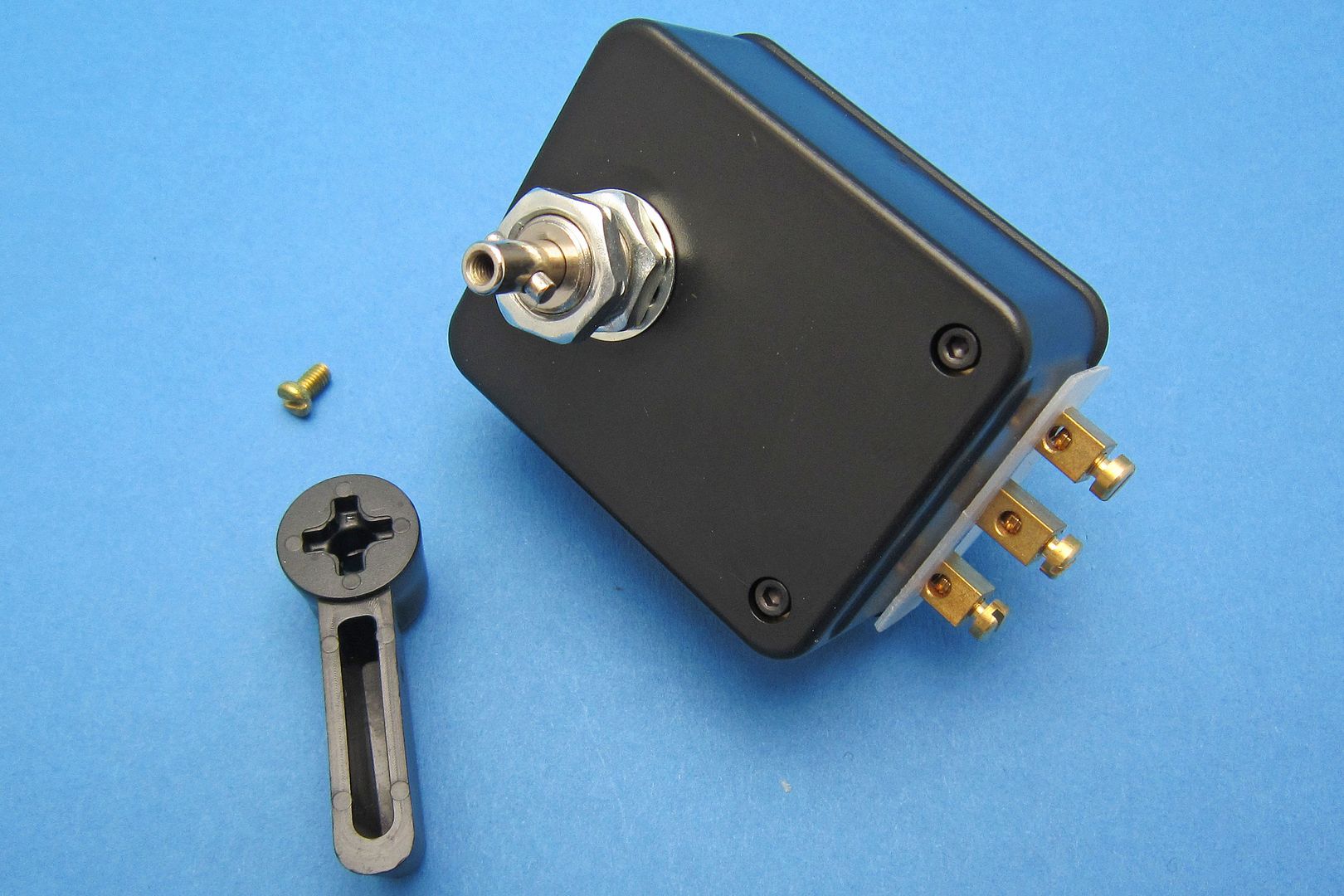

Requires a 12mm diameter mounting hole and is approximately 45mm x 55mm x 25mm in size. Max panel thickness 3mm. Knob can be re-positioned at 90 degree increments.
