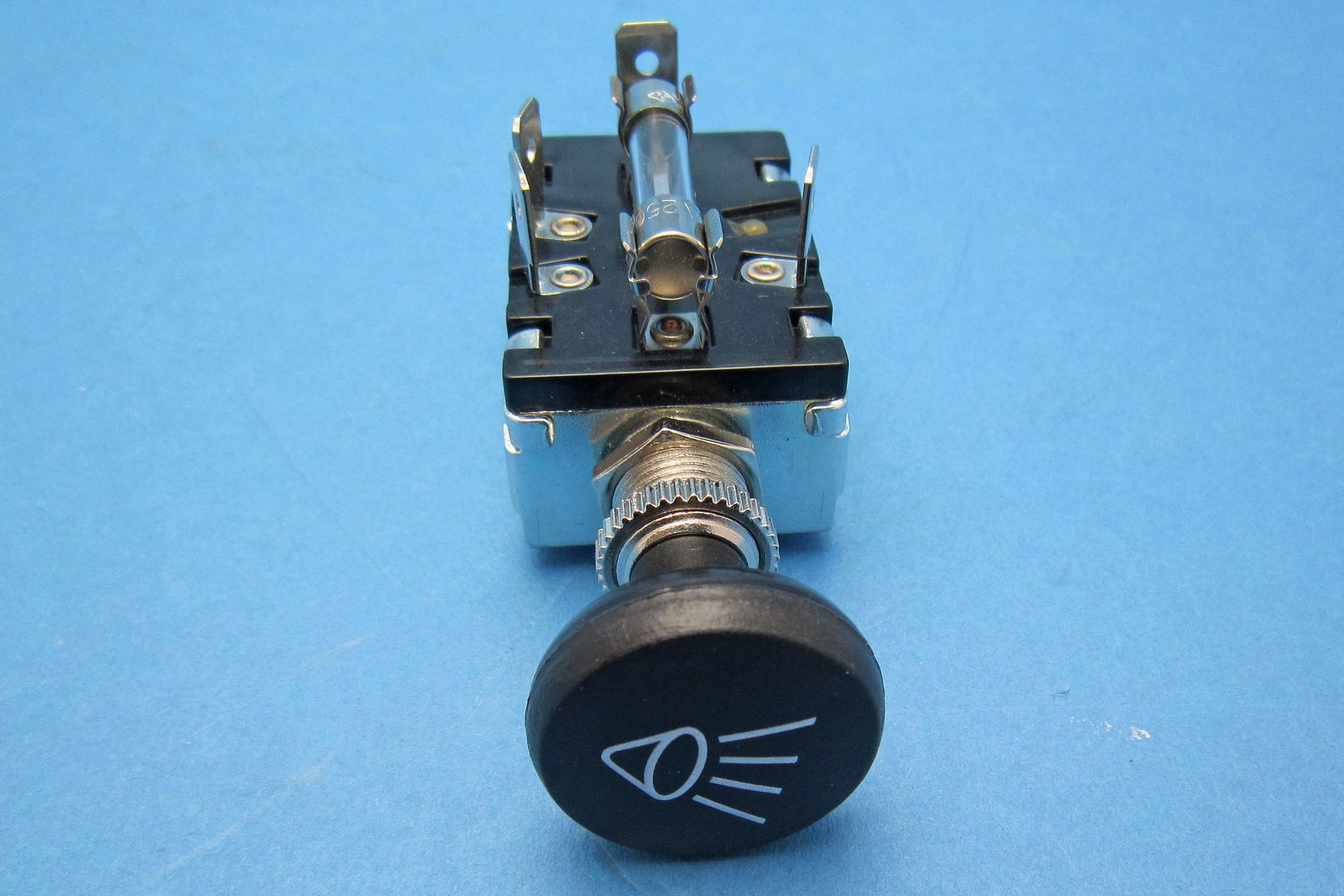

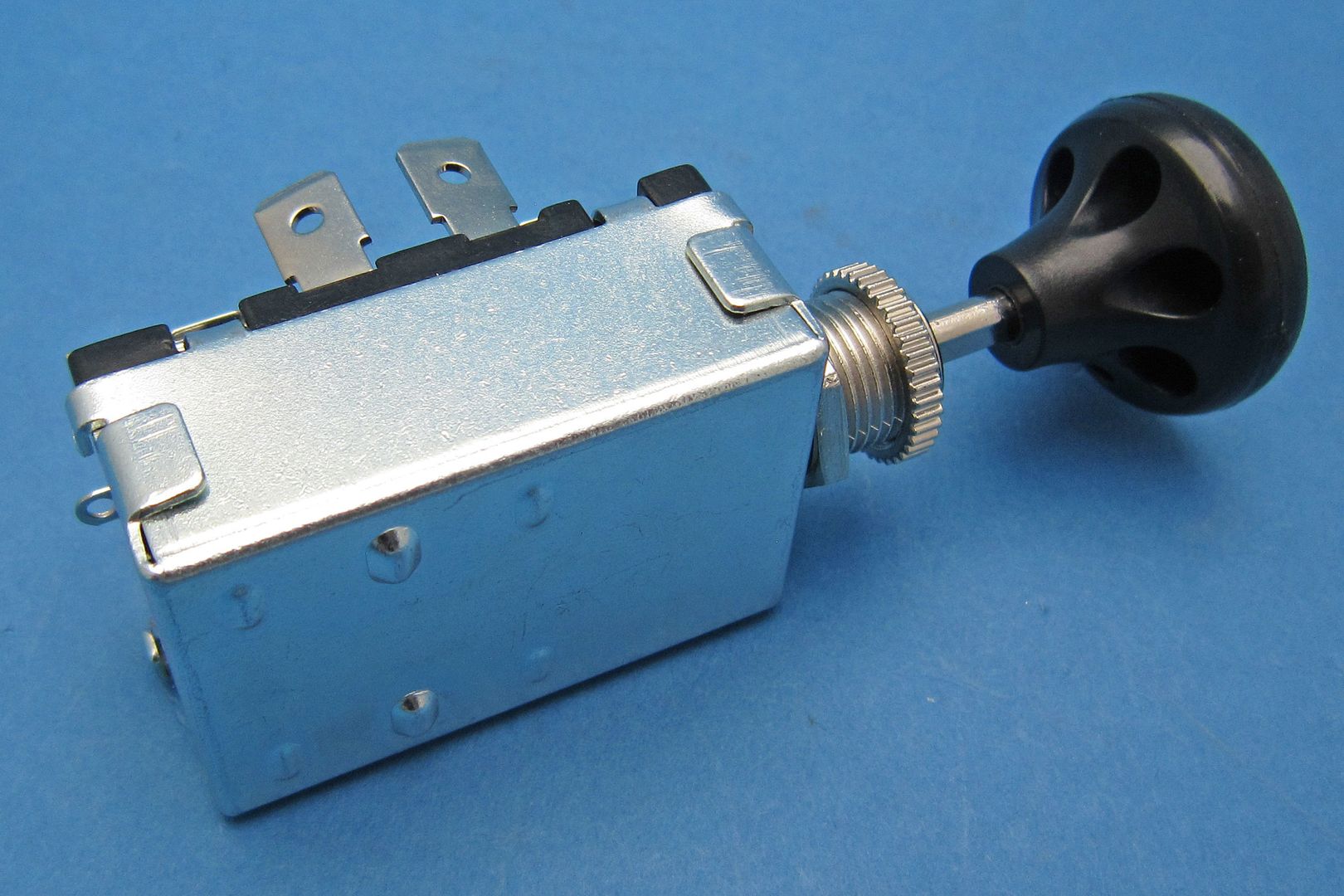

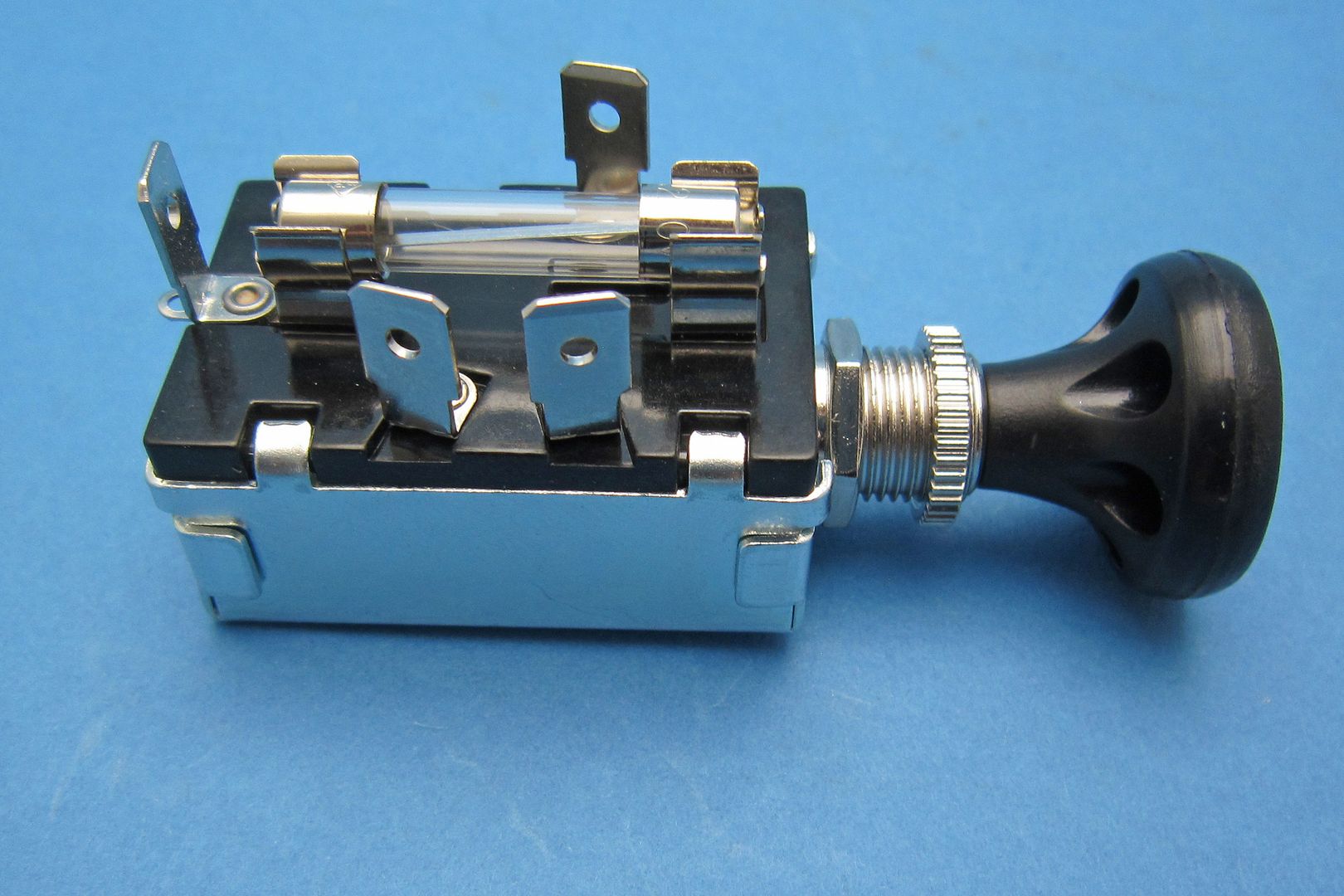

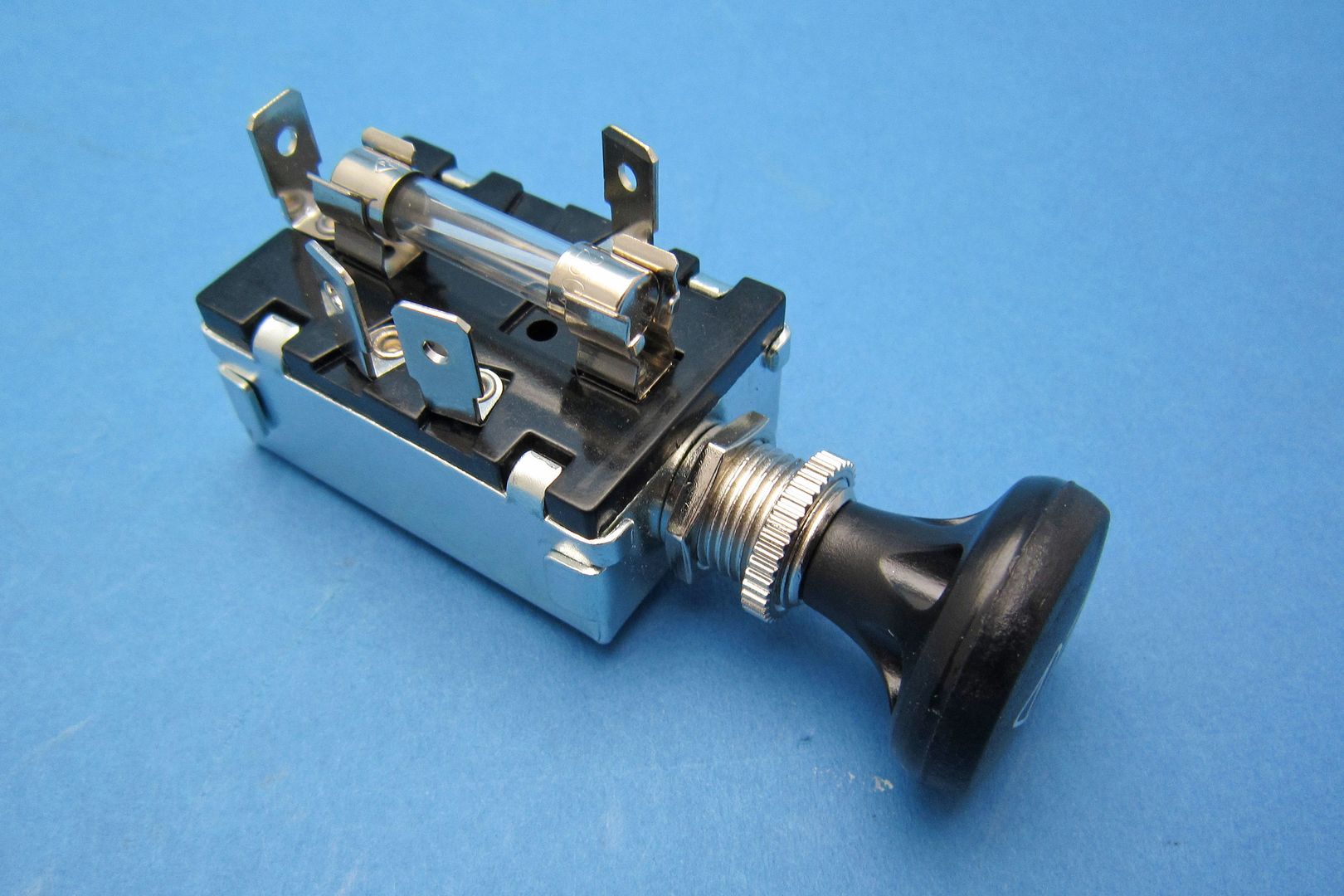

Fused Push/Pull
Description

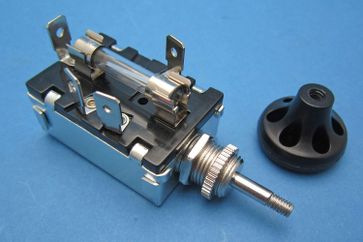

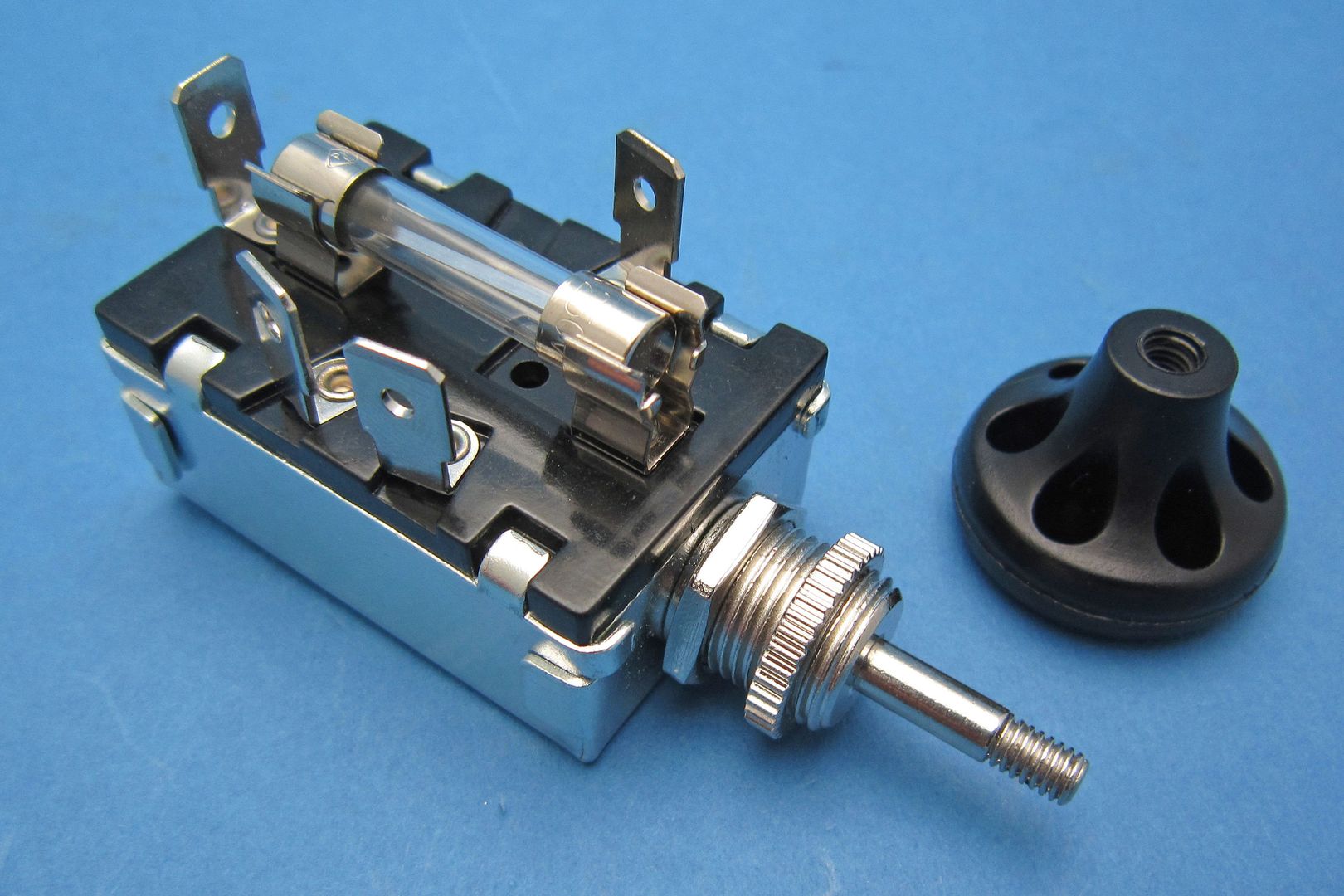

Good quality push/pull switch, with integral 30A glass fuse (supplied). Requires 12mm panel hole. Max panel thickness 10mm. Plastic knob unscrews to reveal M3.5 threaded shaft. Connection via 6.3mm blade terminals. 30A capacity.
- First position off
- Second position On A + B
- Third position On A + C
