CVH/Zetec - RS Bell housing

Description

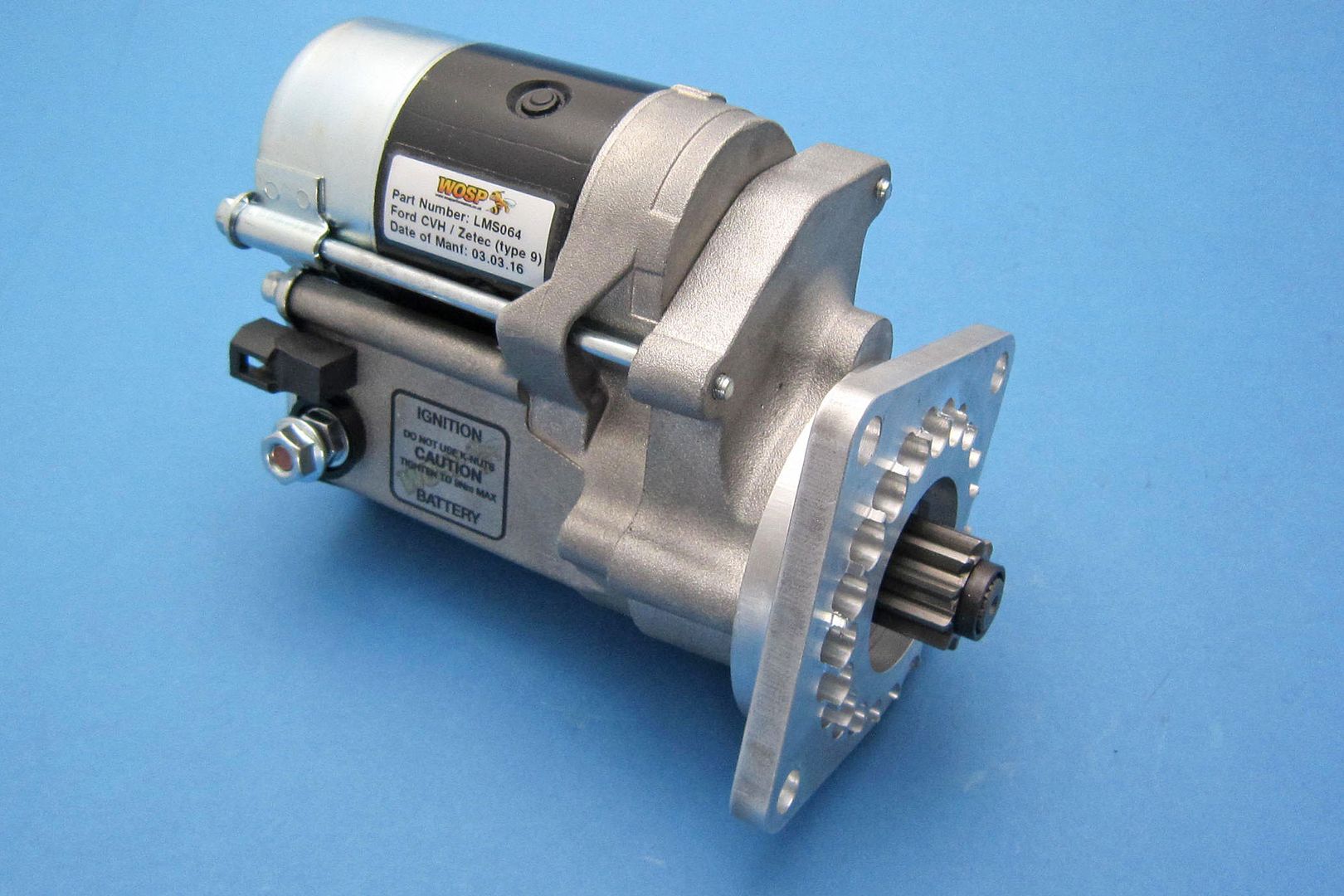

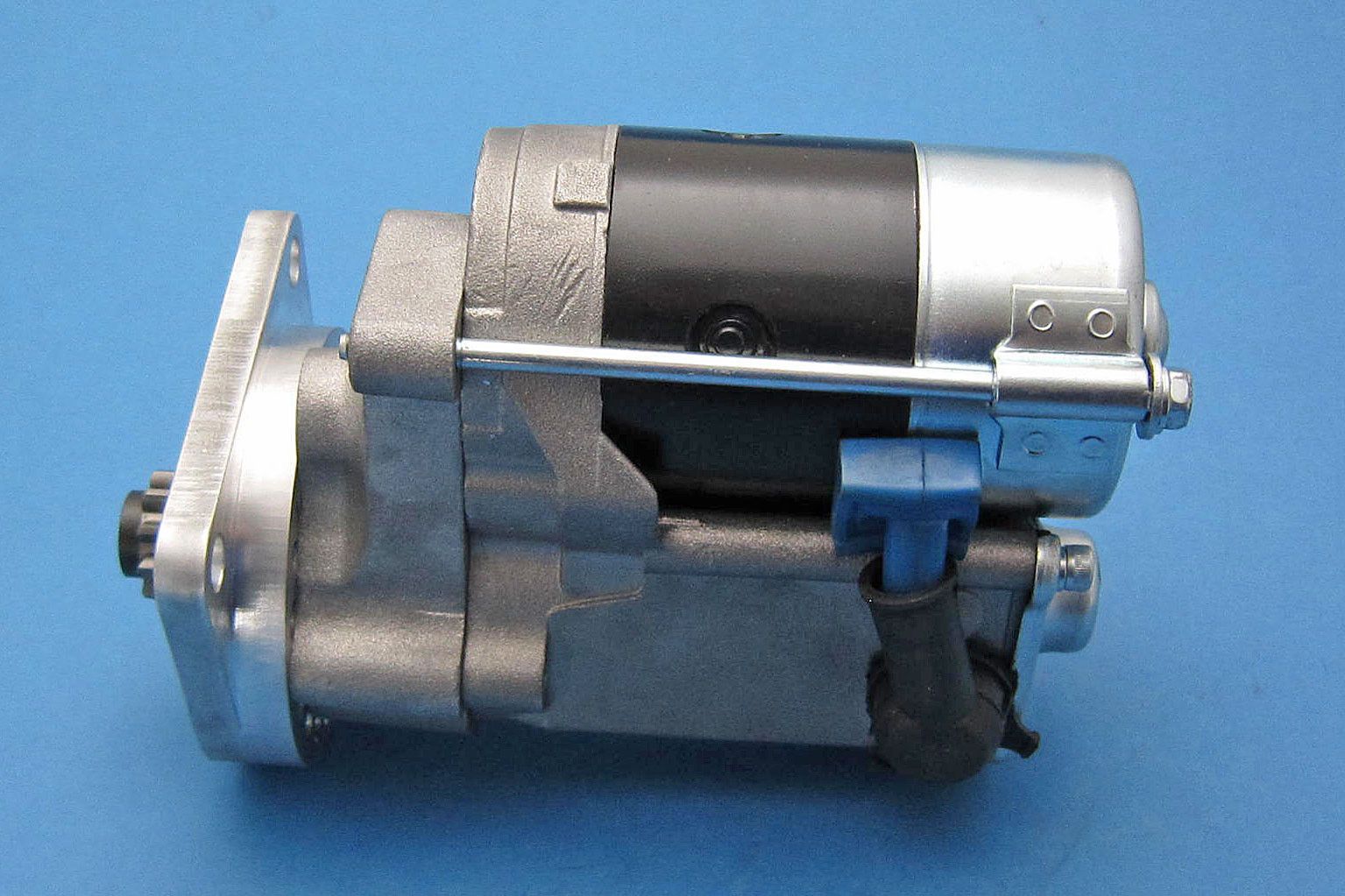

High torque starter motor to fit the Ford CVH and Zetec range of engines when mated to a RS bellhousing.

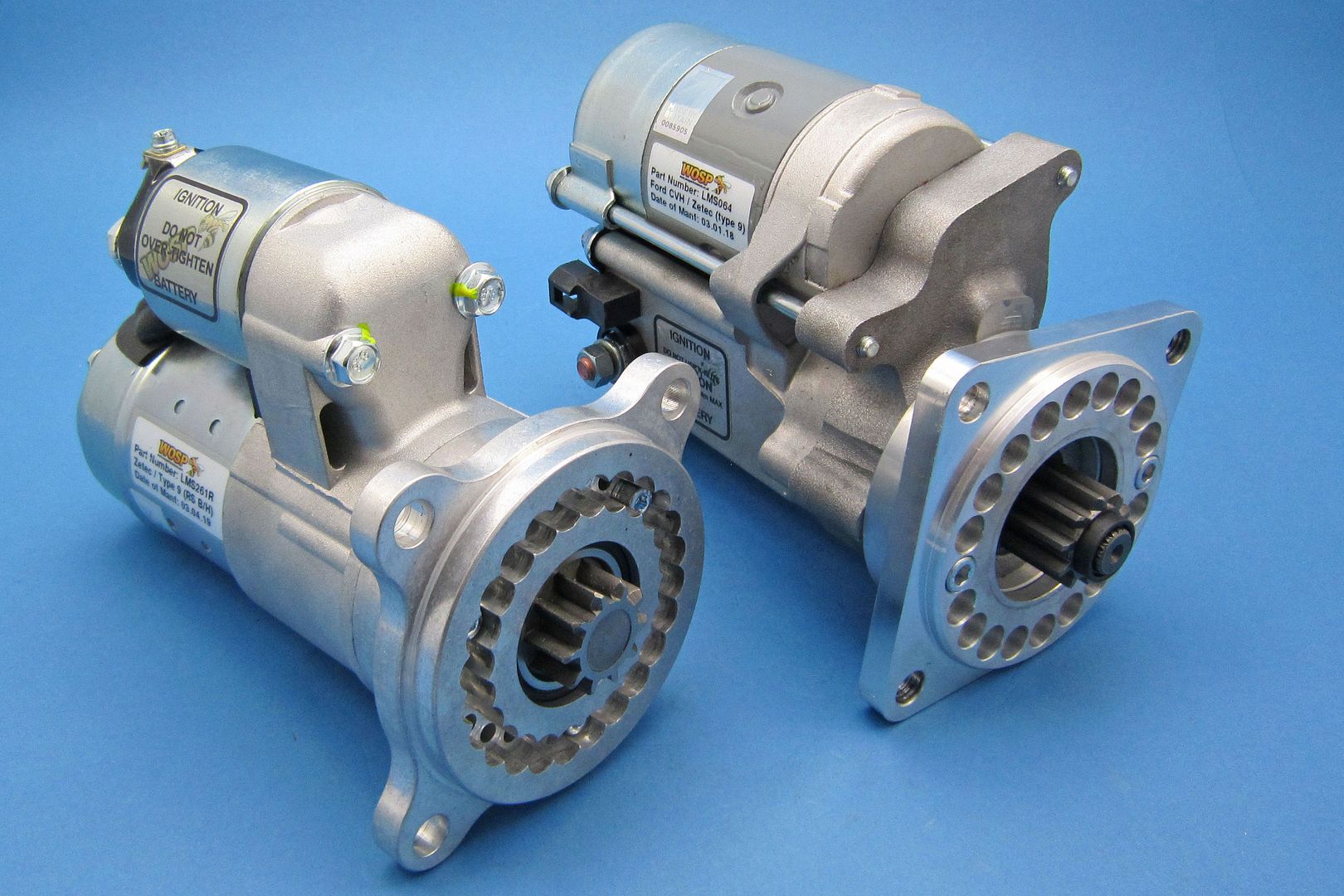

Two versions are available. One based on a Denso starter motor (suitable for negative and positive earth vehicles) and the other on a Hitachi unit (negative earth only!).

Choose the Denso unit (LMS064) for normal applications as the Denso motor is tough and forgiving. In the Denso format 2 power options (1kW or 1.4kW) are available. In most applications, 1kW is more than adequate. The 1.4kW version is for very high compression engines.

For applications where weight and space are at a premium, choose the Hitachi based unit (LMS261). Both have a 3 year warranty and are 1.4kW.

  • Power 1kW/1.4kW
  • Starter Weight 3.1kg (Hitachi), 3.9kg (Denso 1.4kw)
  • 10 teeth/27mm diameter pinion

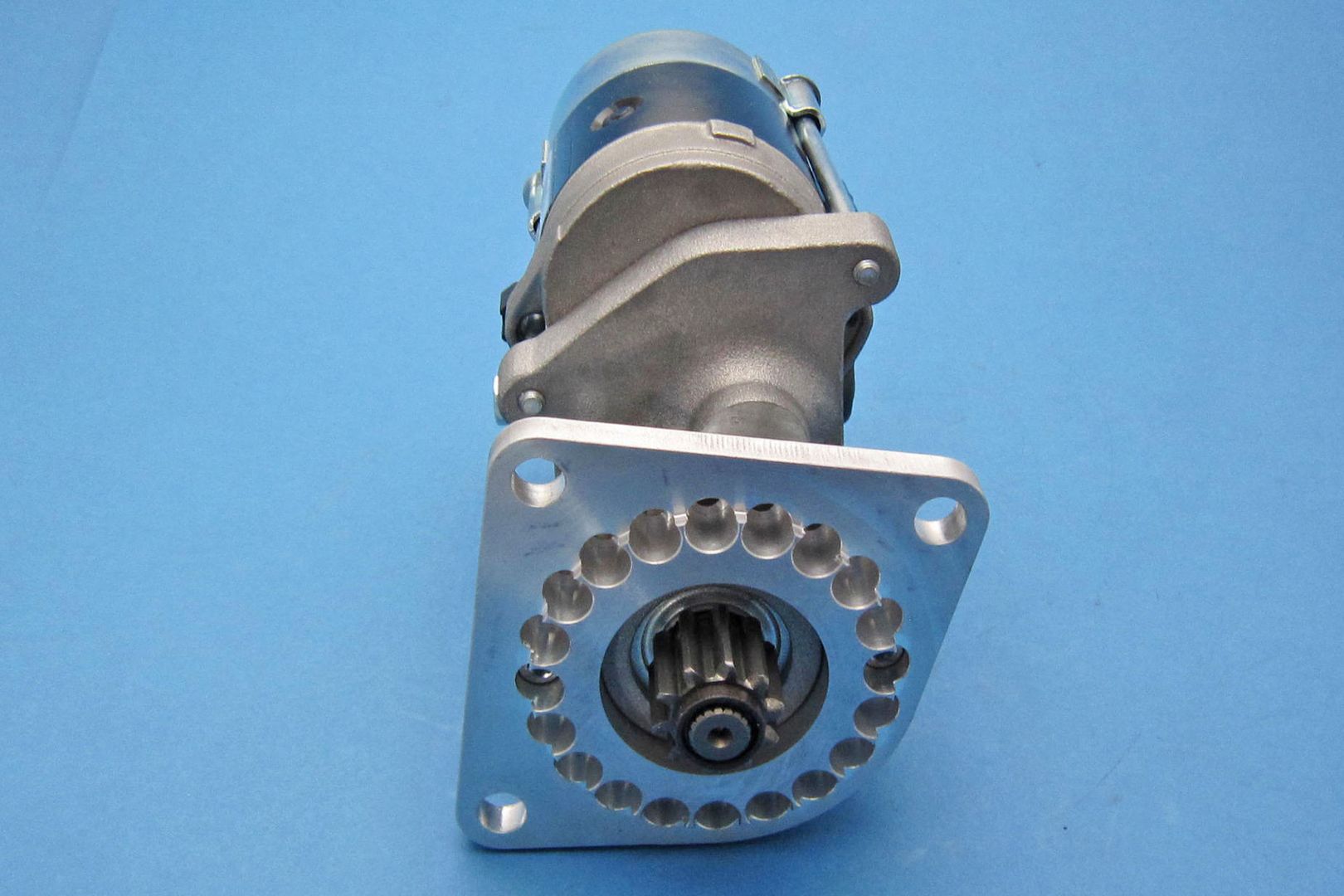

  • 76mm spigot diameter, 4.5" (114.3mm) bolt hole centre distance
  • Manufactured by WOSP Performance

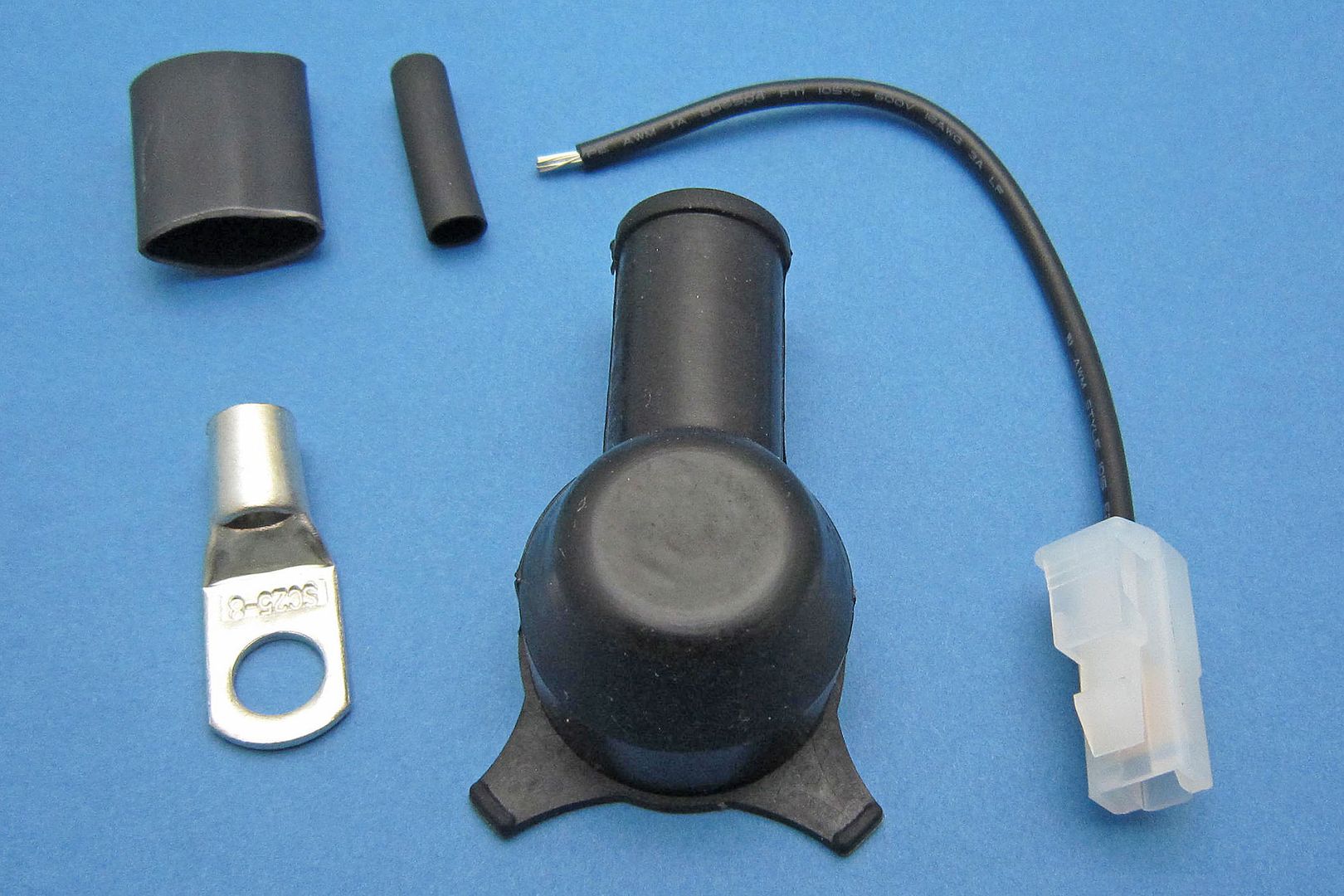

  • Supplied with terminal fitting kit
  • Three year guarantee
  • Free UK mainland carriage

Options


High torque starter motor for Ford CVH/Zetec fitted with RS bellhousing - 1kW. Neg and pos. earth
Stockcode: LMS064
£210.00
exc VAT
(each)
High torque starter motor for Ford CVH/Zetec fitted with RS bellhousing - 1.4kW. Neg and pos. earth
Stockcode: LMS171
£225.00
exc VAT
(each)
High torque starter motor for Ford CVH/Zetec fitted with RS bellhousing - Hitachi. Neg earth only
Stockcode: LMS261
£235.00
exc VAT
(each)
