6V Standard
Description

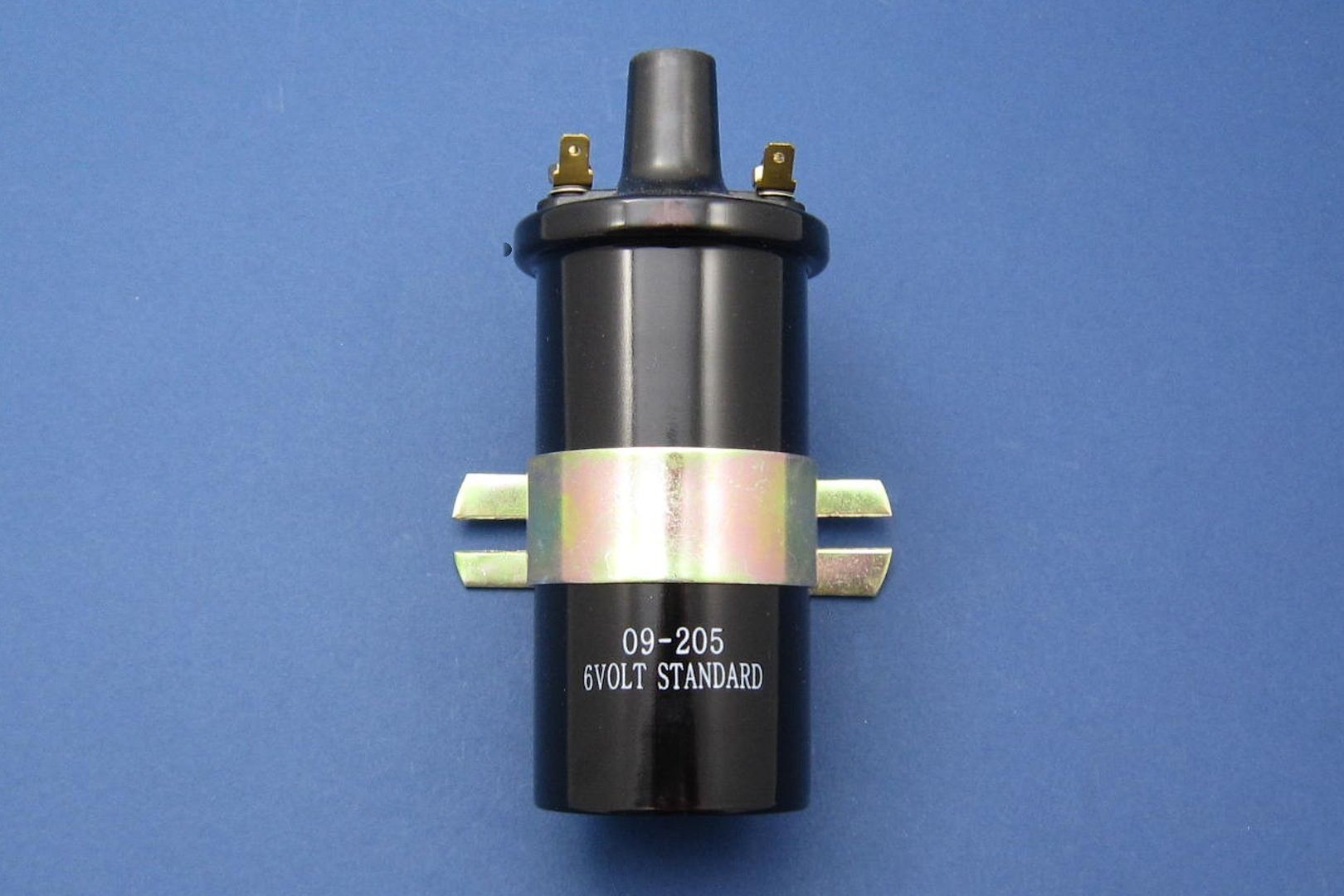

Metal can with bakelite insulation. Connections via M5 studs or spade terminals. Coil supplied with bolt-on 6.3mm male blades which can easily be removed to leave the studs available. HT connection via push-in terminal (060301, 060302 or 060303). Suitable cover 060403
Primary resistance 1.5 Ohms
Body diameter 55mm with a cap diameter of approximately 65mm. Total length approximately 150mm.
