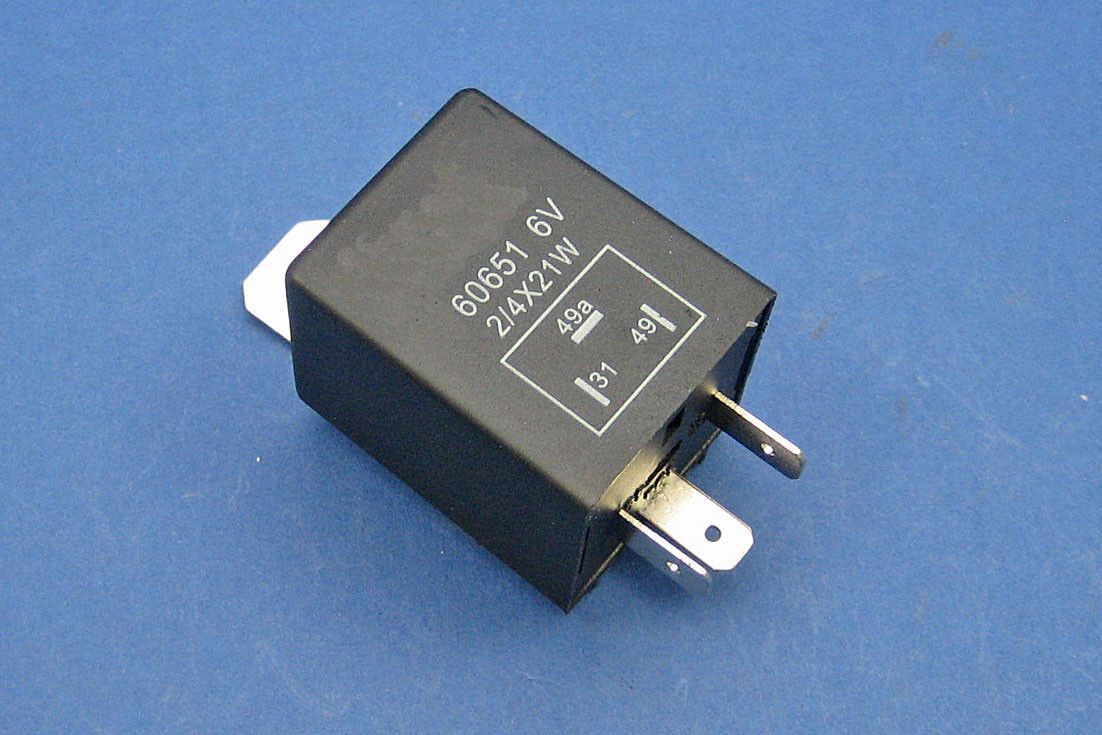

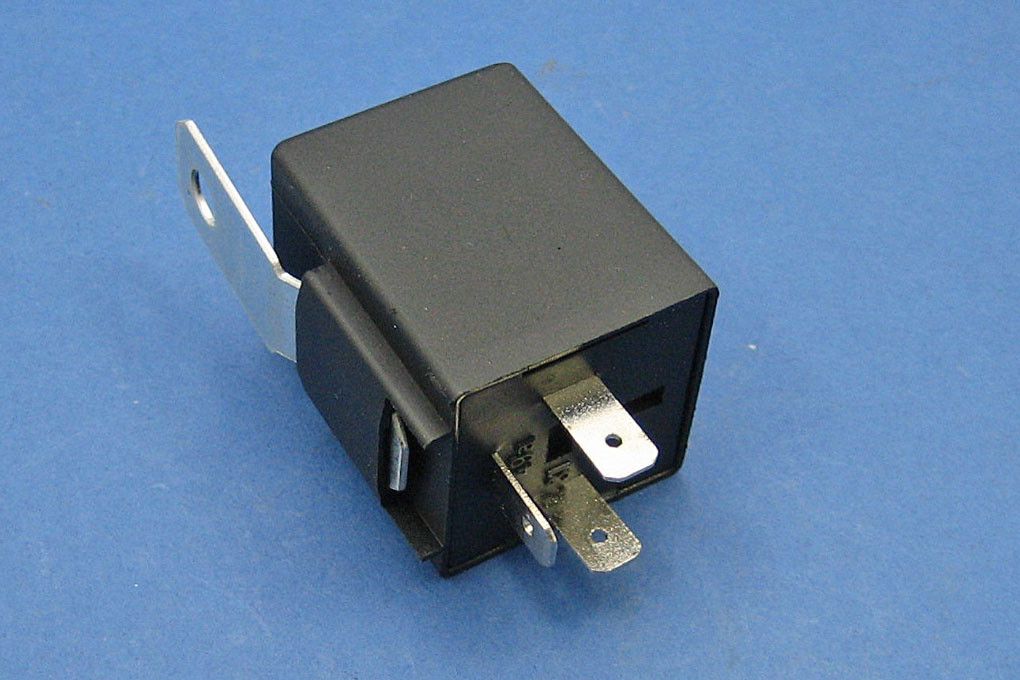

6V Electronic Flasher Relay
Description
6V flasher relay. 2 x 21W capacity (but will happily flash with as little as 10W in total). Supplied with mounting bracket. Connection via 3 x 6.3mm blade terminals.
Suitable for negative earth vehicles only and for use with conventional bulbs, not LED's.

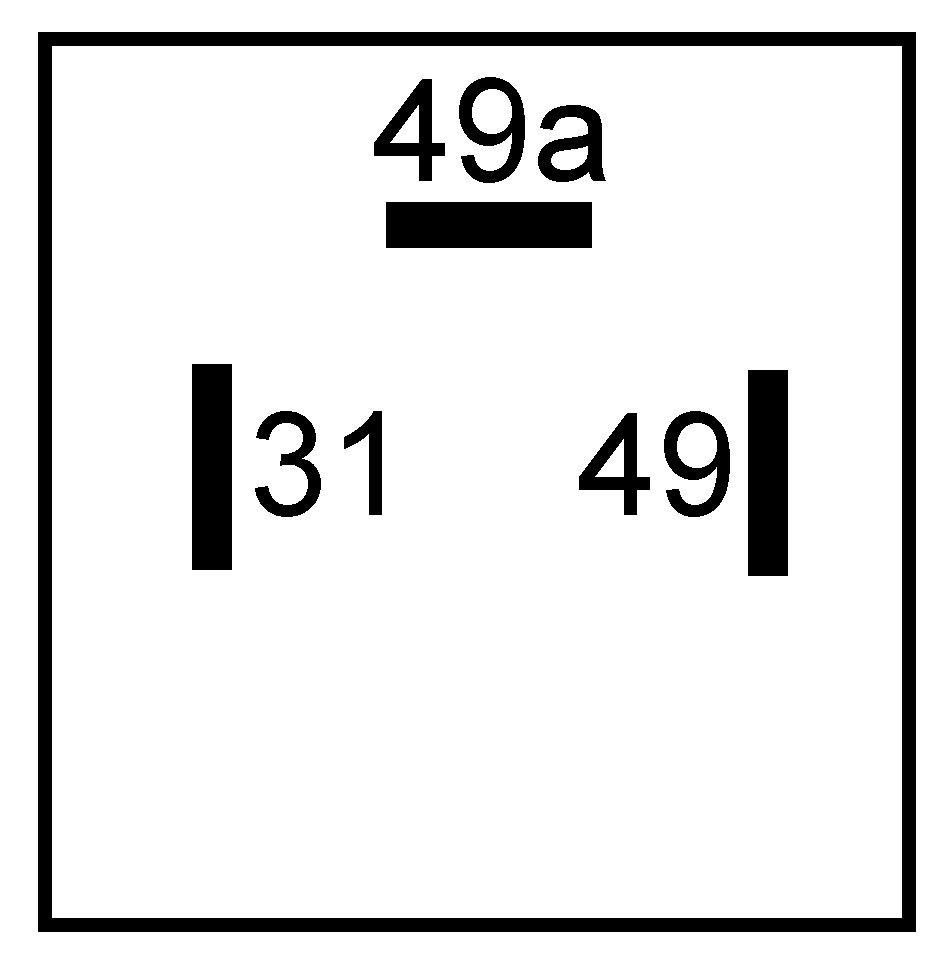

Connections as follows:
- 31 - Earth
- 49 - 6V input
- 49a - Flashing feed to indicator switch
Suitable relay sockets are 140301, 140303 & 140305
This will not fit into relay socket 140304
