12V Standard

Description

Metal cans with bakelite or polyester (060705) insulation. Connections via M5 studs or spade terminals. Coils are supplied with bolt-on 6.3mm male blades which can easily be removed to leave the studs available. HT connection via push-in terminal (060301, 060302 or 060303). Suitable cover 060403

Body diameter 55mm with a cap diameter of approximately 65mm. Total length approximately 150mm.

060702 (ballast coil) requires 060703, ballast resistor.

  • Standard Coil (060701) - Primary resistance 3 Ohms.
  • Ballast Coil (060702) - Primary resistance 1.5 Ohms.
  • Electronic Coil (060705) - Primary resistance 1.6 Ohms.





Options


12V ballast resistor coil
Stockcode: 060702
£18.83
exc VAT
(each)
In Stock

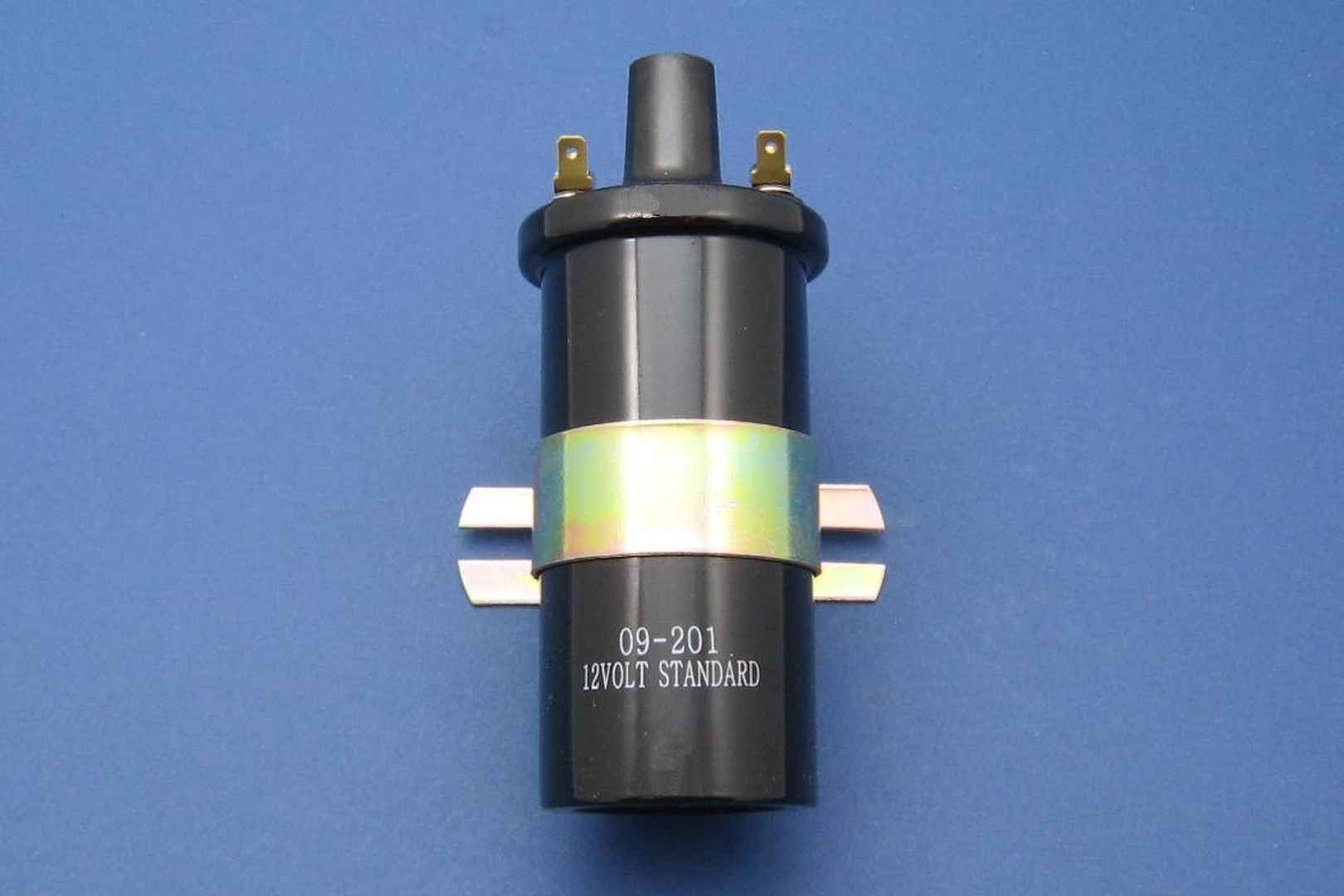

12V standard coil
Stockcode: 060701
£18.83
exc VAT
(each)
In Stock
12V electronic coil (for transistorised ign. systems)
Stockcode: 060705
£20.35
exc VAT
(each)
In Stock
