12V LED Electronic 3 terminal with earth
Description

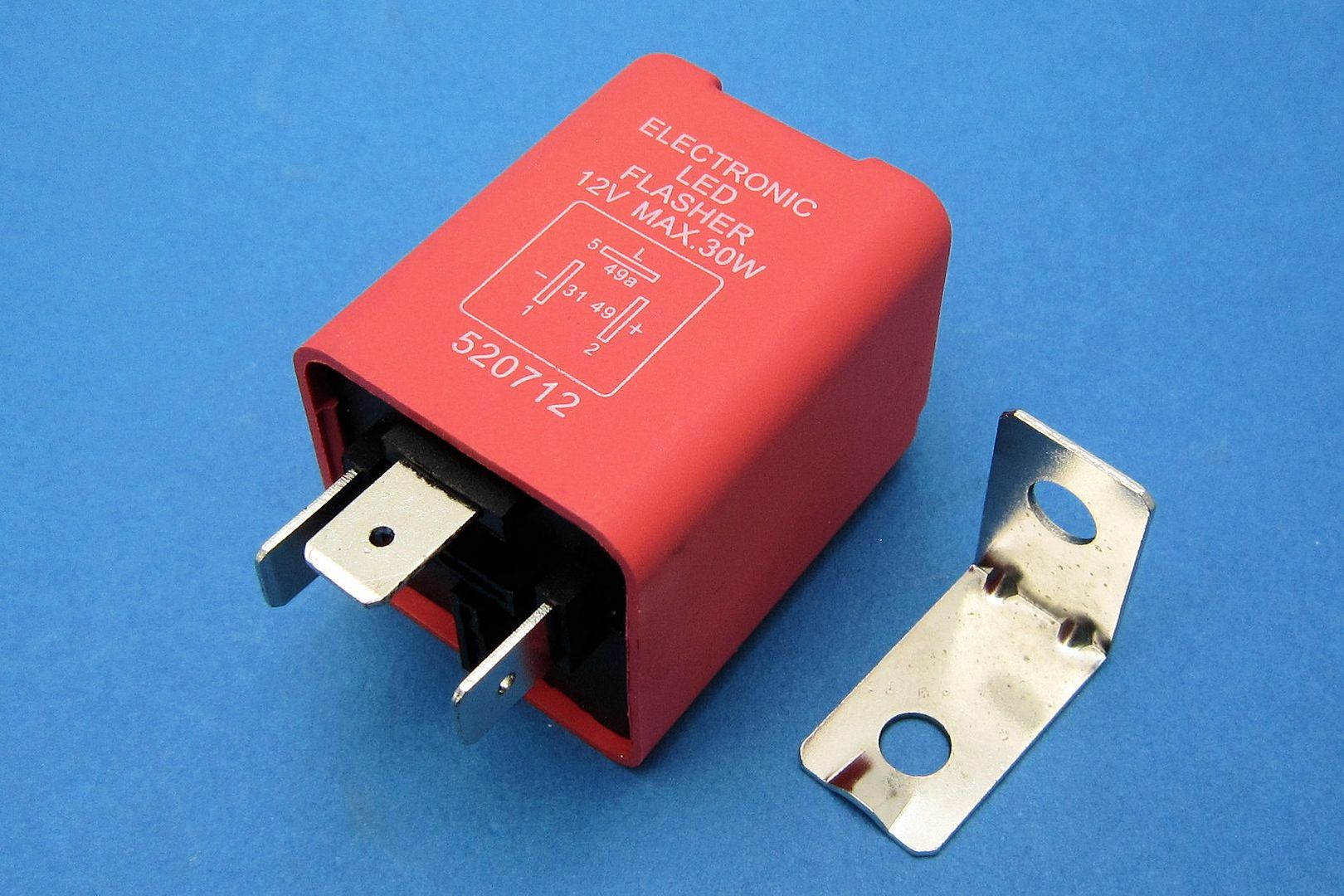

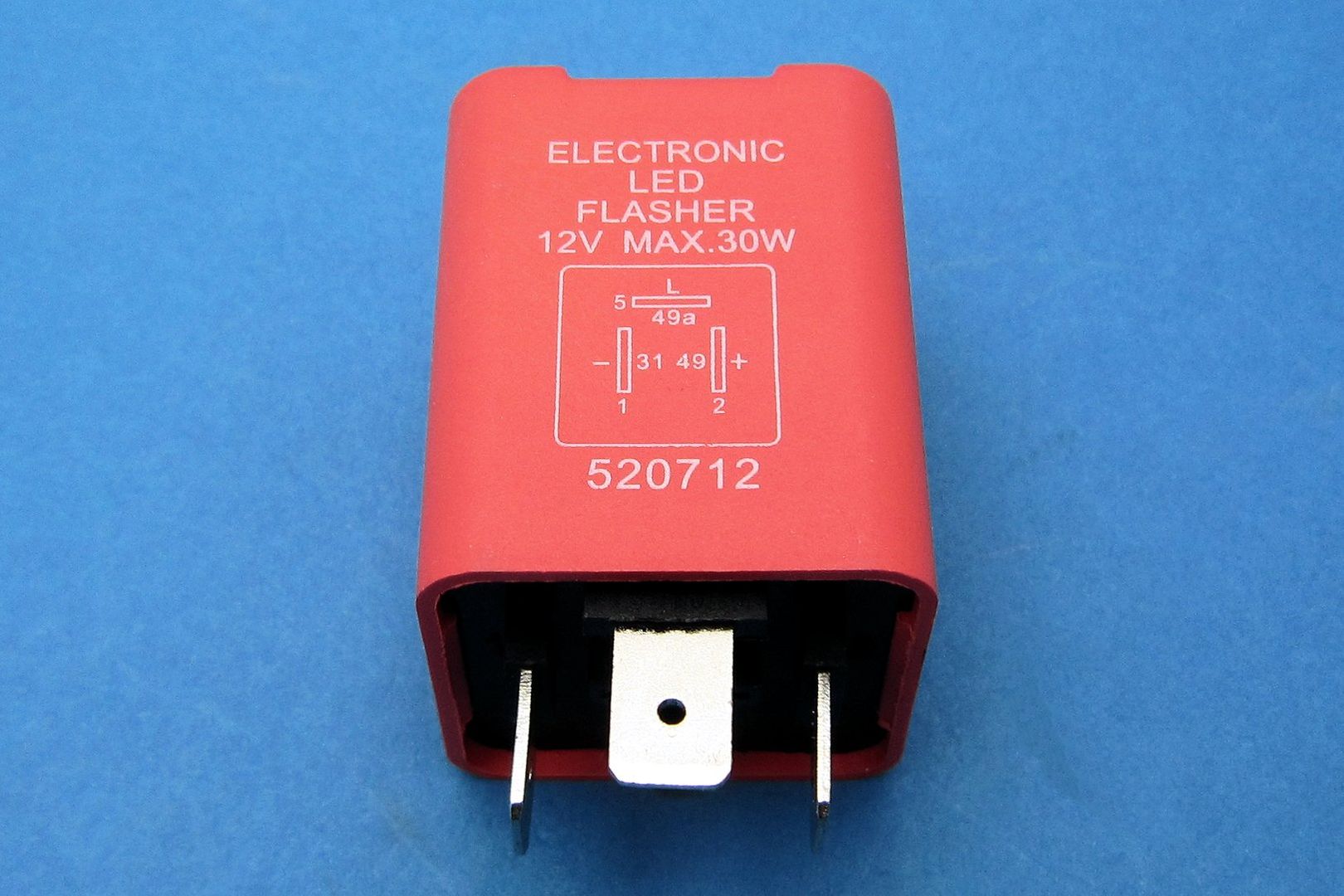

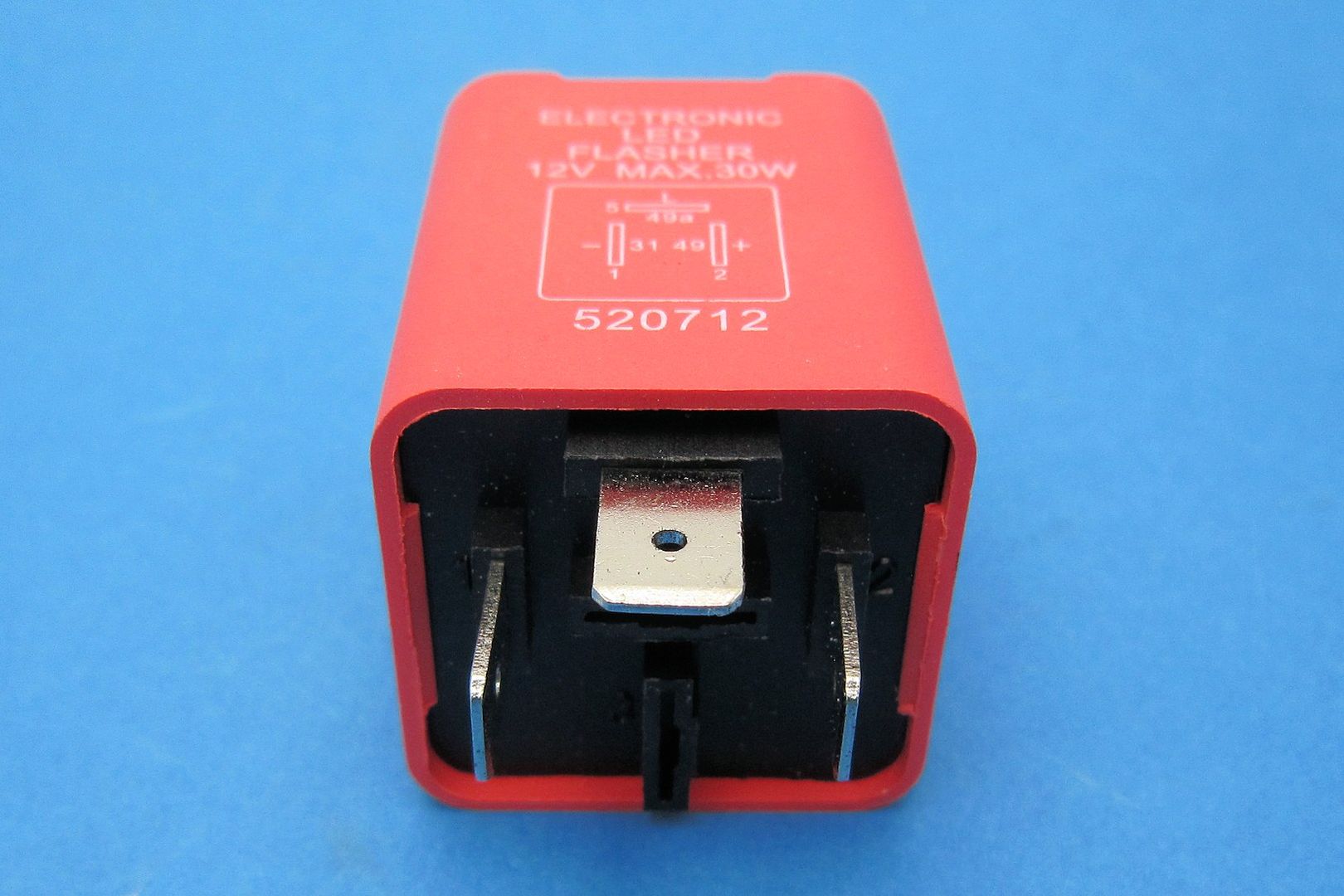

Electronic LED flasher unit having 3 terminals (one of which an earth connection). Connections via 6.3mm blade terminals. For use on negative earth vehicles only. Will operate LED indicator lights and conventional bulbs or a mix of both.
Connections are:
- E Earth (31)
- B Feed in (49)
- L Flashing signal out (to indicator switch) (49a)
Suitable socket 140301 or 140303
This relay is the same as 140112 except has a lower maximum wattage.
